X212
X212

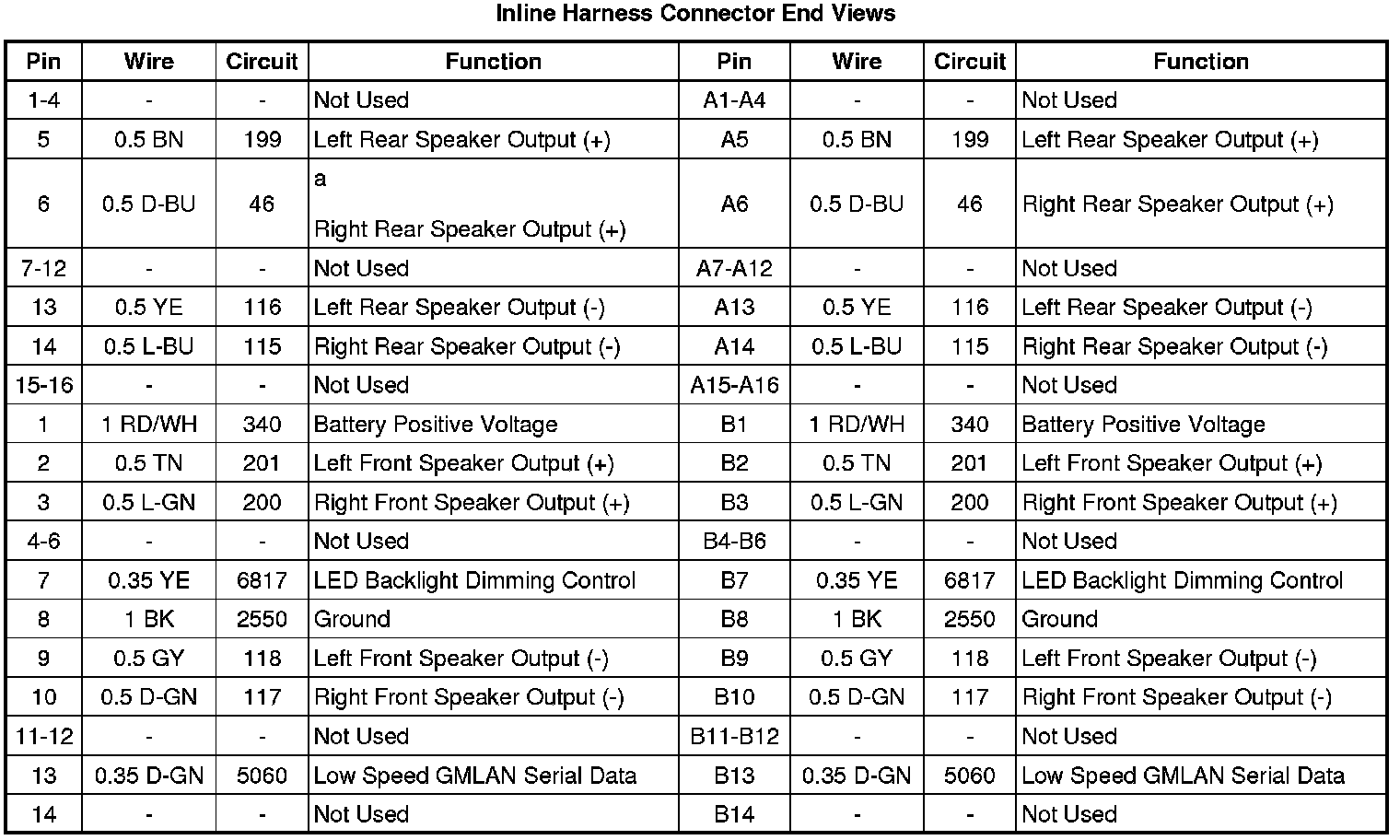

Inline Harness Connector End Views

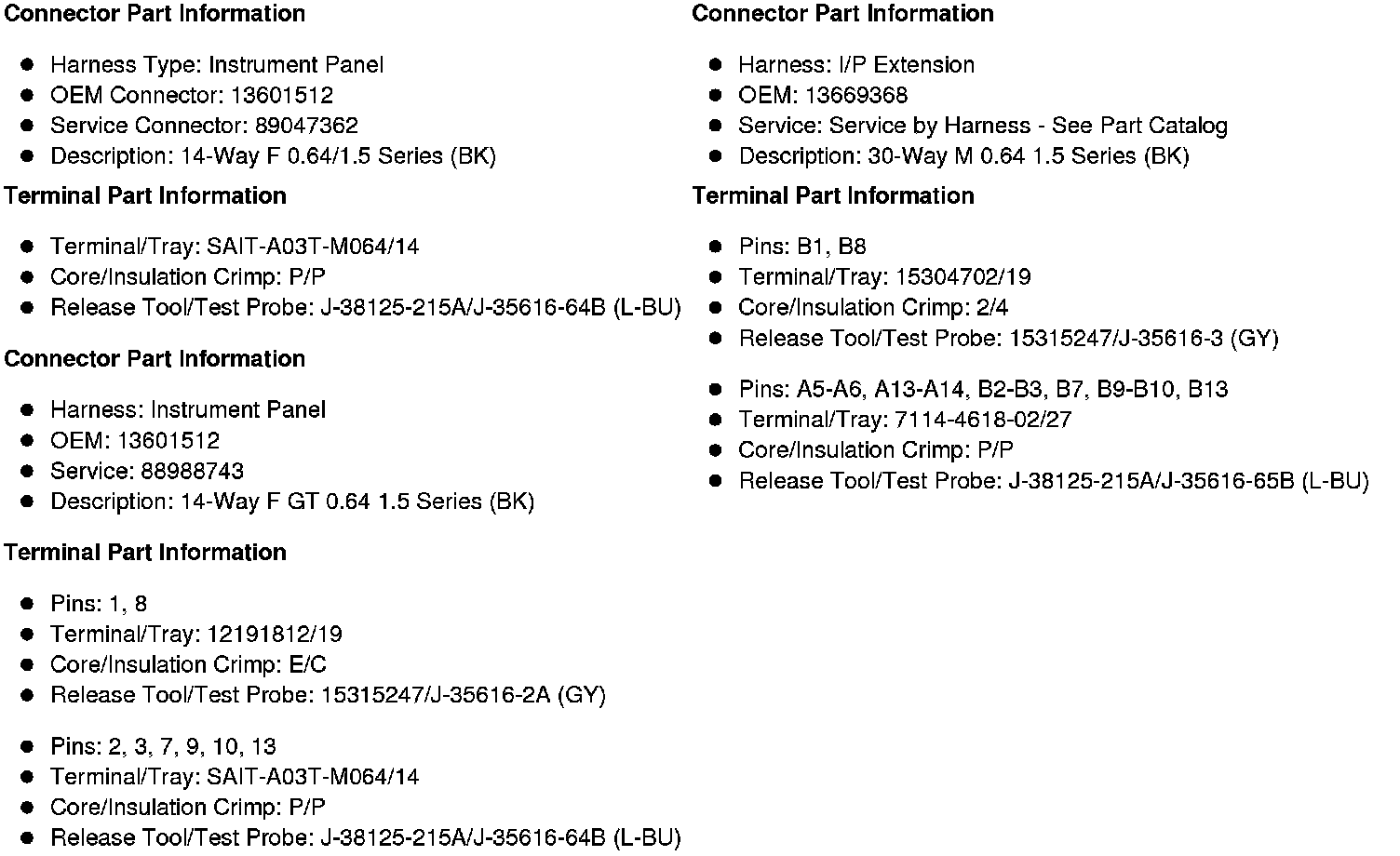

X212 Instrument Panel Harness to I/P Extension Harness (except Y91, MEX or 8S8)
