Brake Clutch Harness to Instrument Panel Harness (except TZ0)

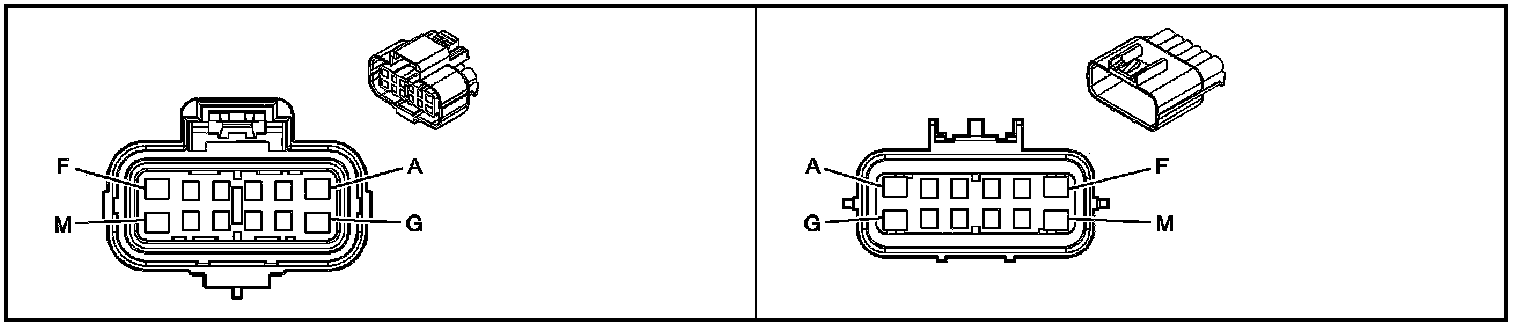

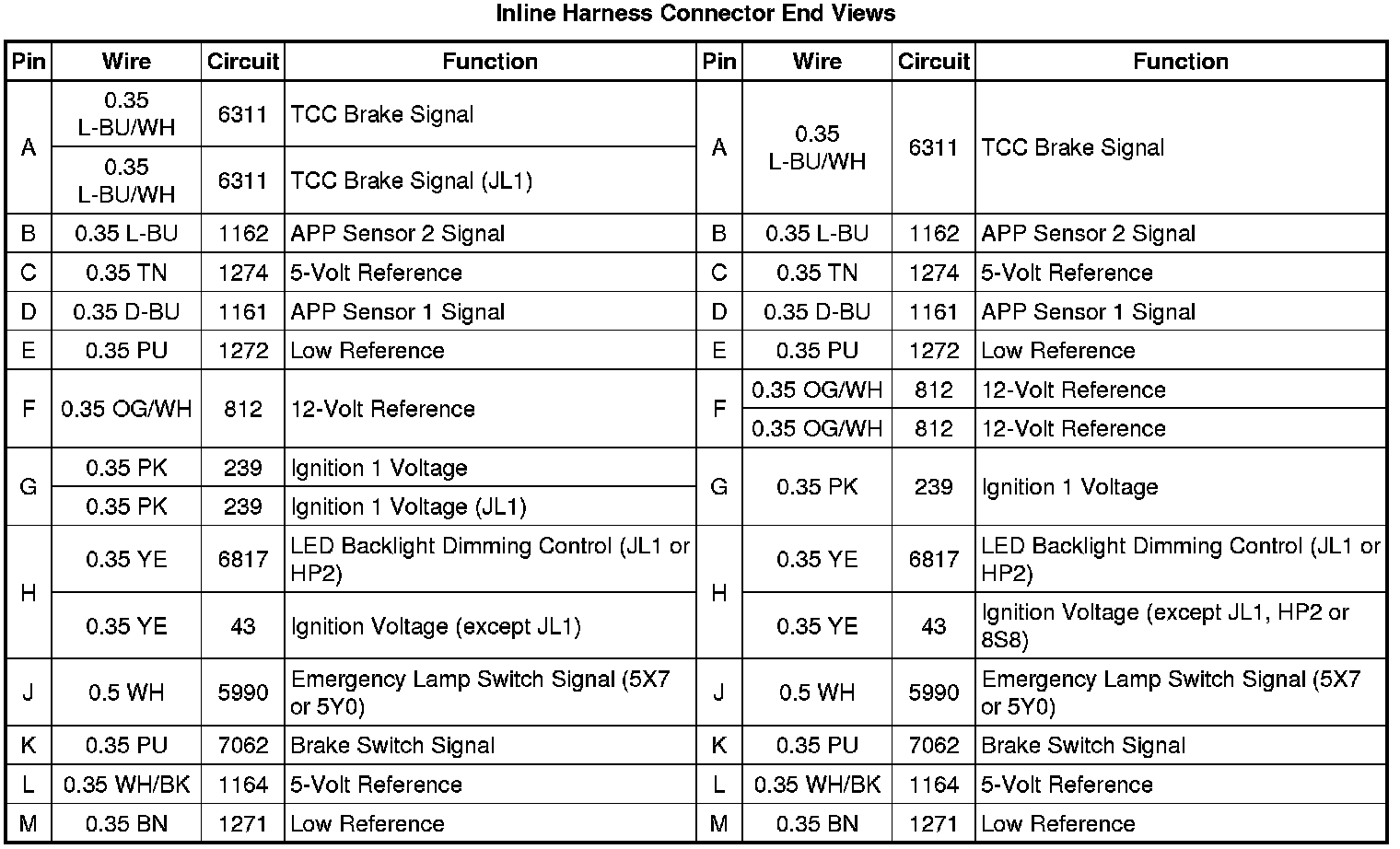

Inline Harness Connector End Views

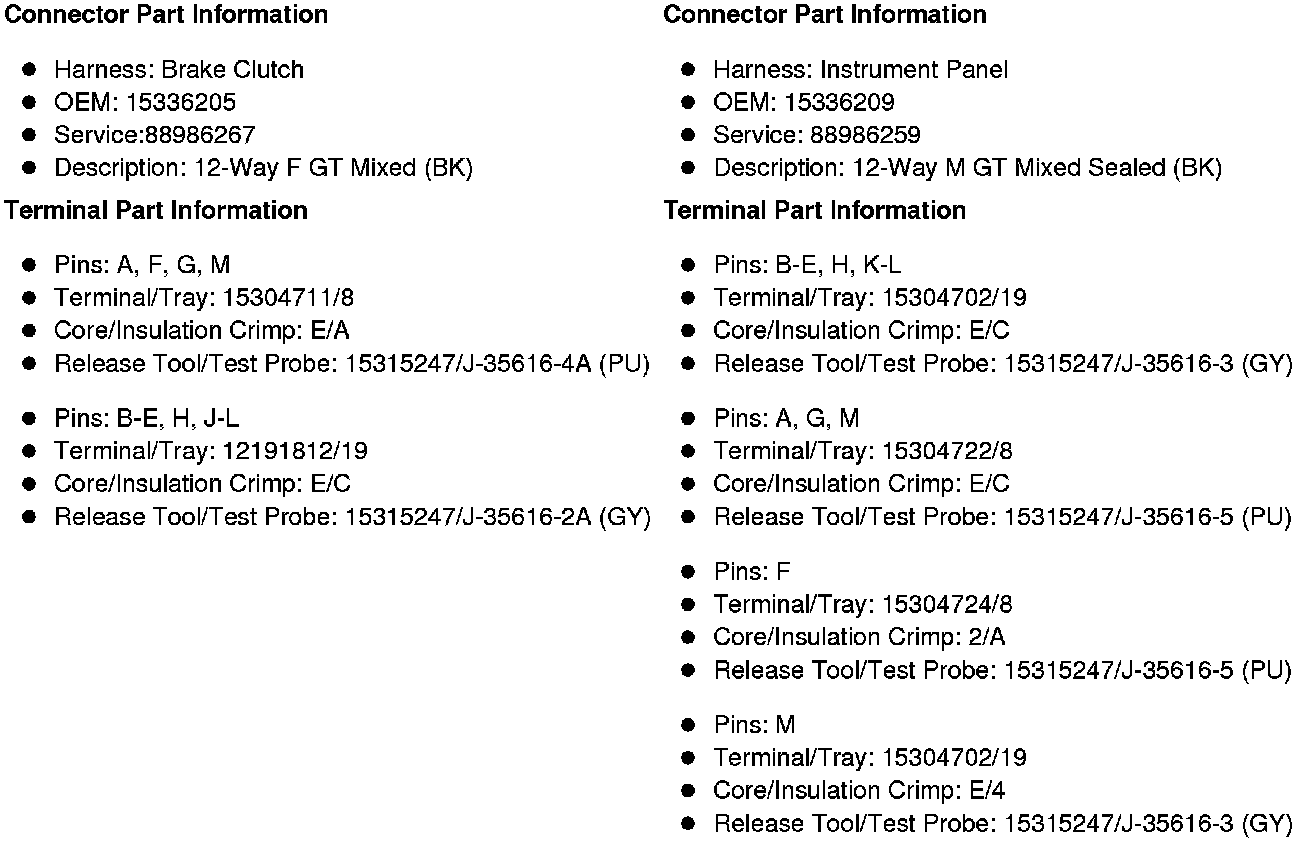

X205 Brake Clutch Harness to Instrument Panel Harness (except TZ0)
