X203

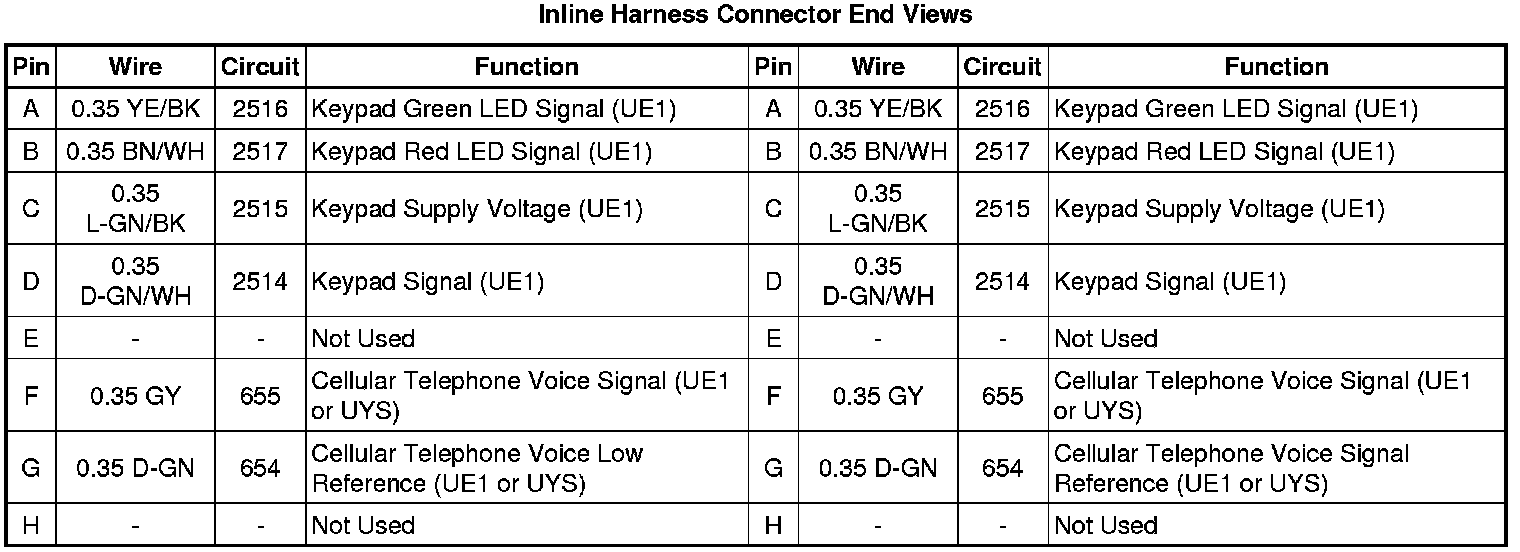

Inline Harness Connector End Views

X203 Instrument Panel Harness (Y91) or I/P Extension Harness (except Y91) to Headliner Harness (UE1, UUL or UUK)
