MW7

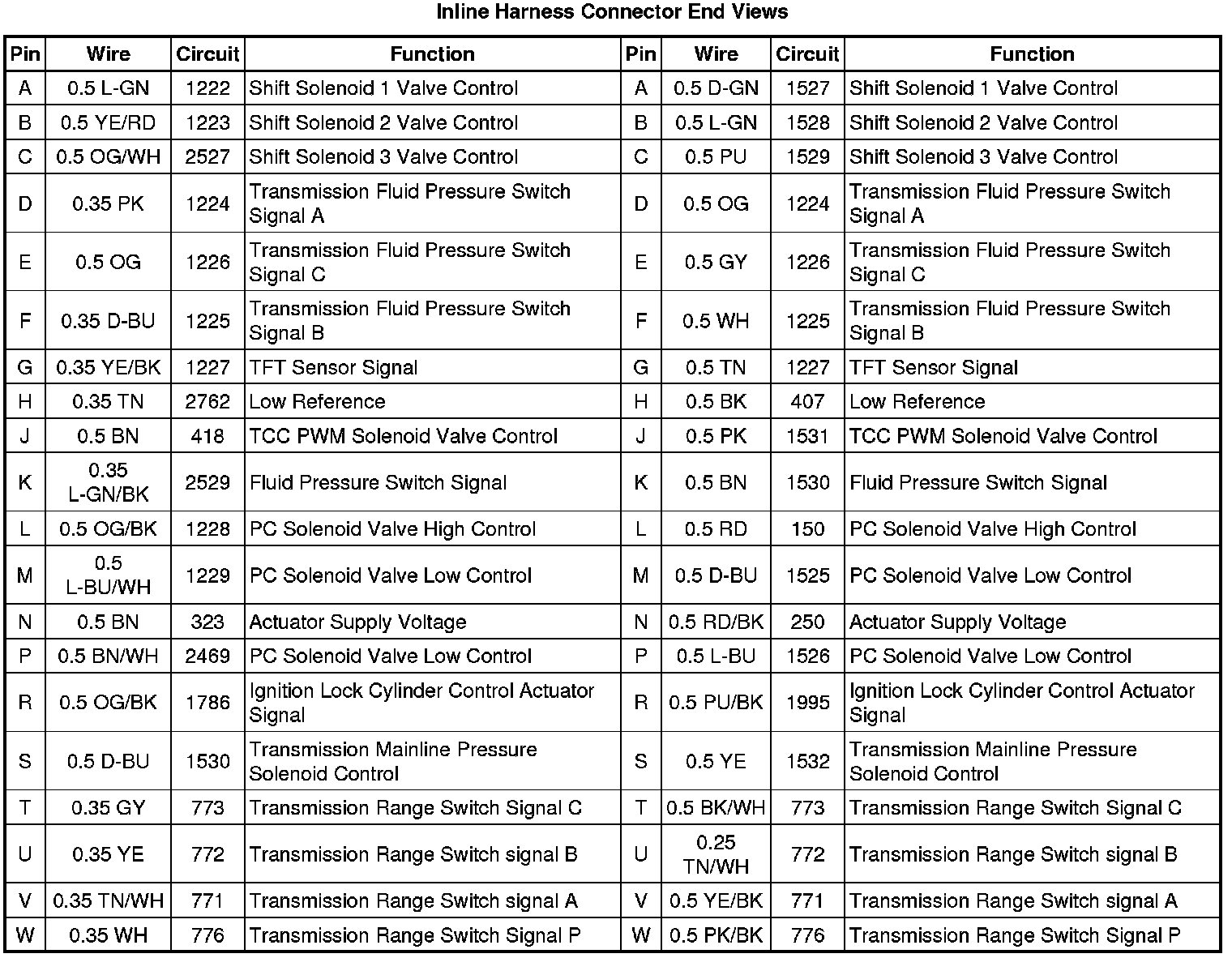

Inline Harness Connector End Views

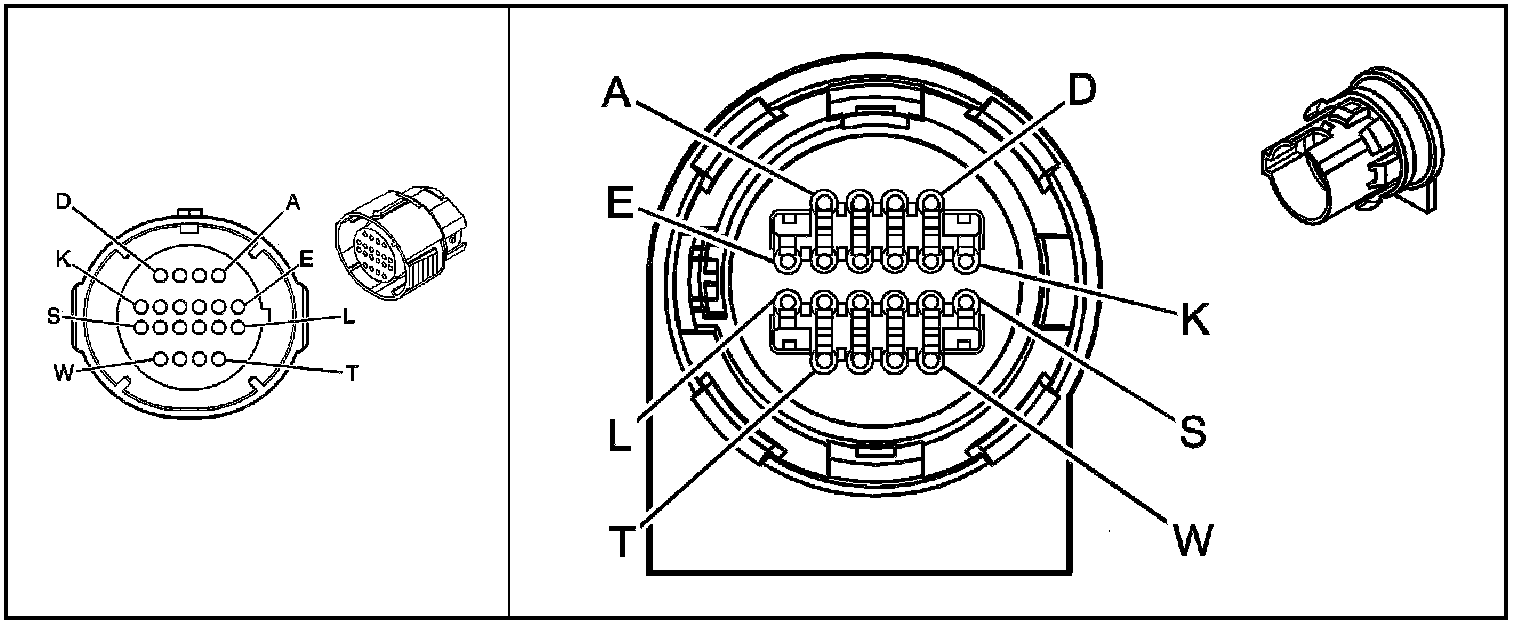

X175 Engine Chassis Harness to Transmission Internal Harness (MW7)
