X110

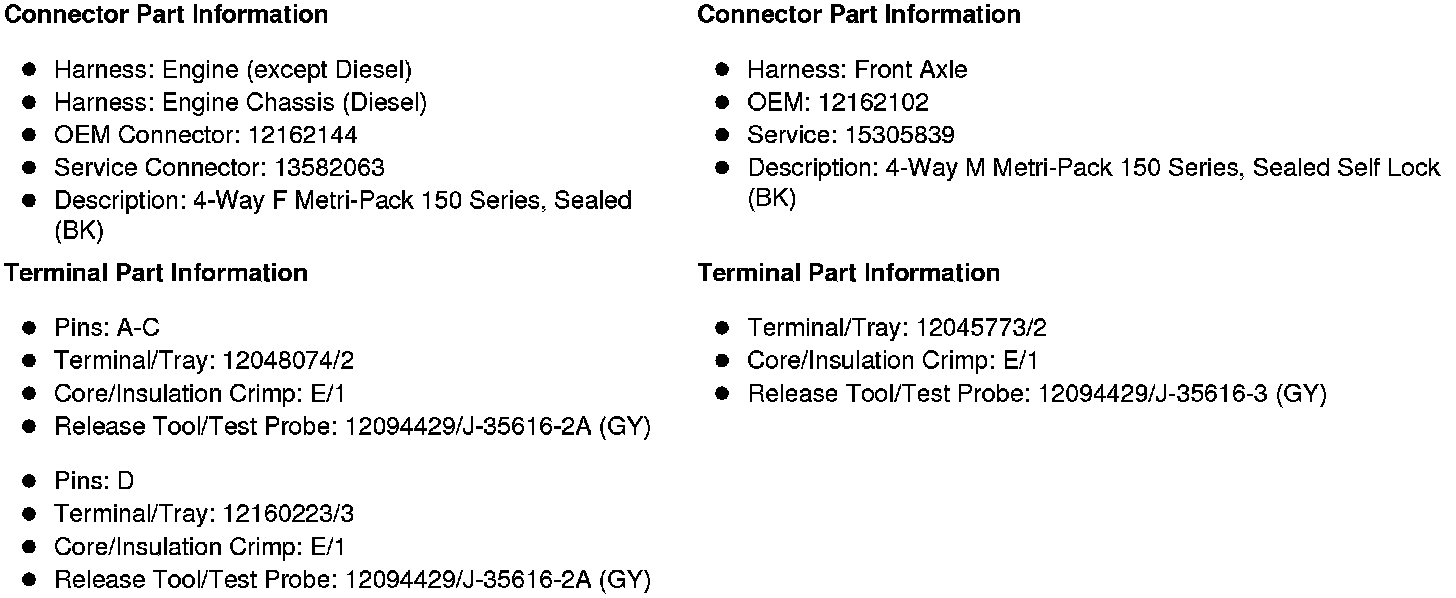

Inline Harness Connector End Views

X110 Engine Harness (except Diesel) or Engine Chassis Harness (Diesel) to Front Axle Harness (NQF, NQG or NQH)
