Window Switch - Driver X1 (A31 without AN3 or DL3)
Window Switch - Driver X1 (A31 without AN3 or DL3)

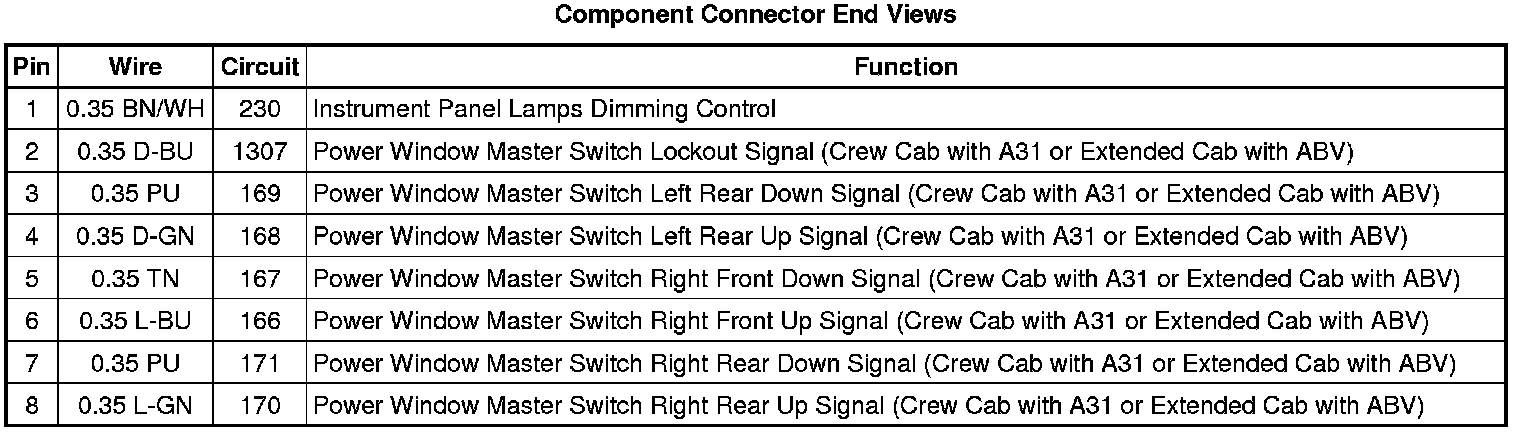

Component Connector End Views
Window Switch - Driver X1 (A31 without AN3 or DL3)
