Radio X2 (without UYS or UL5)
Radio X2 (without UYS or UL5)

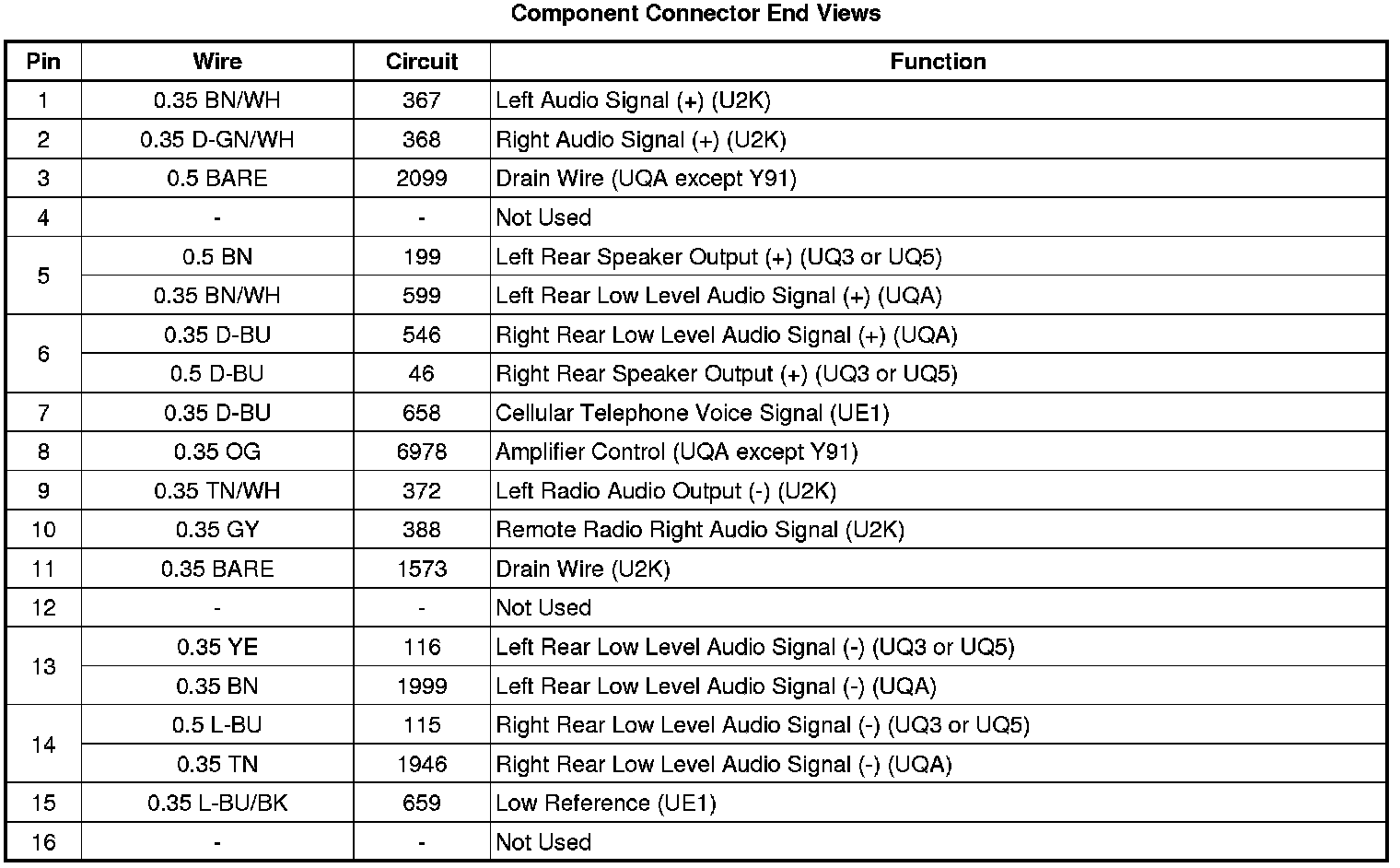

Component Connector End Views
Radio X2 (without UYS or UL5)
