Silverado 1500 4WD V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Radio X1 (UYS)
Radio X1 (UYS)

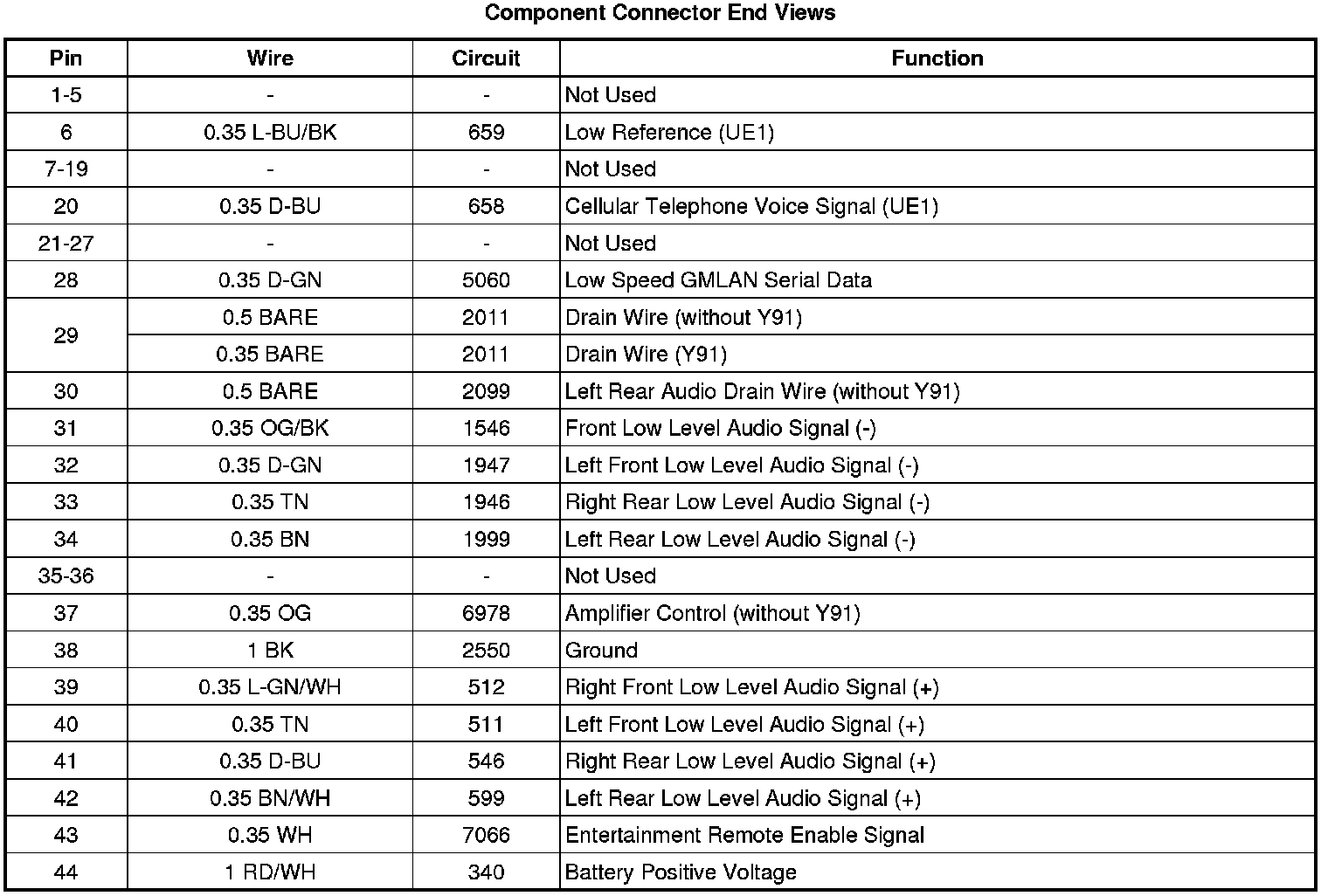

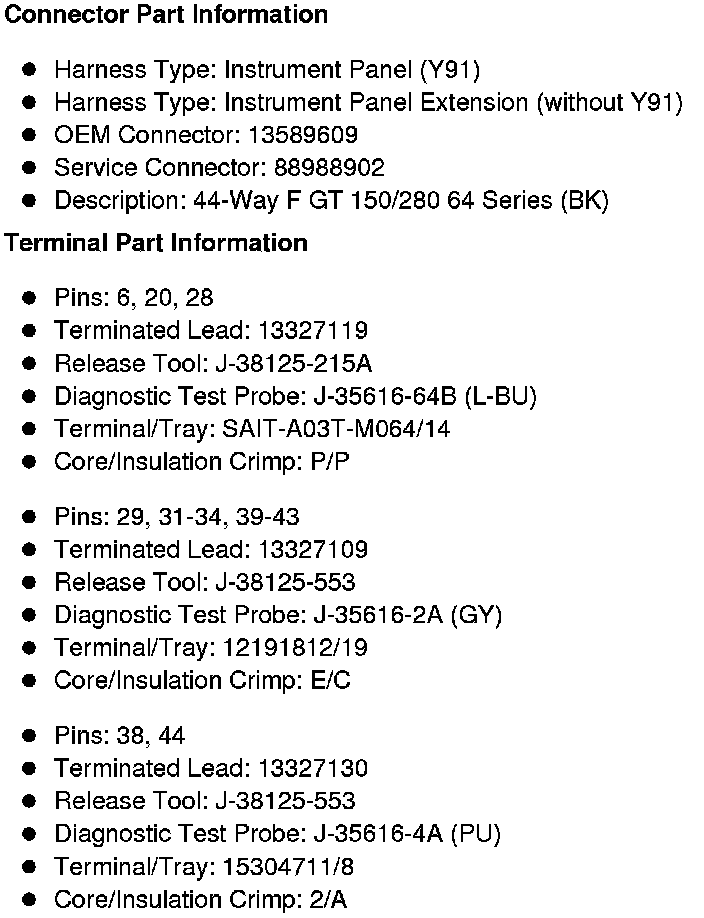

Component Connector End Views
Radio X1 (UYS)
