Instrument Panel Cluster (IPC)
Instrument Panel Cluster (IPC)

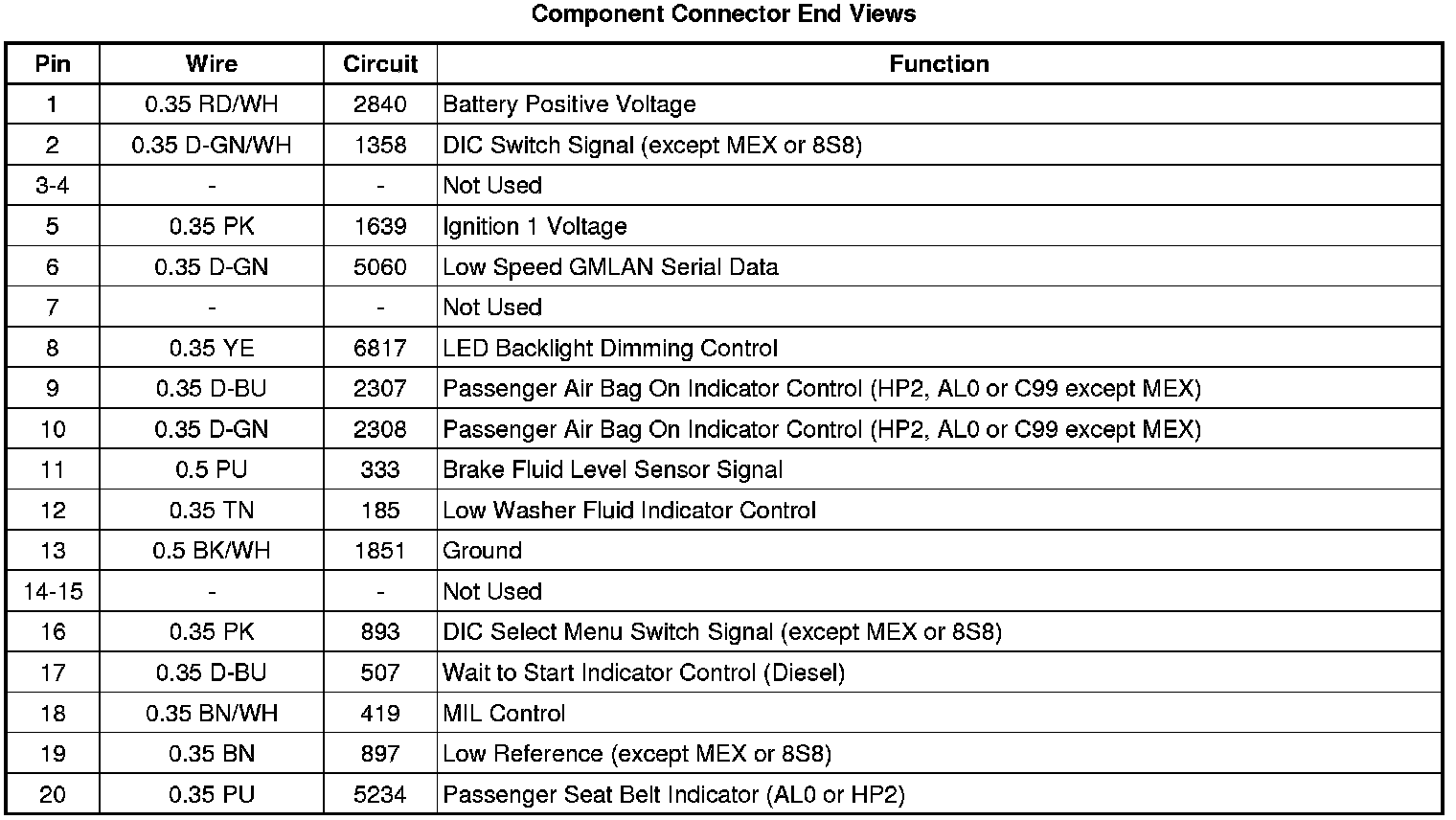

Component Connector End Views
Instrument Panel Cluster (IPC)
