Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1

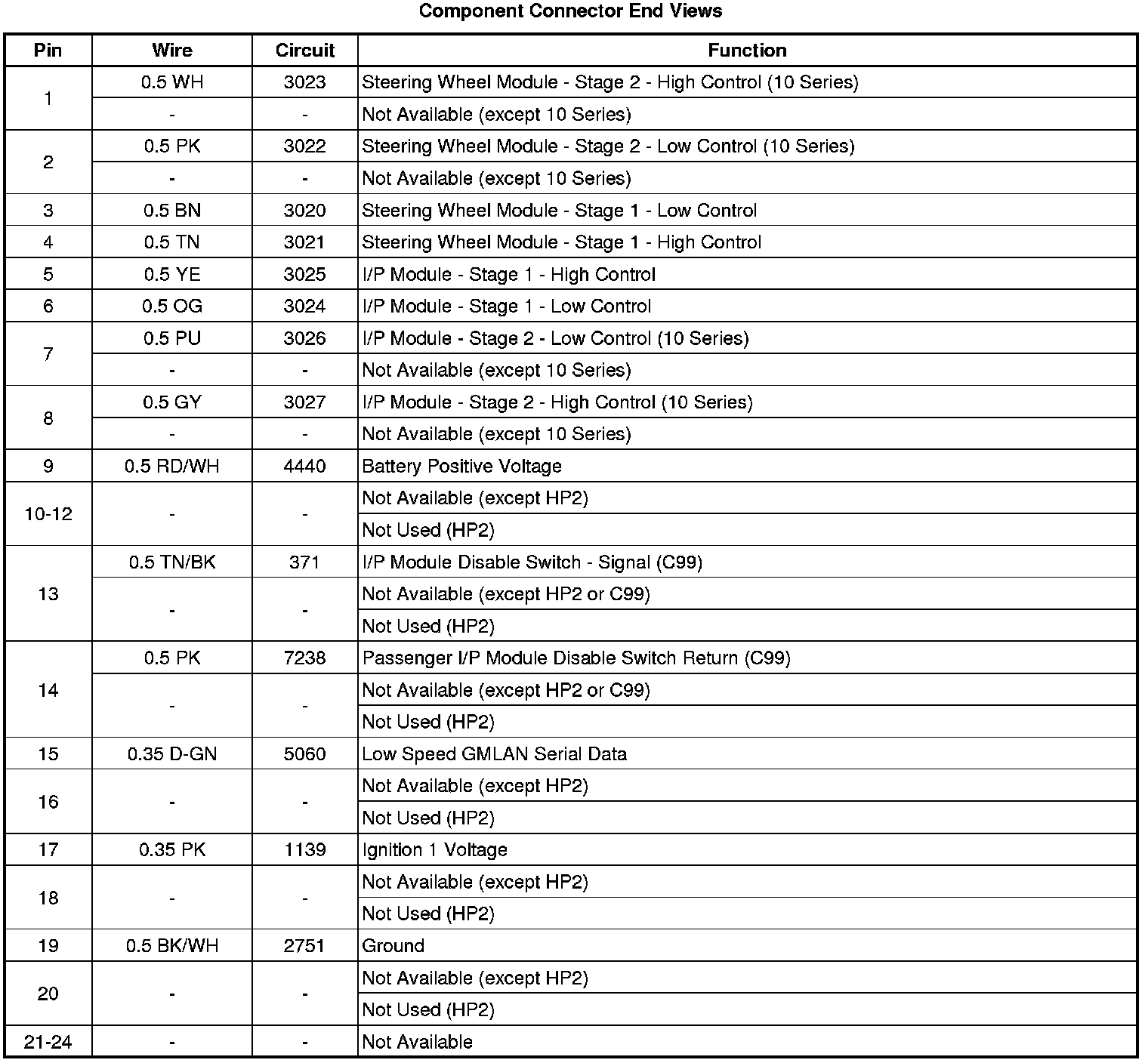

Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
