Engine Control Module (ECM) X2 (LMG, LC9, LY5, LH6, L76, or L9H without Y91)

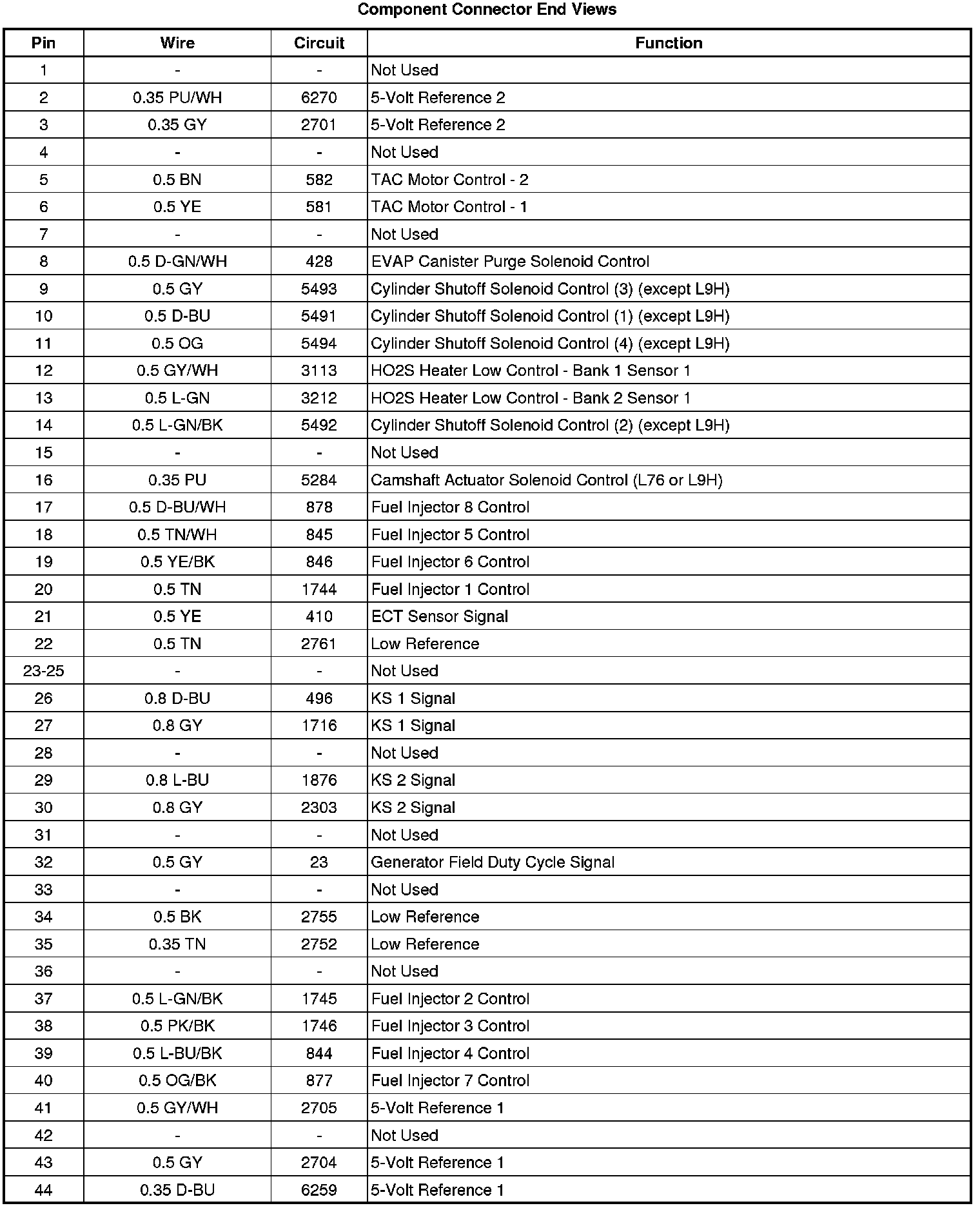

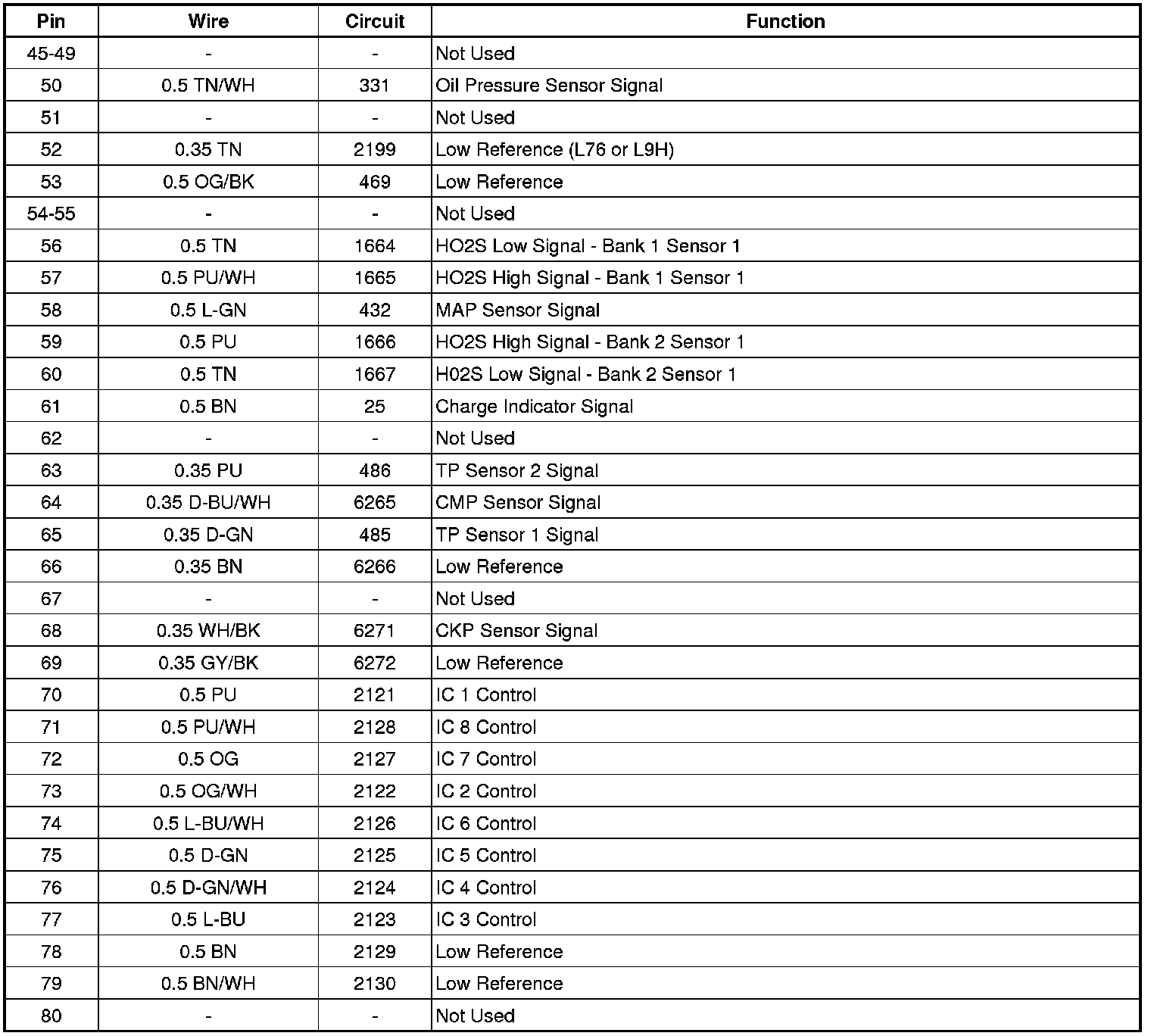

Component Connector End Views

Engine Control Module (ECM) X2 (LMG, LC9, LY5, LH6, L76, or L9H without Y91)
