Electronic Brake Control Module (EBCM) (JF3 or JF7)
Electronic Brake Control Module (EBCM) (JF3 or JF7)

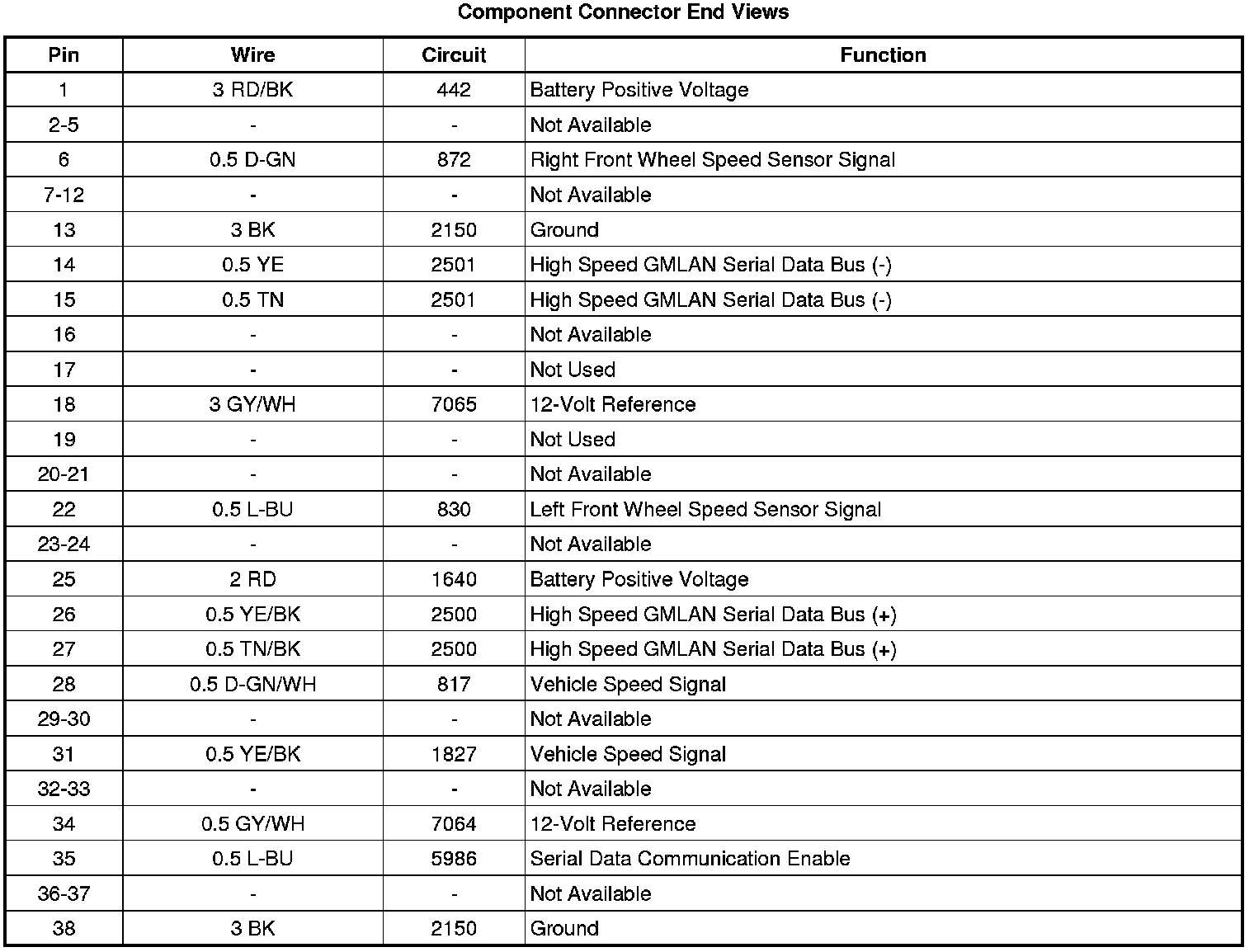

Component Connector End Views
Electronic Brake Control Module
(EBCM) (JF3 or JF7)
