Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement












2.Remove the rear bumper impact bar end caps. Refer to Rear Bumper Impact Bar End Cap Replacement .

3.Remove the bolts and nuts attaching the rear bumper impact bar to the rear bumper impact bar brace. Refer to Rear Bumper Impact Bar Brace Replacement Rear Bumper Impact Bar Brace Replacement .

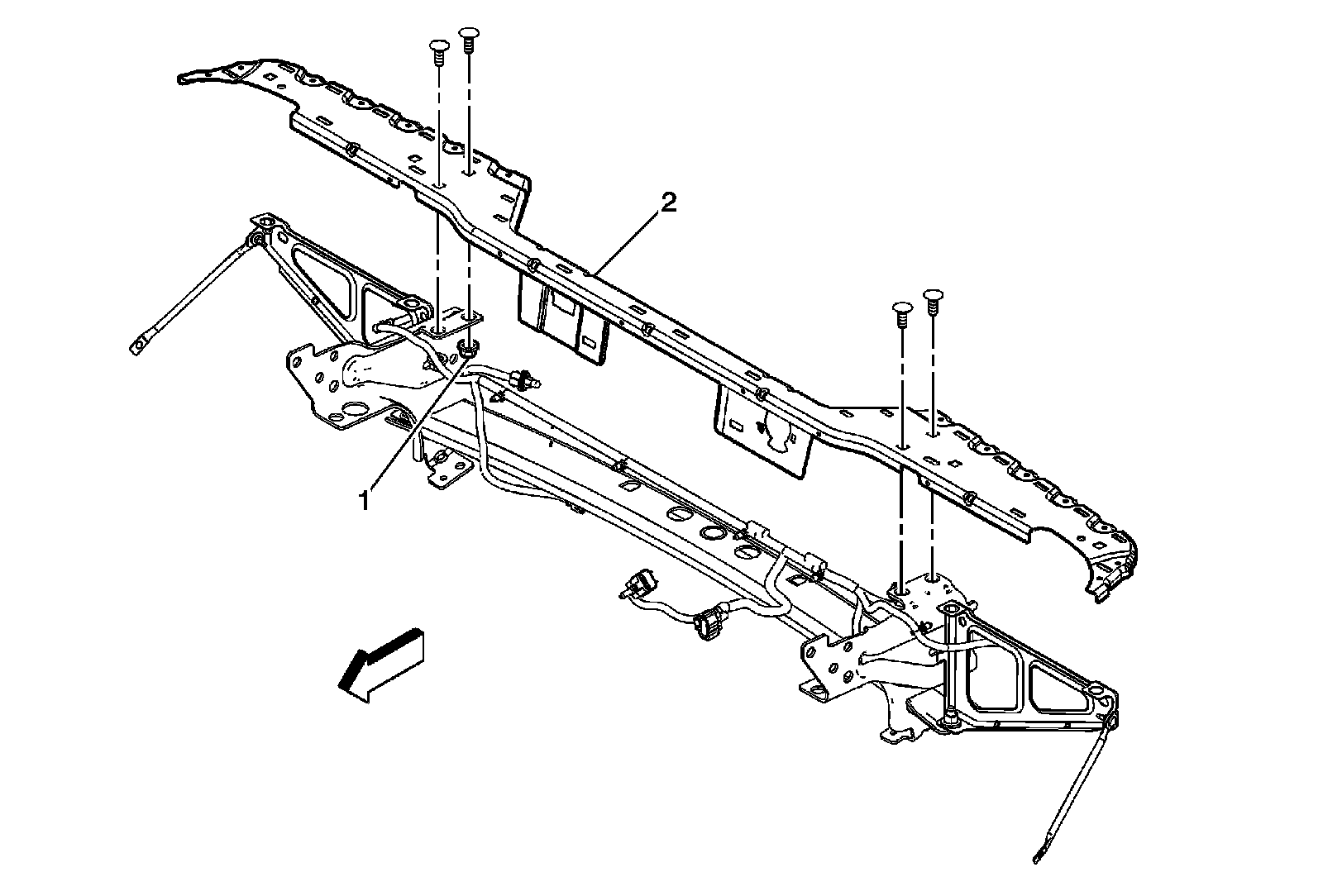

1Rear Bumper Impact Bar Bracket Nut (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 50 N �m (37 lb ft)

2Rear Bumper Impact Bar
Tip
-Disconnect any electrical connectors/harnesses as needed.

-Transfer any parts as needed.
