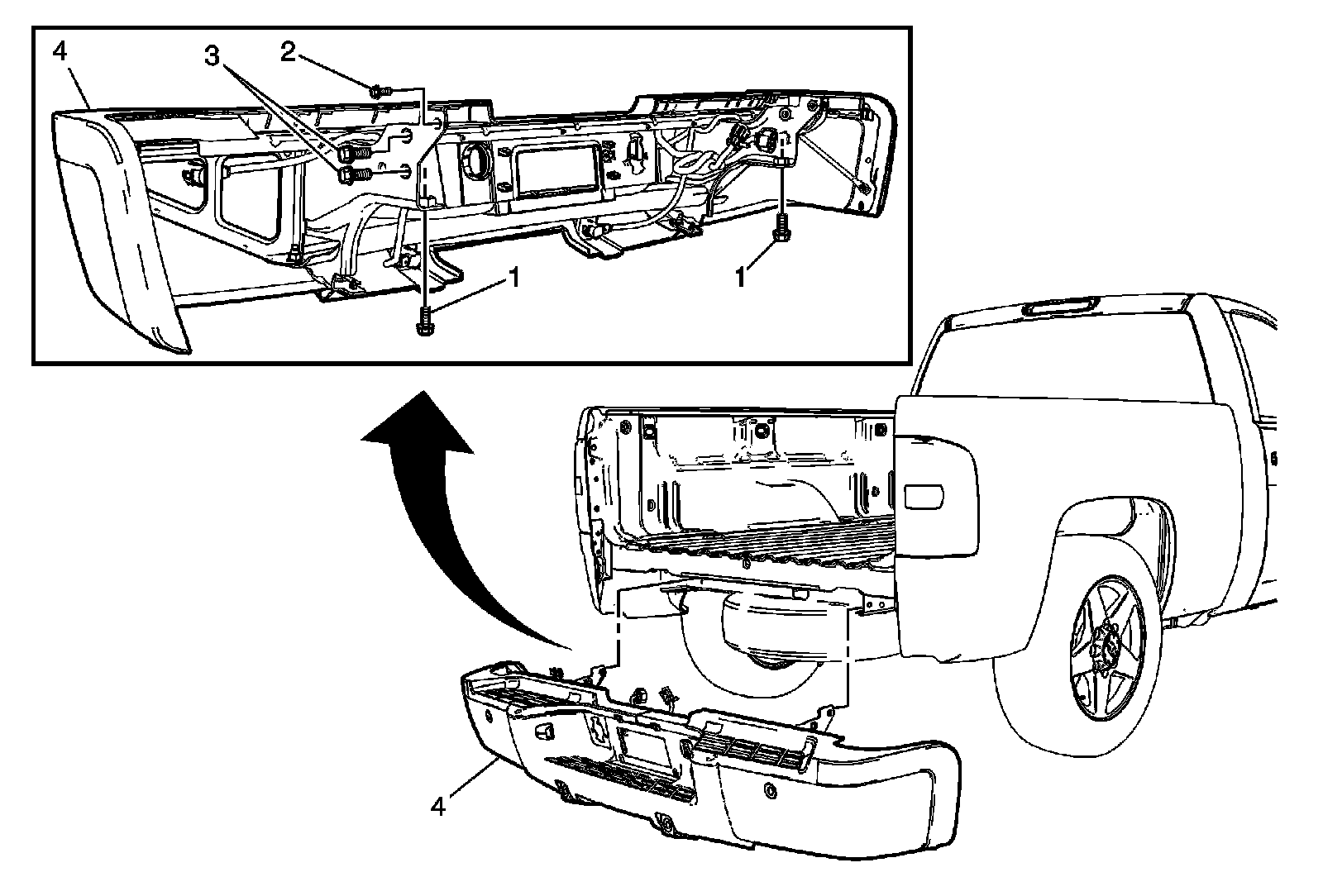

Rear Bumper Impact Bar Removal and Installation






Rear Bumper Impact Bar Removal and Installation











2.Transfer any parts as needed.
Tighten
3Rear Bumper Impact Bar Center Bolt (Qty: 4)Tighten 70 N �m (52 lb ft)

4Rear Bumper Impact Bar


Procedure


Disconnect the electrical connector.
