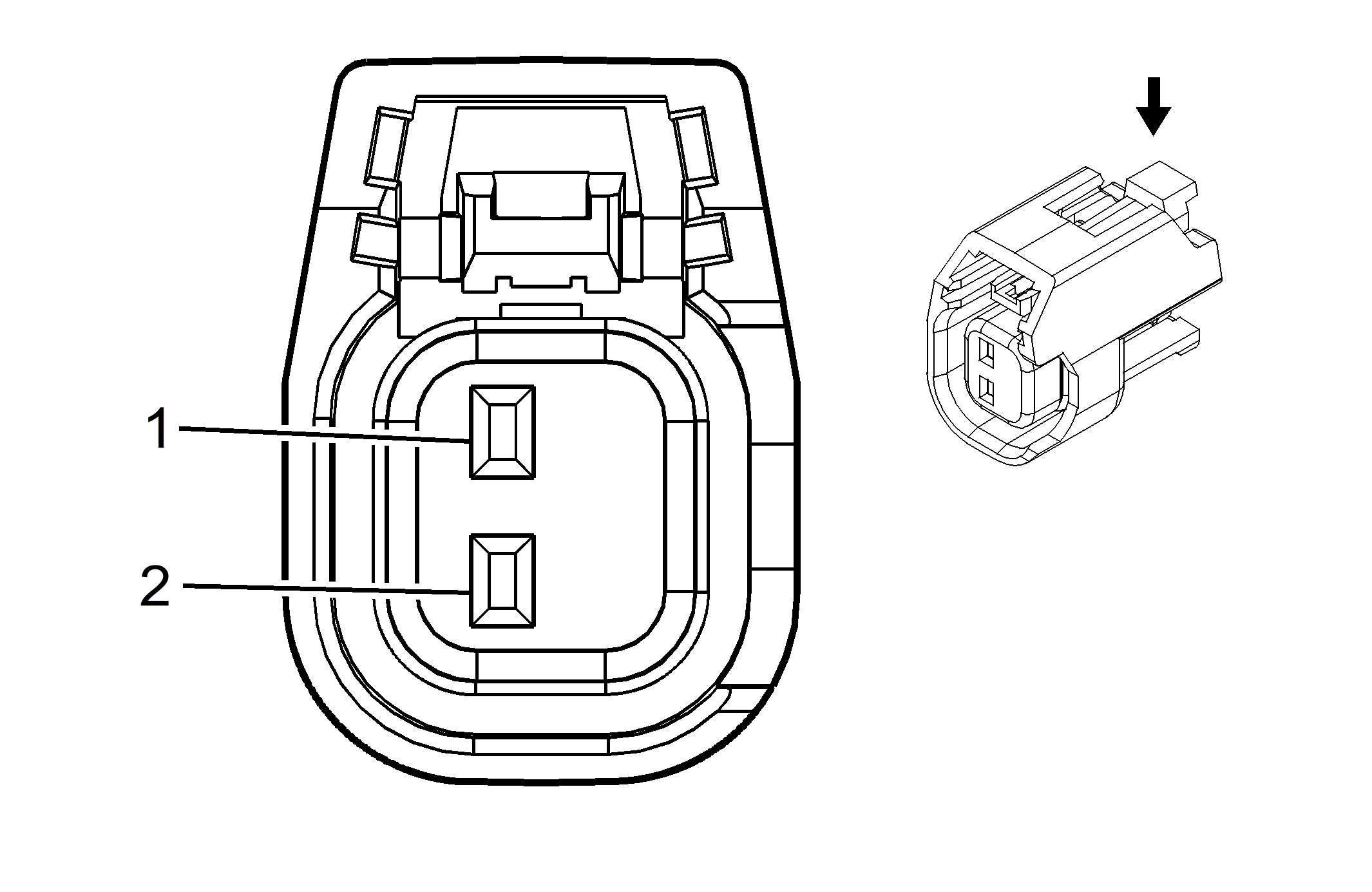

Q17A Fuel Injector 1
|
|
Connector Part Information
- Harness Type: Fuel Injector
- OEM Connector: 7283-5967-30
- Service Connector: 13584416
- Description: 2-Way F Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Pending |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
Q17A Fuel Injector 1
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1:
1 |
1:
1.0 |
1:
BN |
1:
4801 |
1:
Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 |
1:
I |
1:
- |
| 2:
2 |
2:
1.0 |
2:
BN/WH |
2:
4901 |
2:
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 |
2:
I |
2:
- |
