M8 Blower Motor
|
|

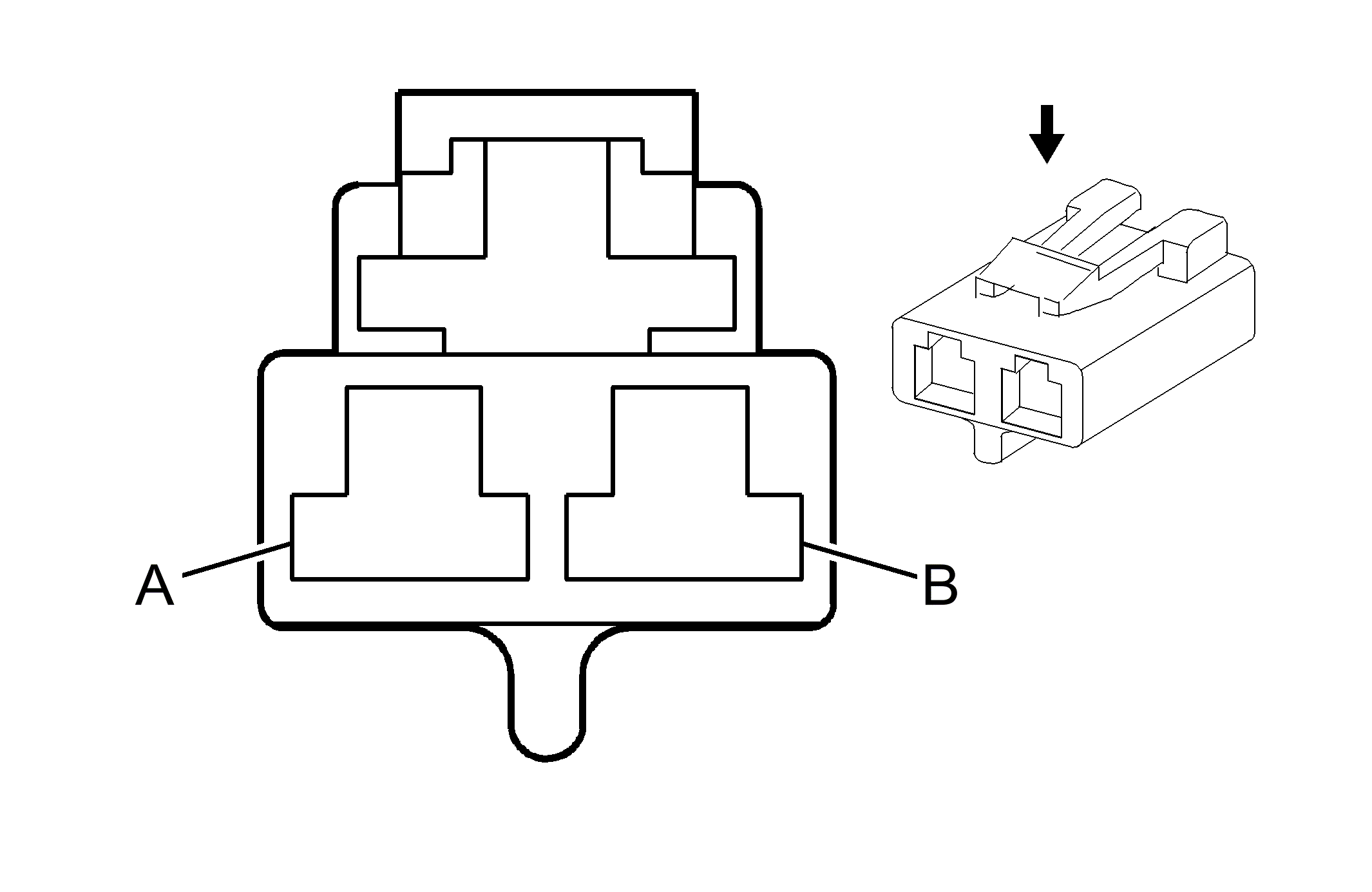

Connector Part Information
- Harness Type: Blower Motor
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
M8 Blower Motor
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A:
A |
A:
4.0 |
A:
RD |
A:
65 |
A:
Blower Motor Supply Voltage |
A:
I |
A:
- |
| B:
B |
B:
4.0 |
B:
BK |
B:
374 |
B:
Blower Motor Fan Control |
B:
I |
B:
- |
