Rear Compartment Sill Trim Plate Replacement
Rear Compartment Sill Trim Plate Replacement

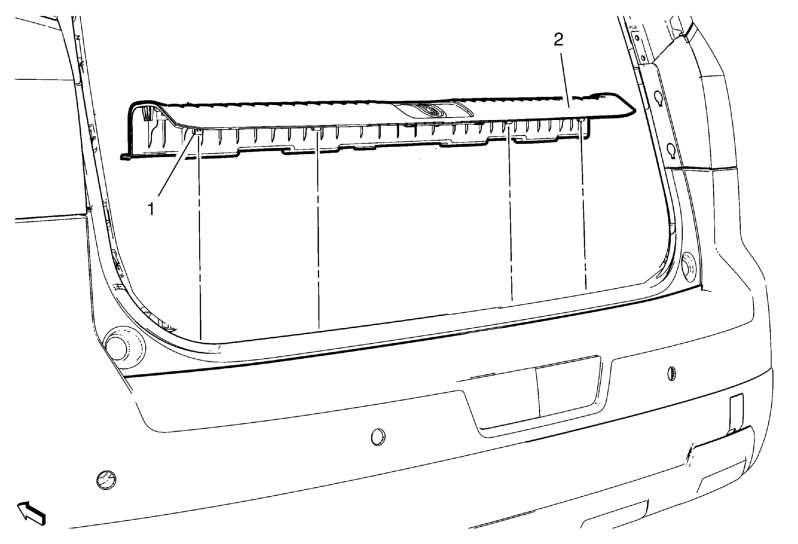

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement . |
|
| 1 | Rear Compartment Sill Trim Plate Clip (Qty: 4) |
| 2 | Rear Compartment Sill Trim Plate |
