Center Pillar Upper Garnish Molding Replacement

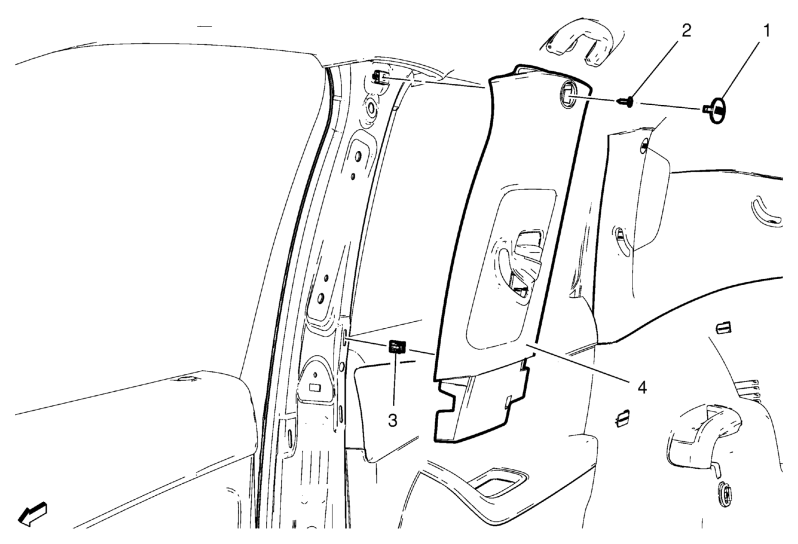

Fig 1: Center Pillar Upper Garnish Molding & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement . Remove the seat belt from the front seat. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .
1	Center Pillar Upper Garnish Molding Bolt Hole Finish Plug
2	Center Pillar Upper Garnish Molding Bolt CAUTION: Refer to Fastener Caution .
3	Center Pillar Upper Garnish Molding Clip
4	Center Pillar Upper Garnish Molding Procedure When replacing the center pillar upper garnish molding, remove the seat belt through the molding.
