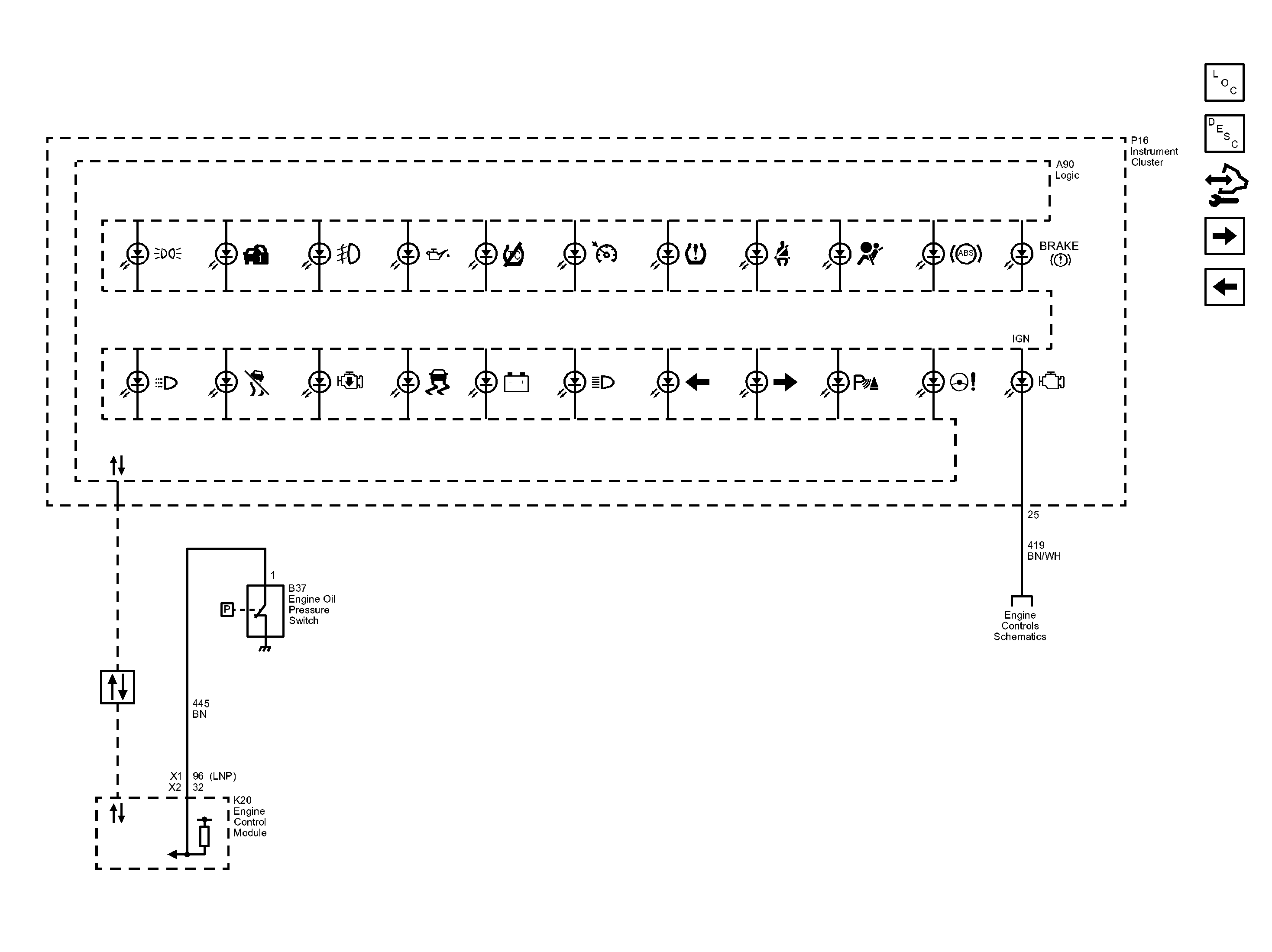

Speed, Fuel and Temperature Gauges
| Callout | Component Name |
|---|---|
| SD | Serial Data |
| Data_Communication_Schematics_REF | Data Communication Schematics |
| 445 | Oil Pressure Gauge Signal |
| 445_BN | 445 BN |
| CAV_32 | 32 |
| CONN_X2 | X2 |
| CAV_1 | 1 |
| CAV_96 | 96 |
| CONN_X1 | X1 |
| LNP | ENGINE-DIESEL, 4 CYL, L4, 2.0L, CRI, DOHC, TURBO, 120 KW, |
| 419 | Check Engine Indicator Control |
| 419_BN/WH | 419 BN/WH |
| CAV_25 | 25 |
| A90 | Logic |
| B37 | (LEA) |
| K20 | (LAF) |
| P16 | () |
| Engine_Controls_Schematics_REF | Engine Controls Schematics |
