Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement




Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

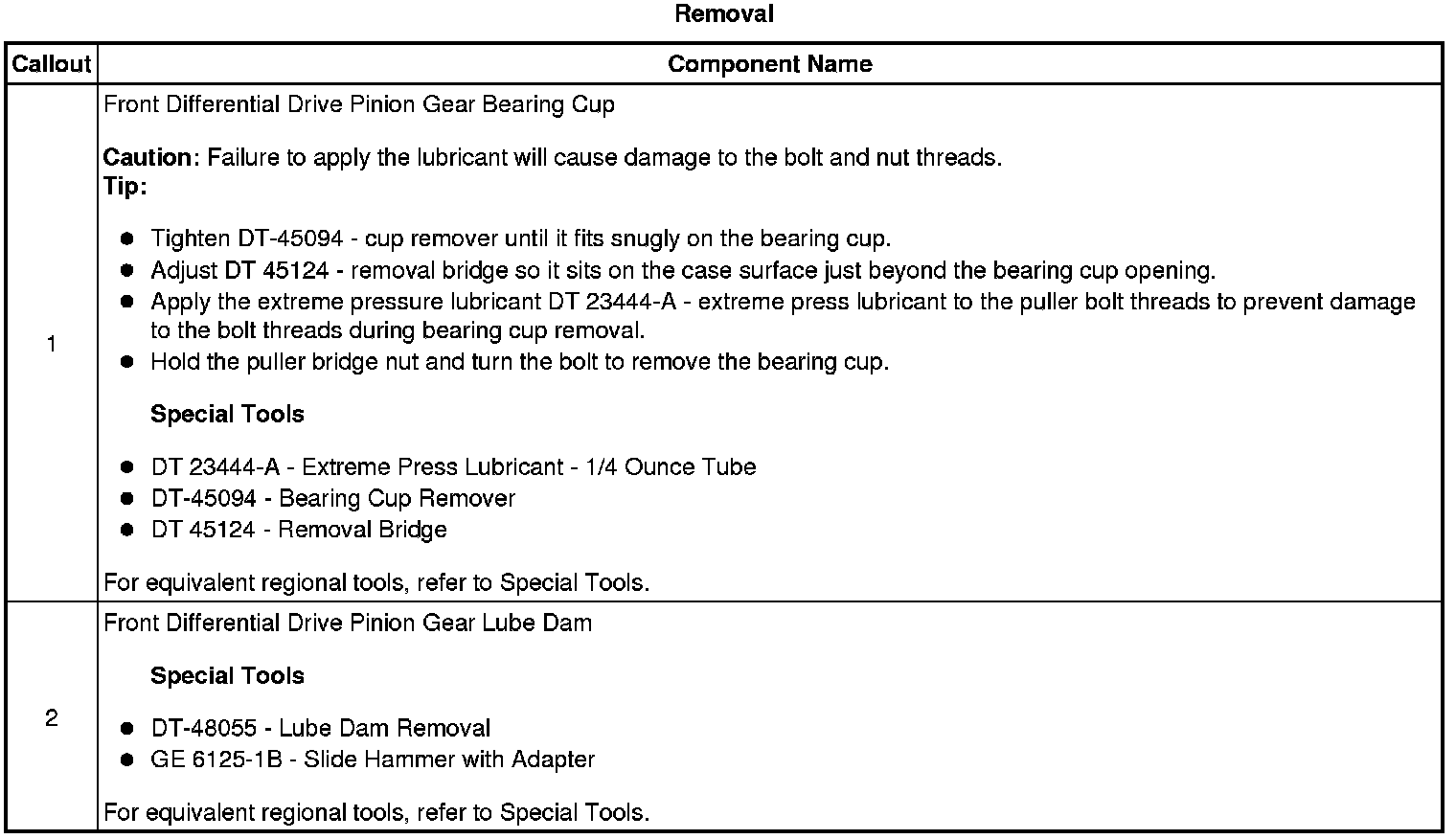

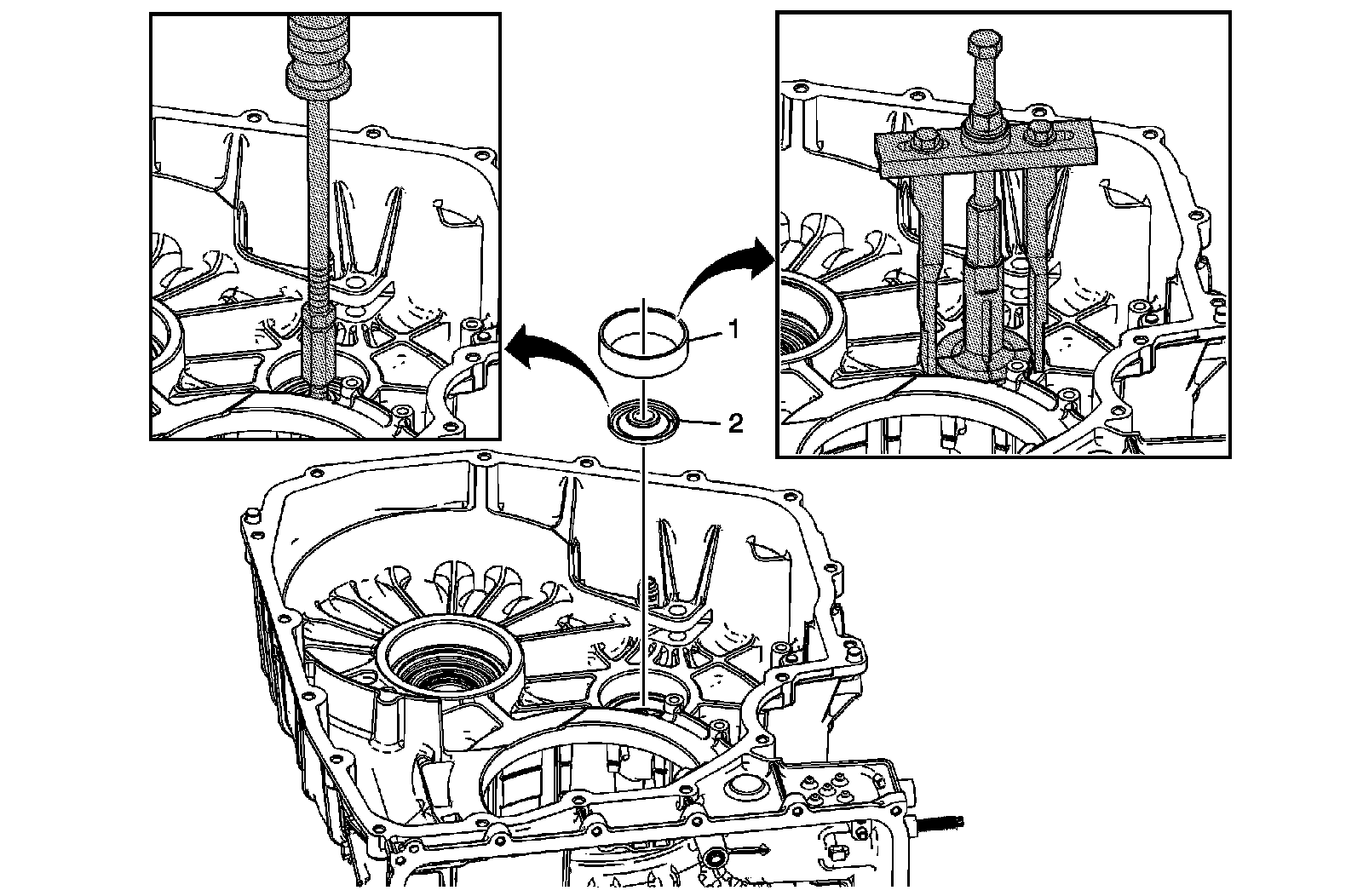

Removal

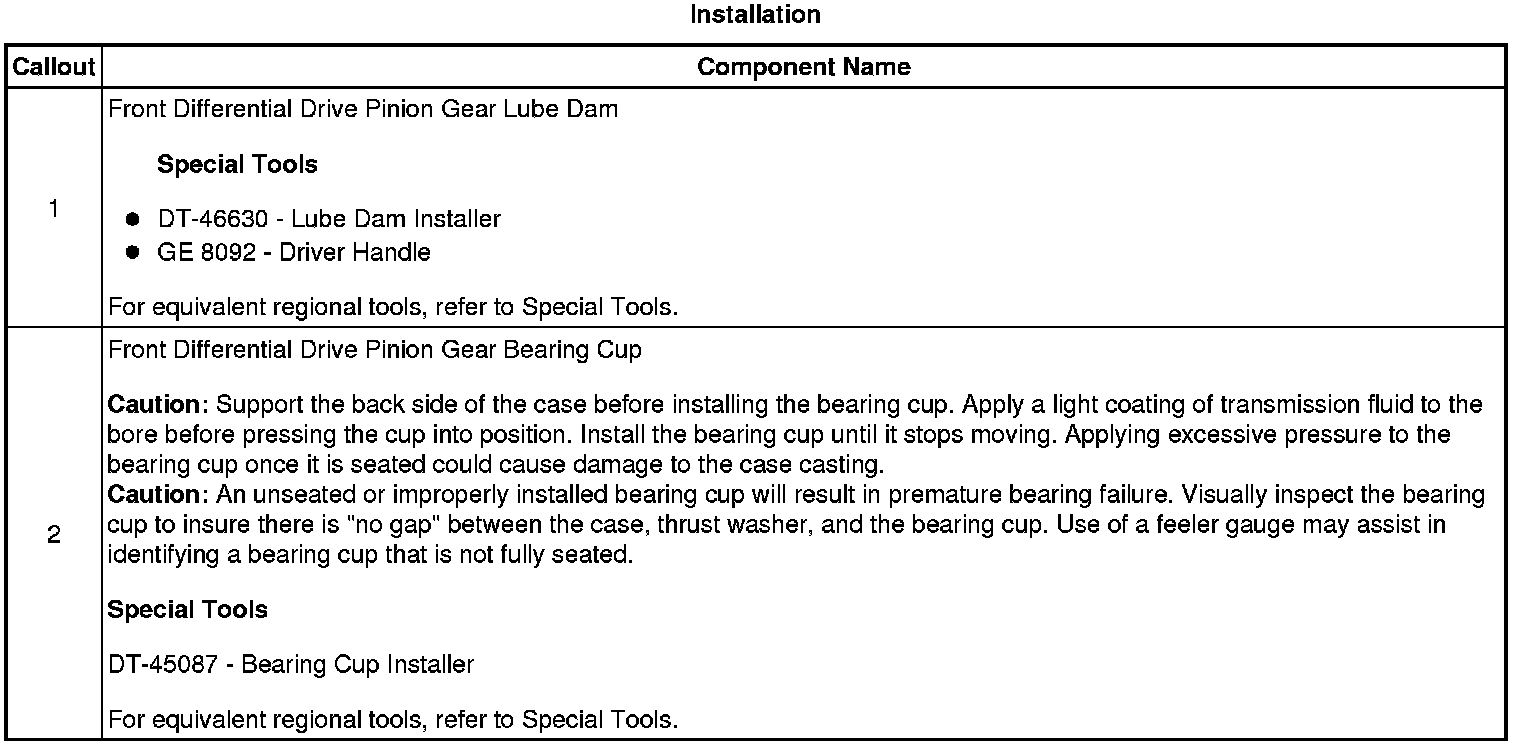

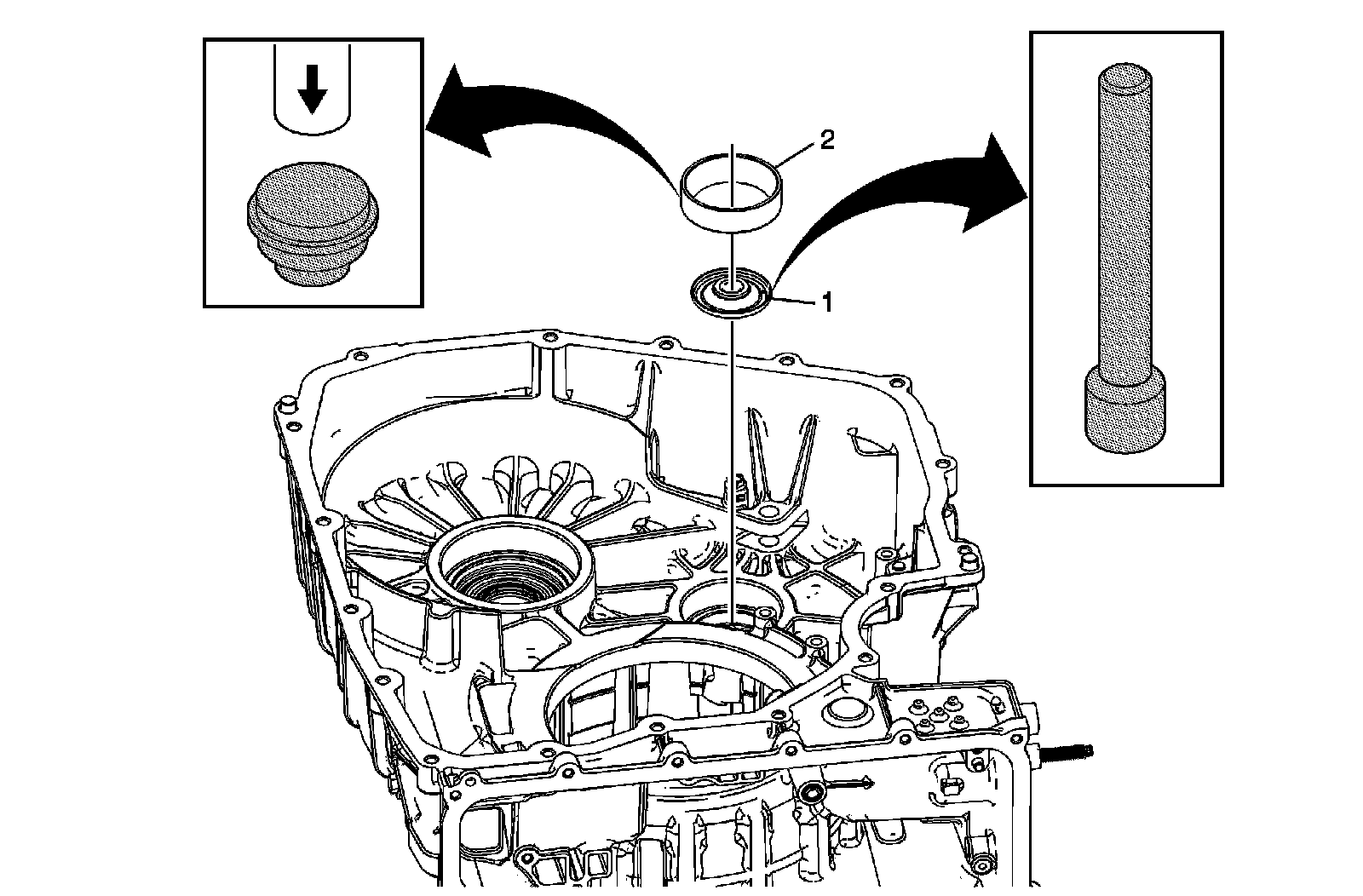

Installation
