Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side




Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side

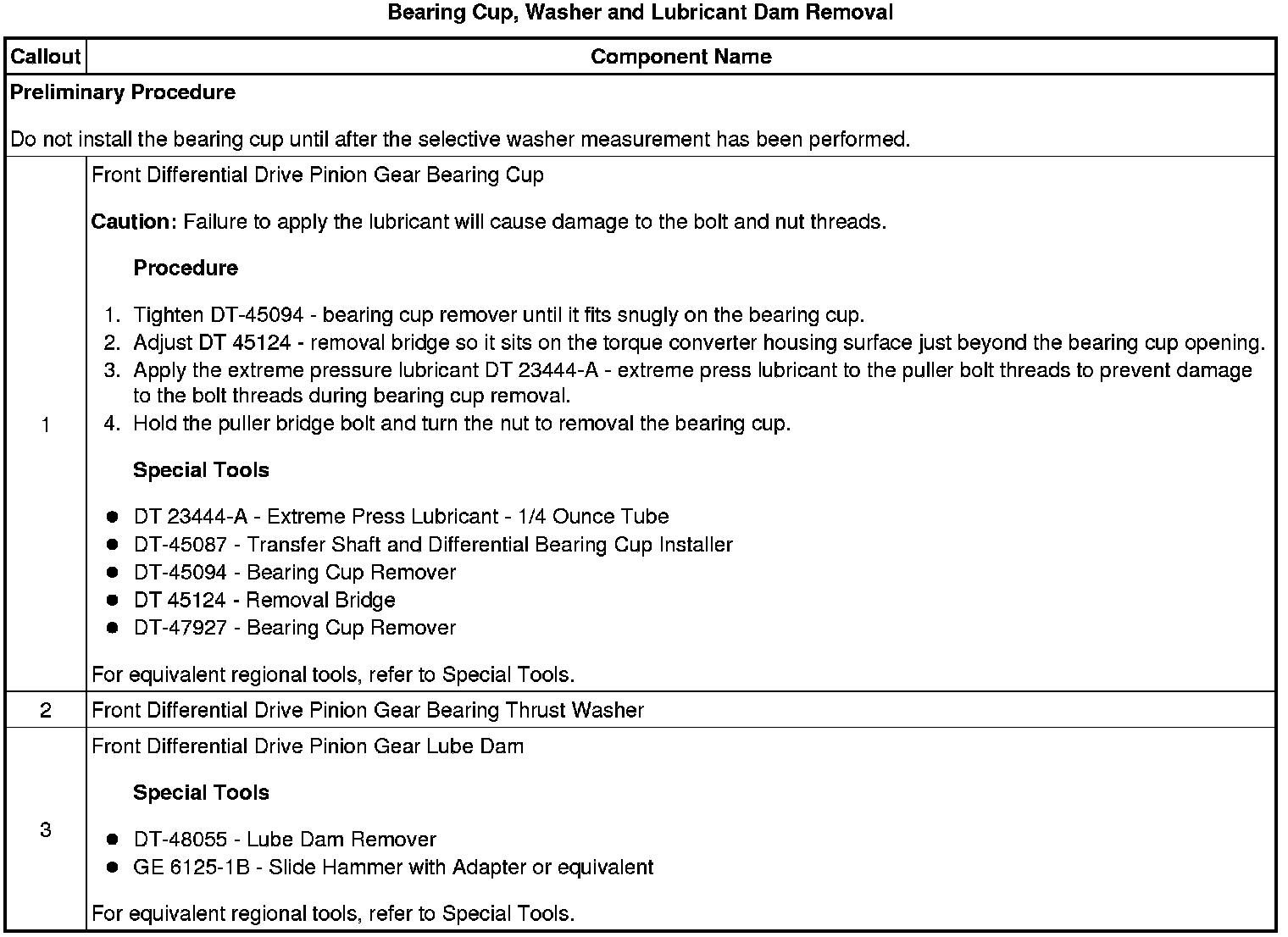

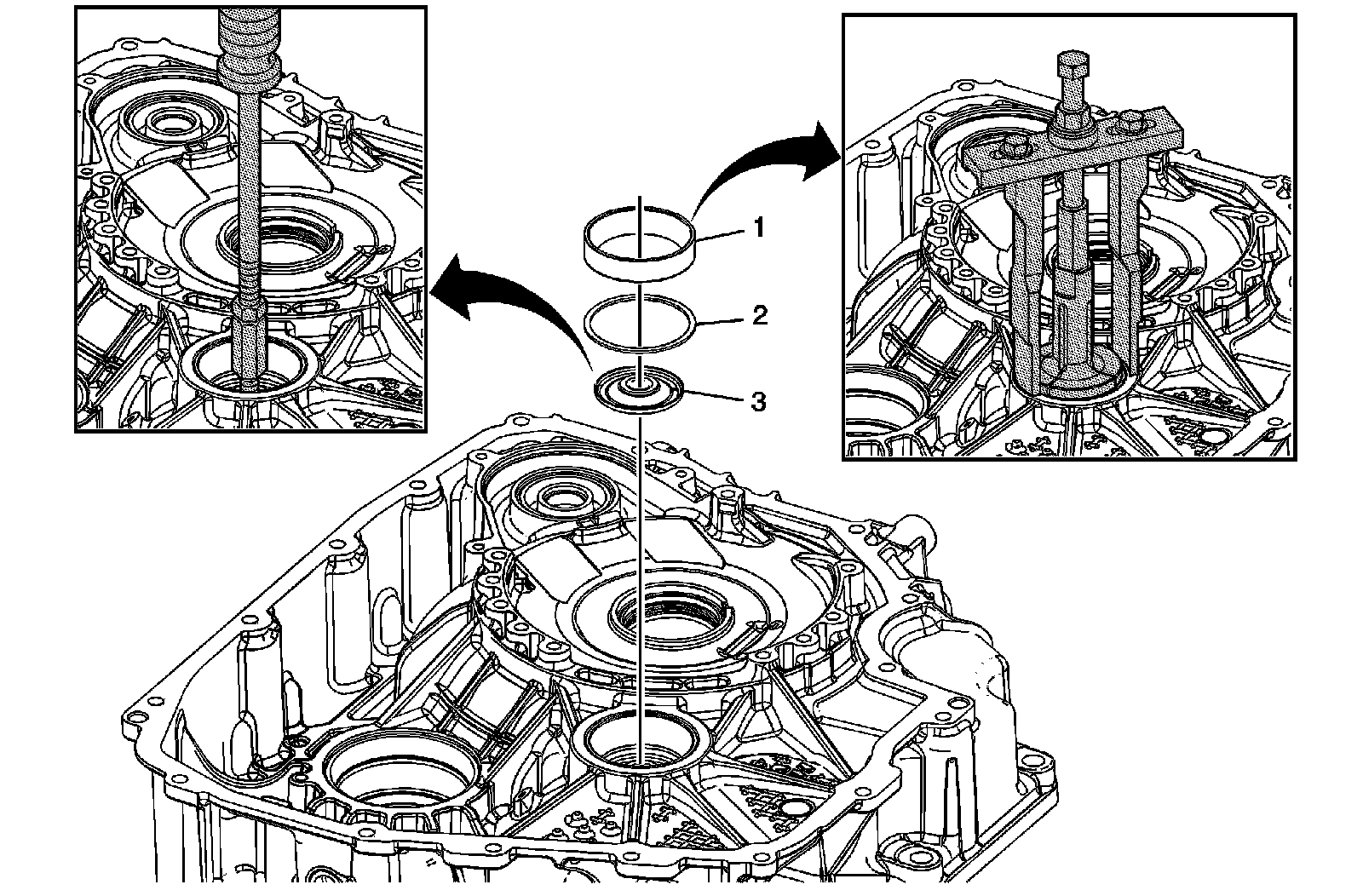

Bearing Cup, Washer and Lubricant Dam Removal

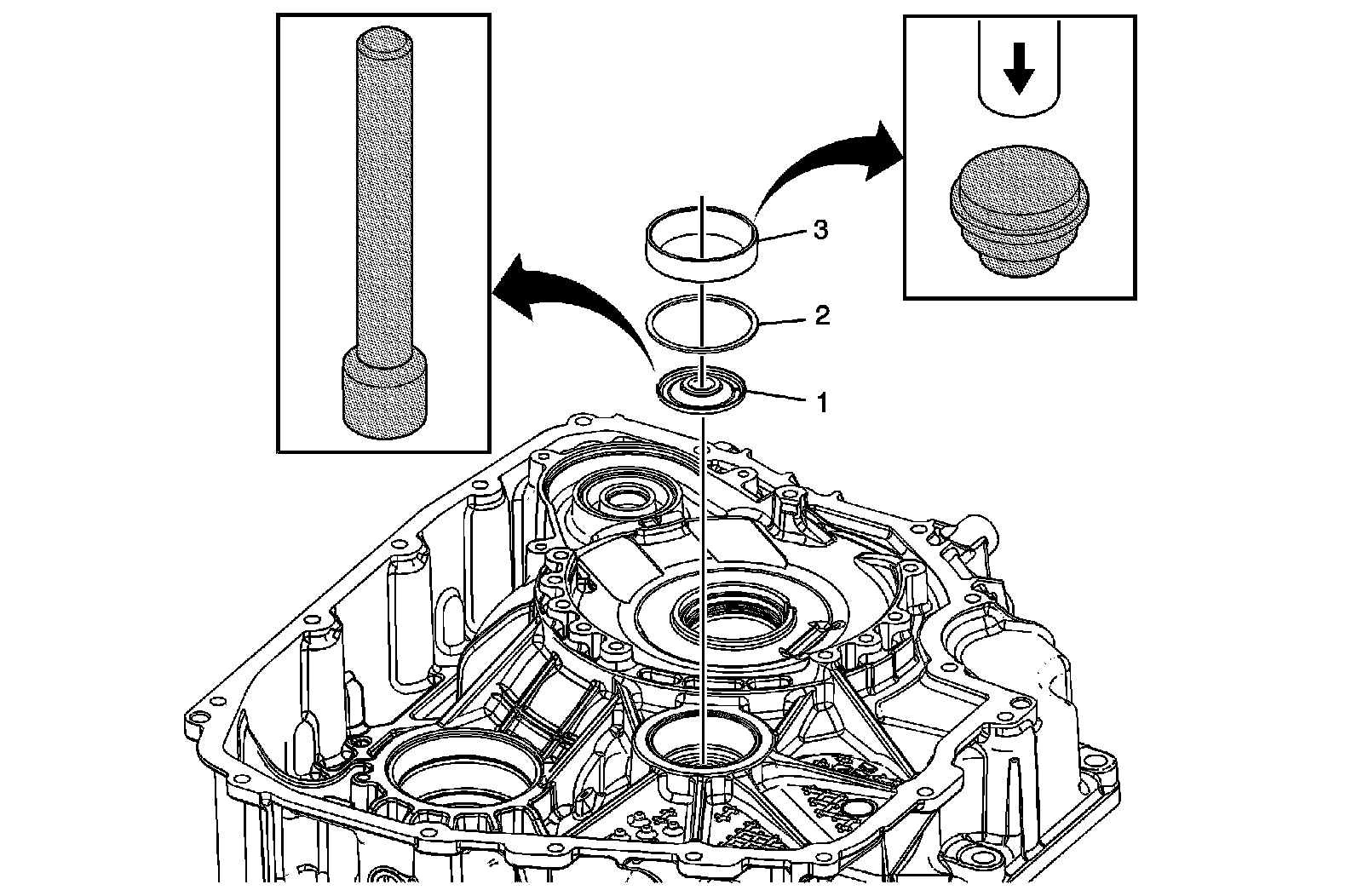

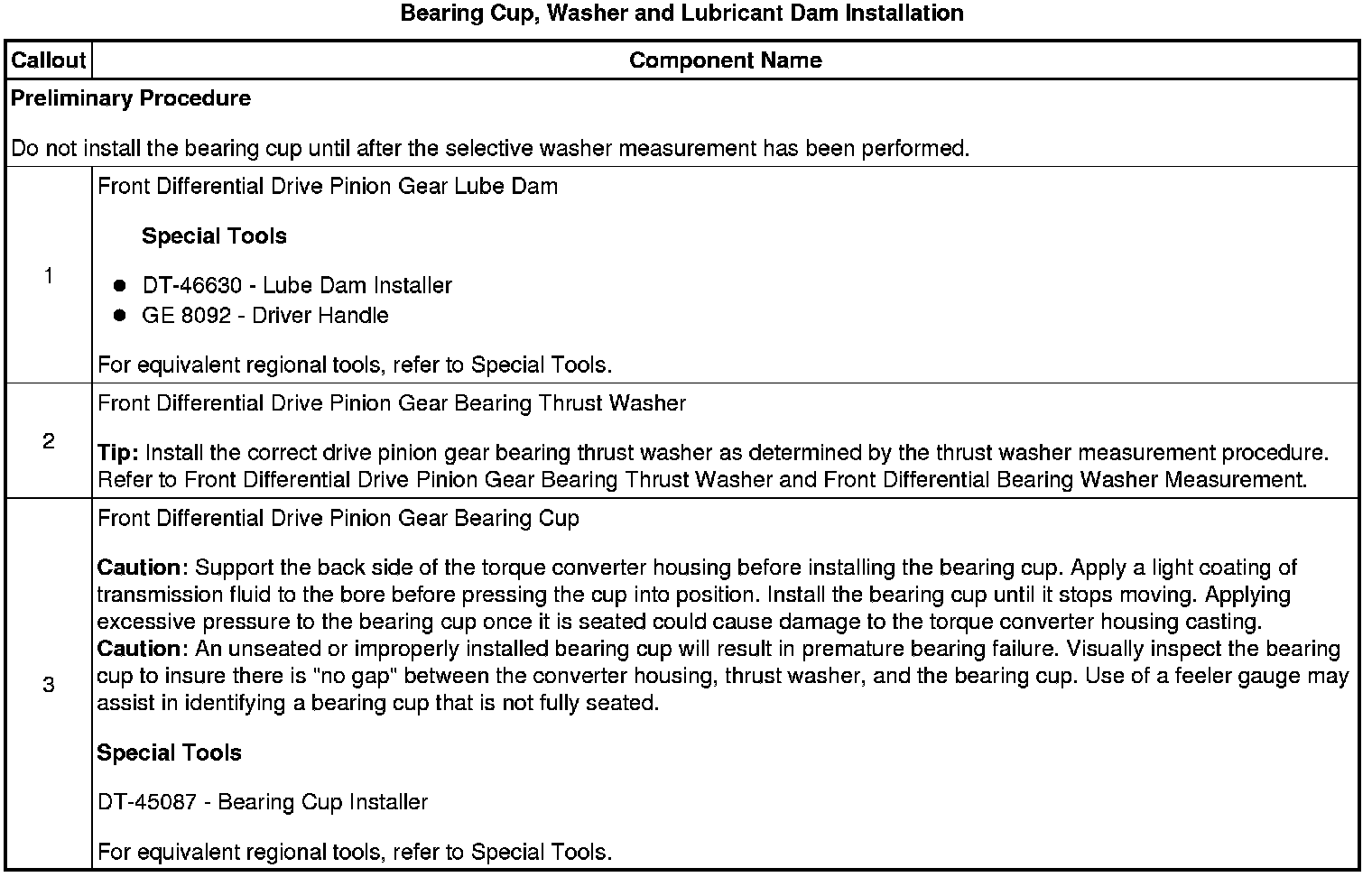

Bearing Cup, Washer and Lubricant Dam Installation
