Home >> Chevrolet >> 2013 >> Impala V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Repair Instructions >> Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side

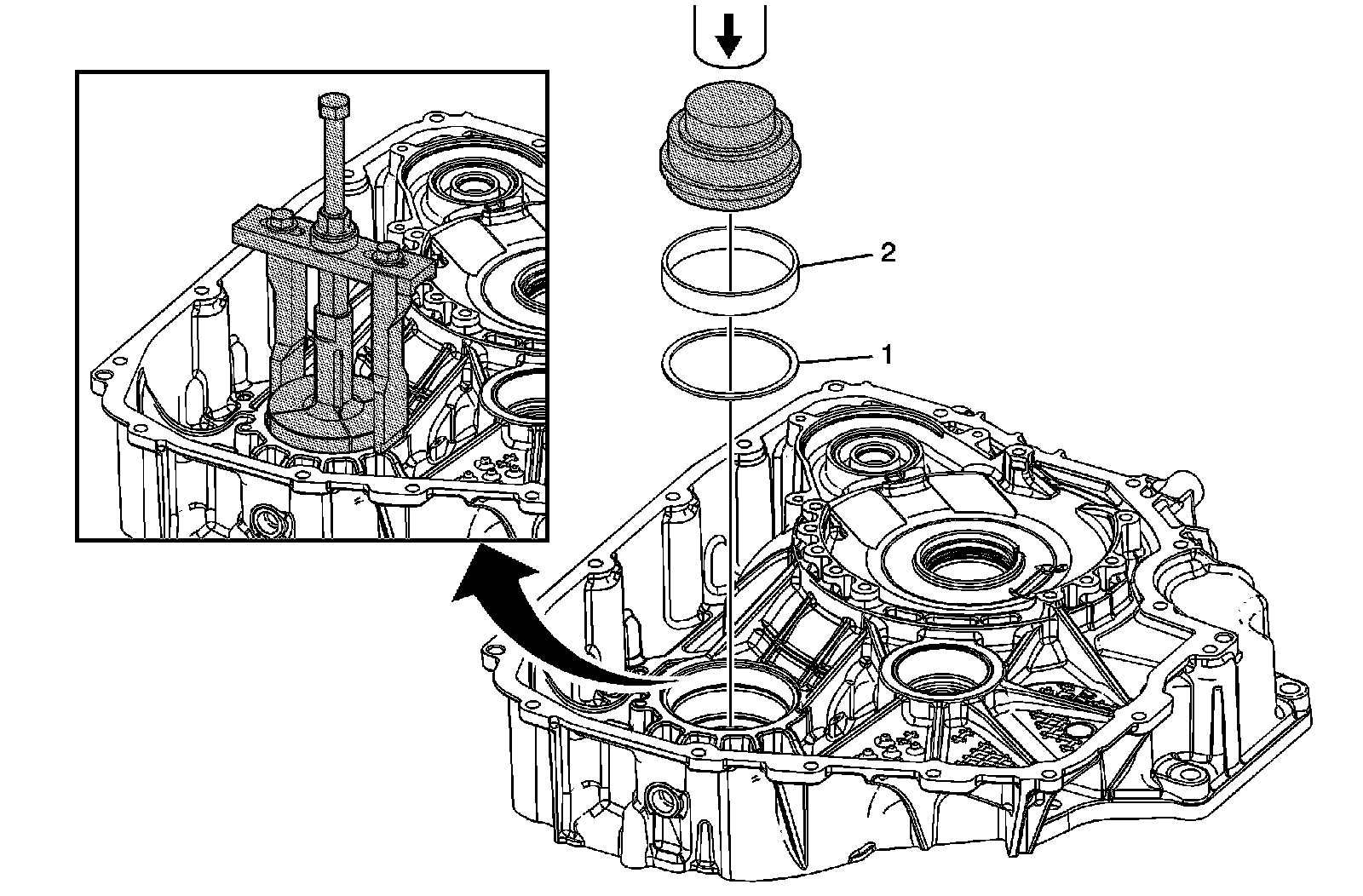

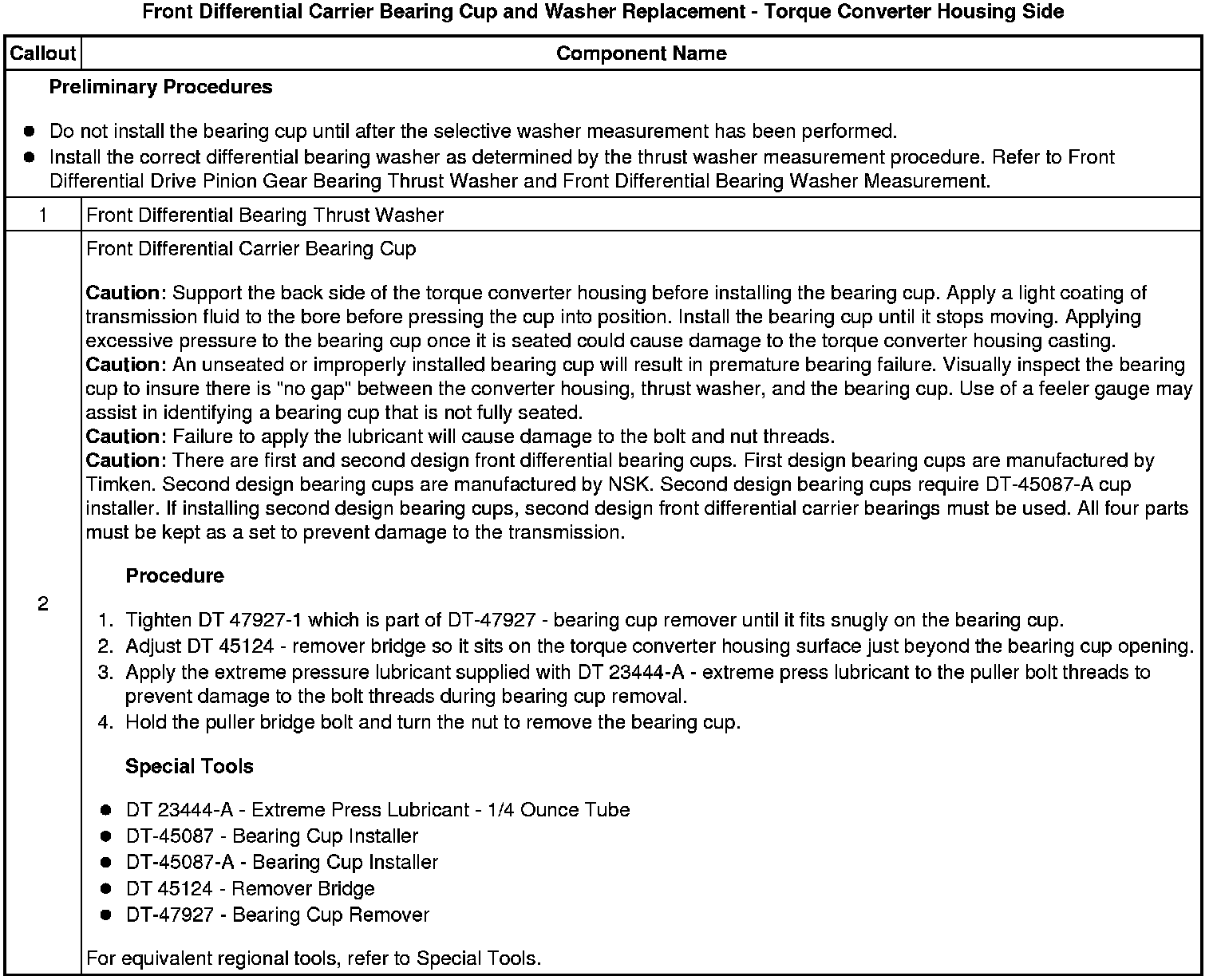

Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side




Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side
