Home >> Chevrolet >> 2013 >> Impala V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Repair Instructions >> Case Cover Assembly Disassemble

Case Cover Assembly Disassemble




Case Cover Assembly Disassemble

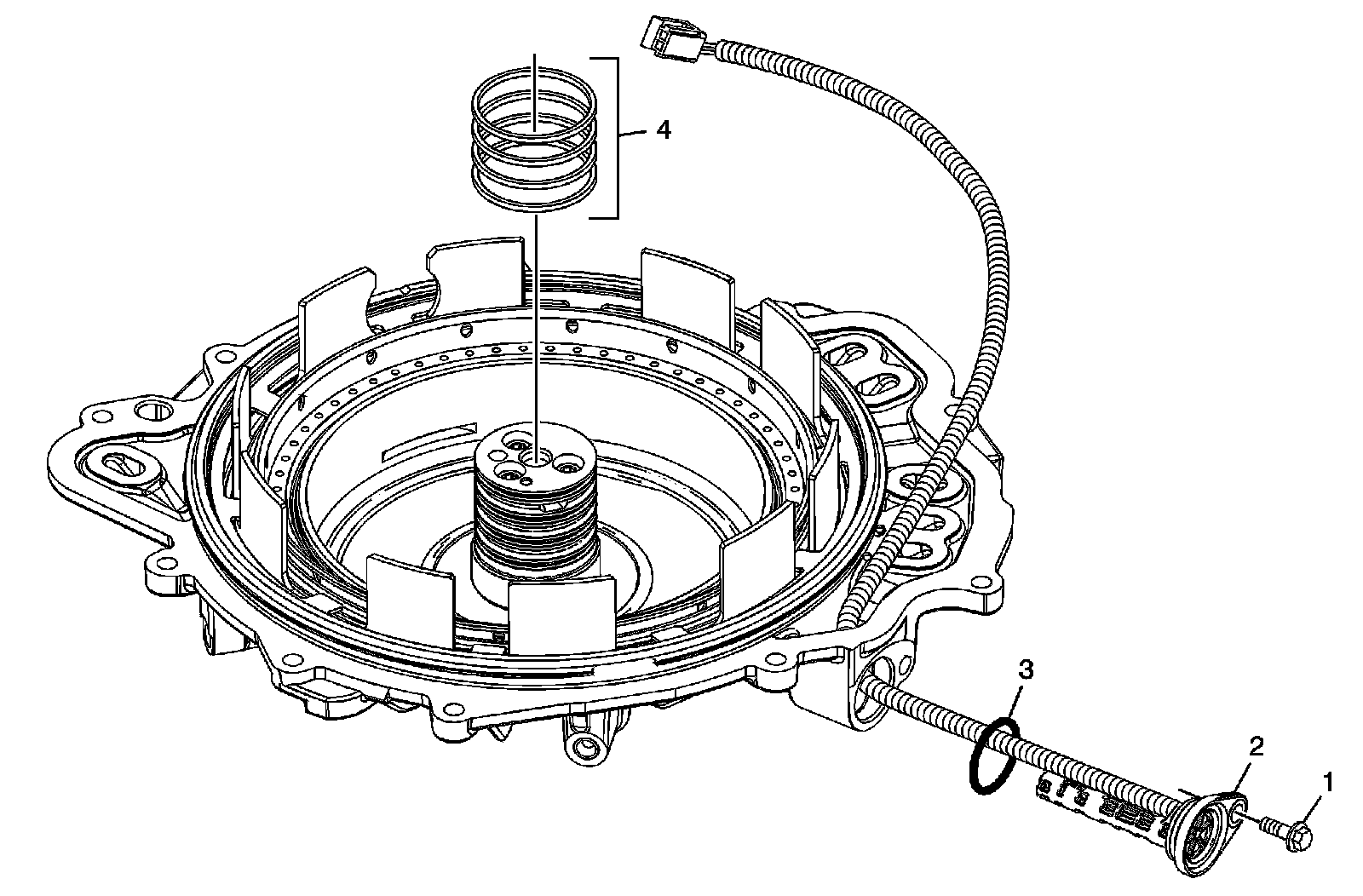

ISS Removal

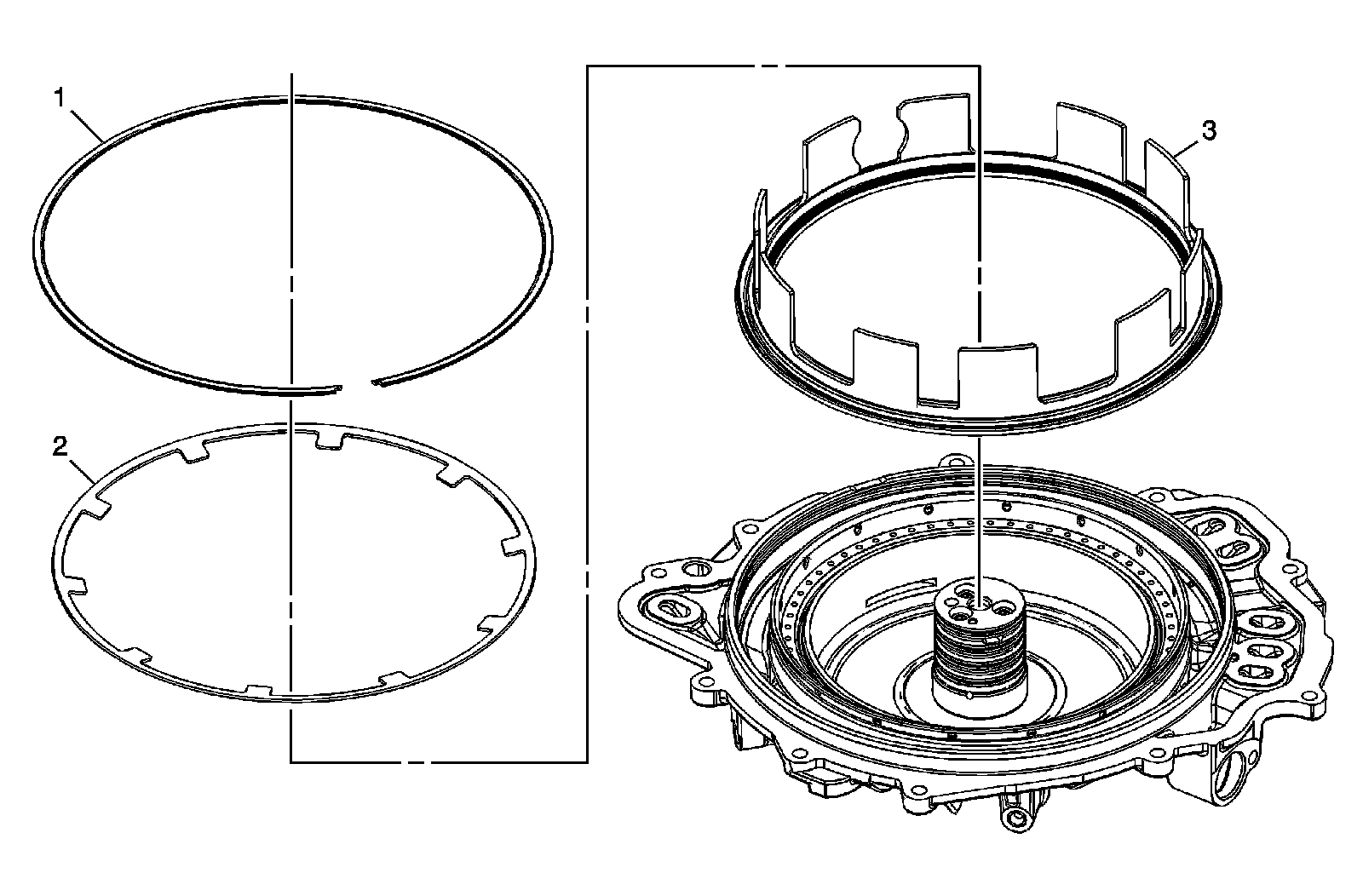

Low and Reverse Clutch Piston Removal

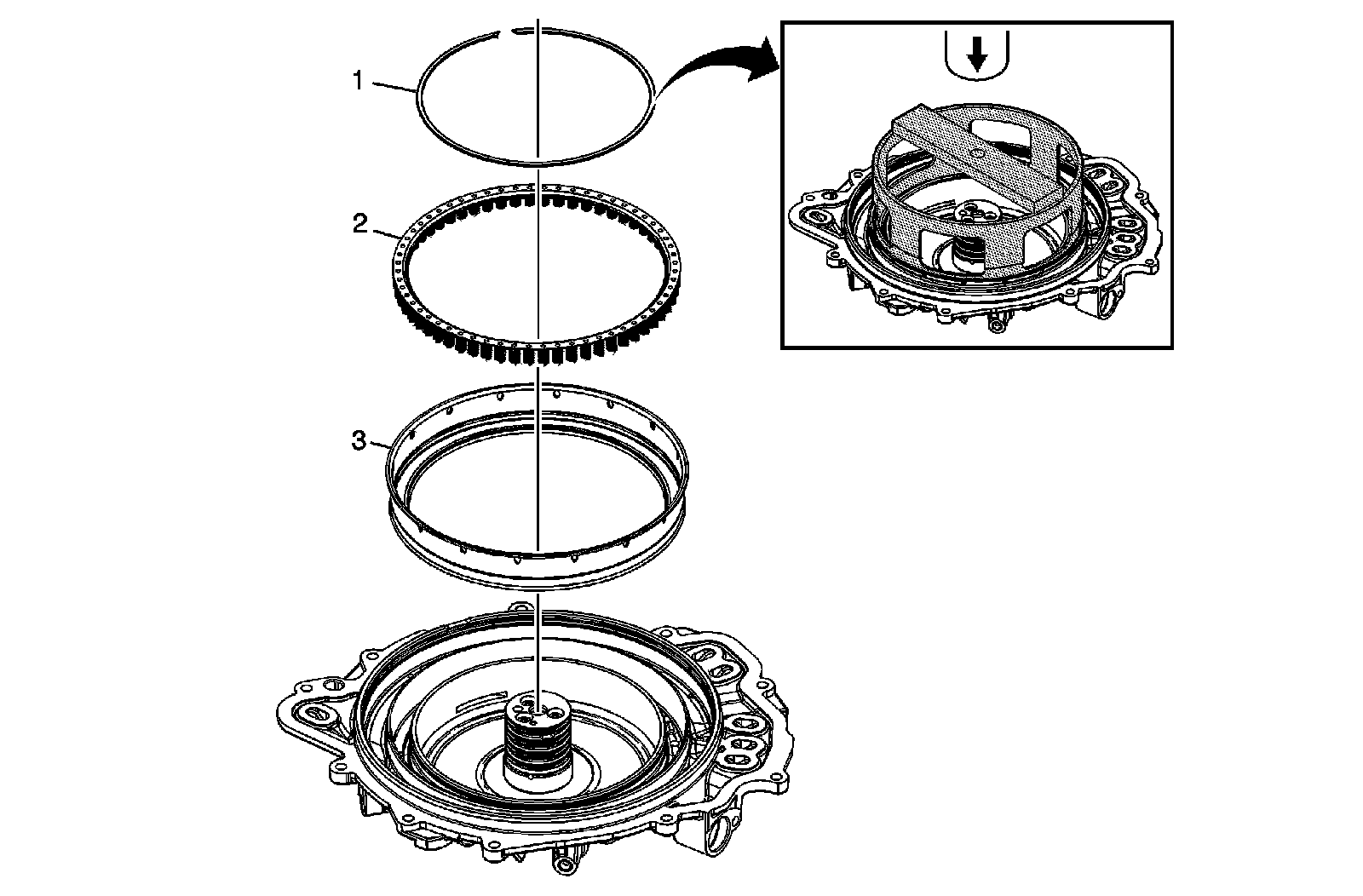

2-6 Clutch Piston Removal

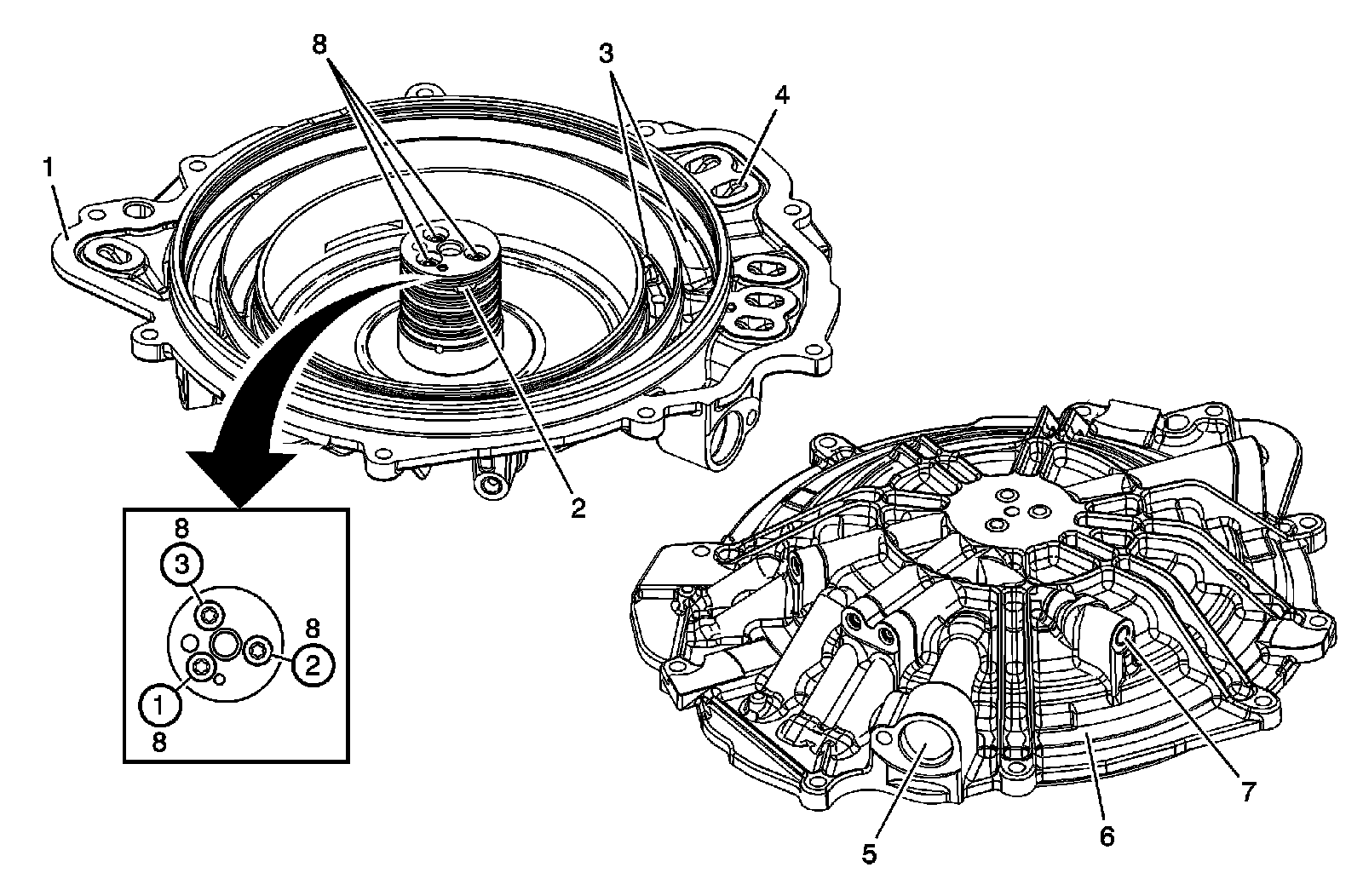

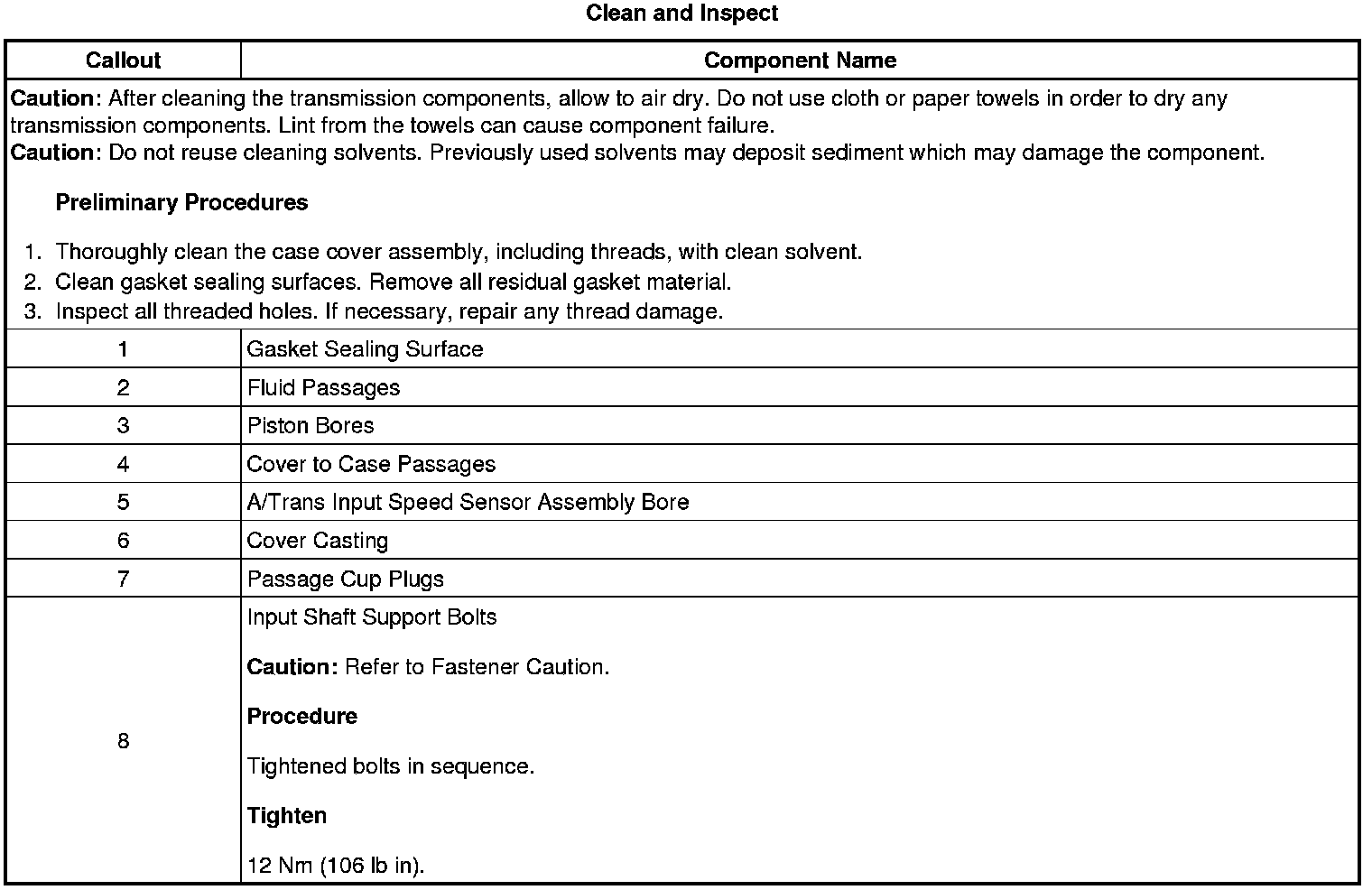

Clean and Inspect
