Case Cover Assembly Assemble




Case Cover Assembly Assemble

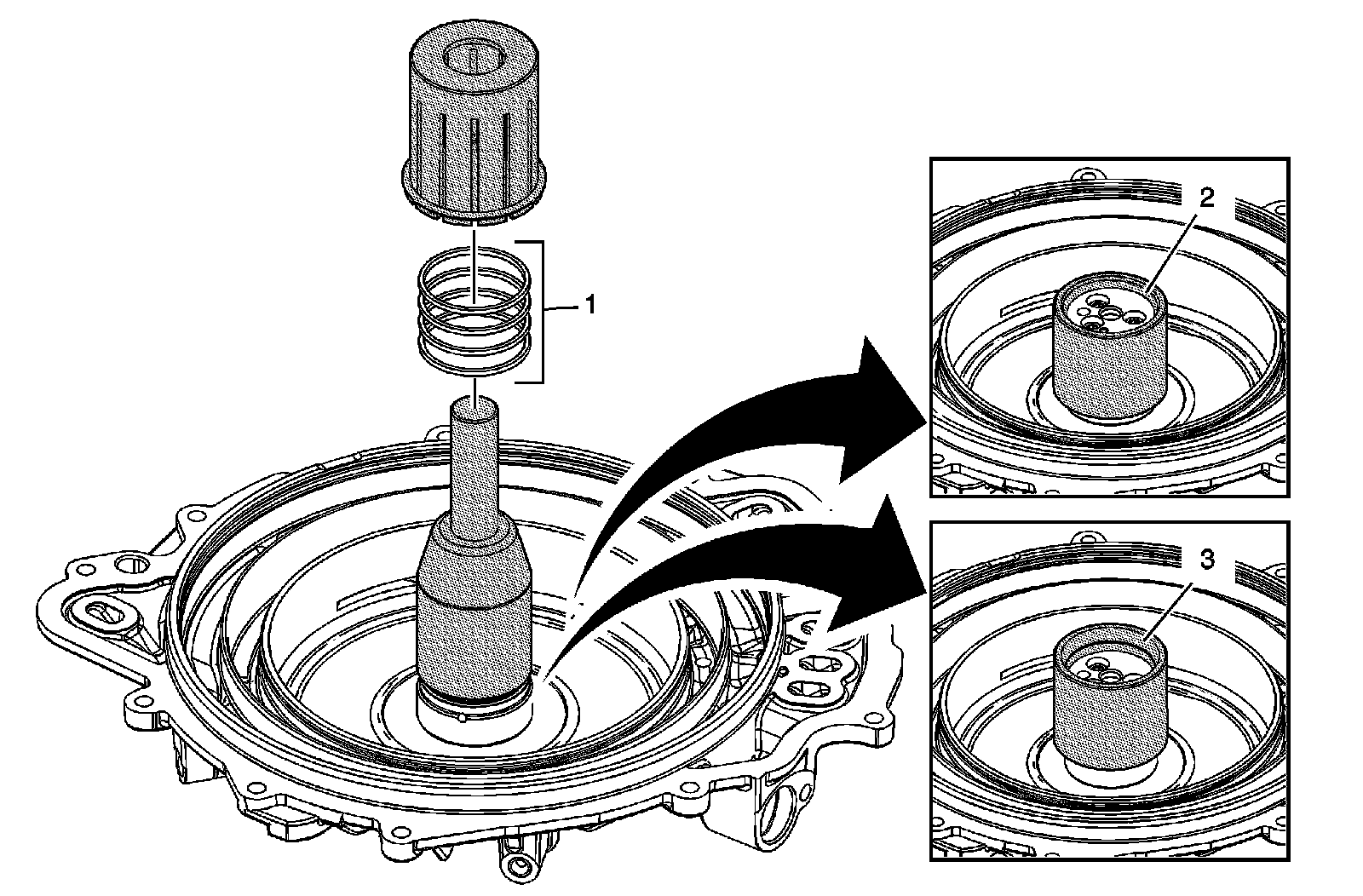

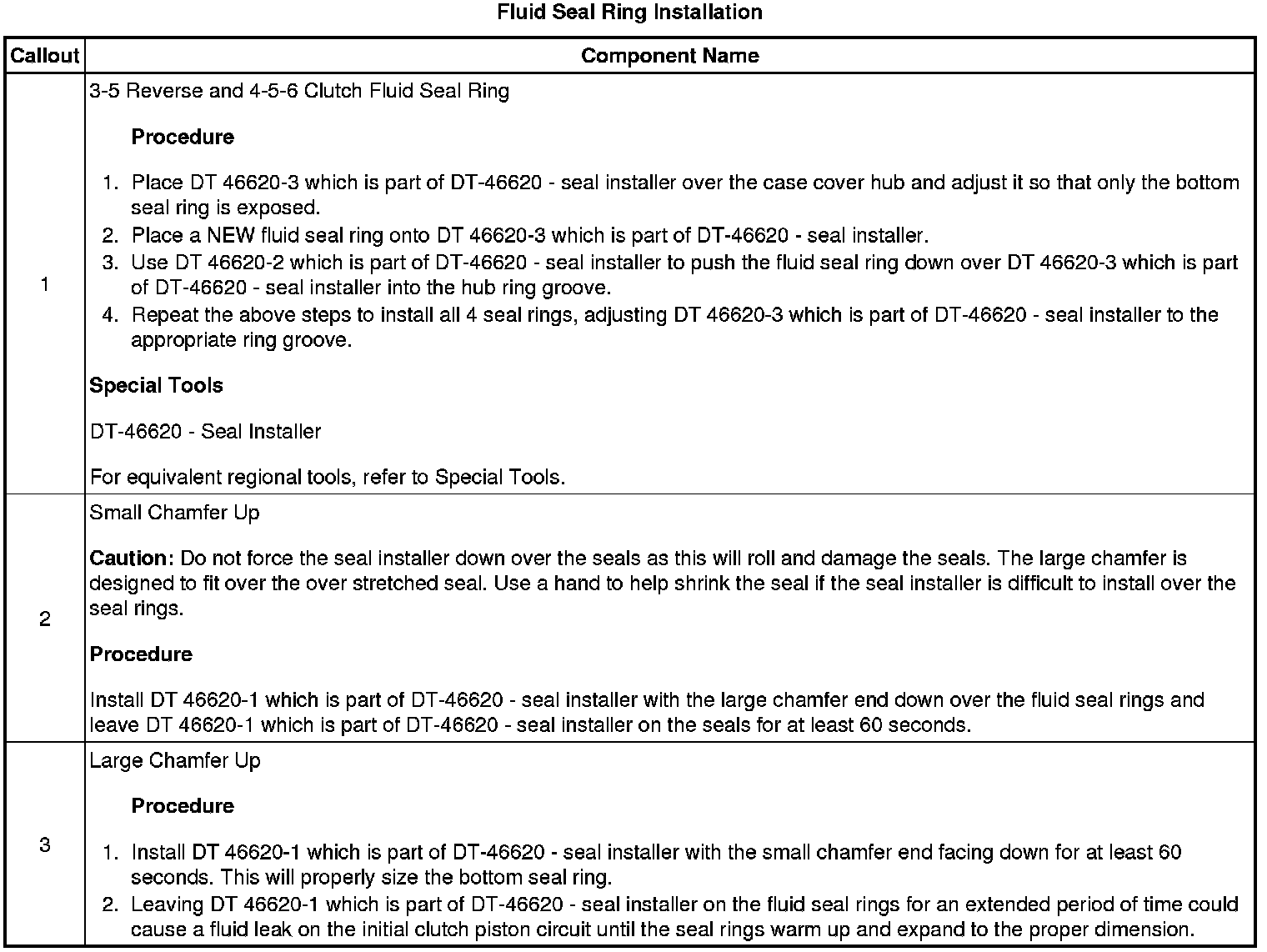

Fluid Seal Ring Installation

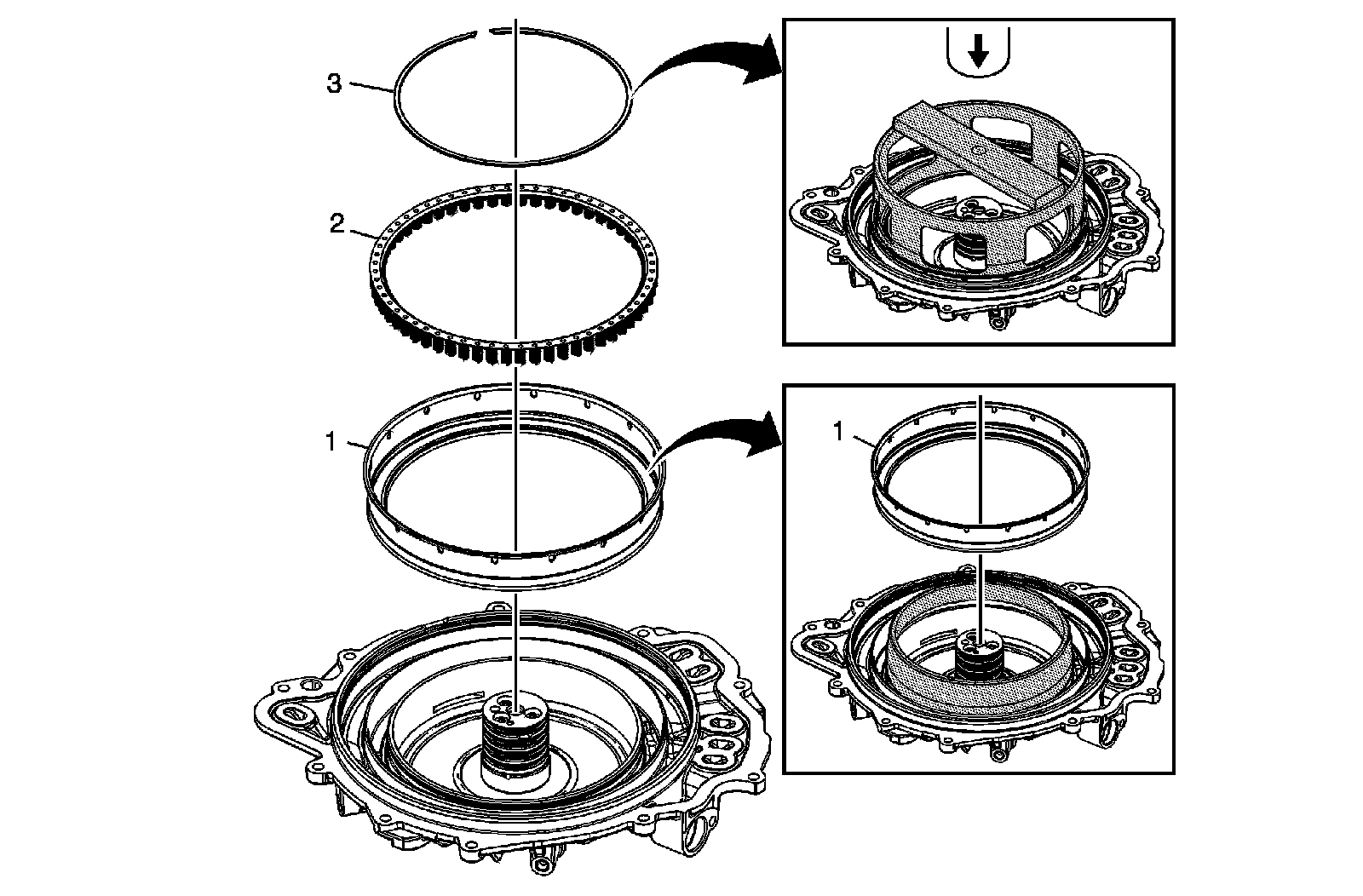

2-6 Clutch Piston Installation

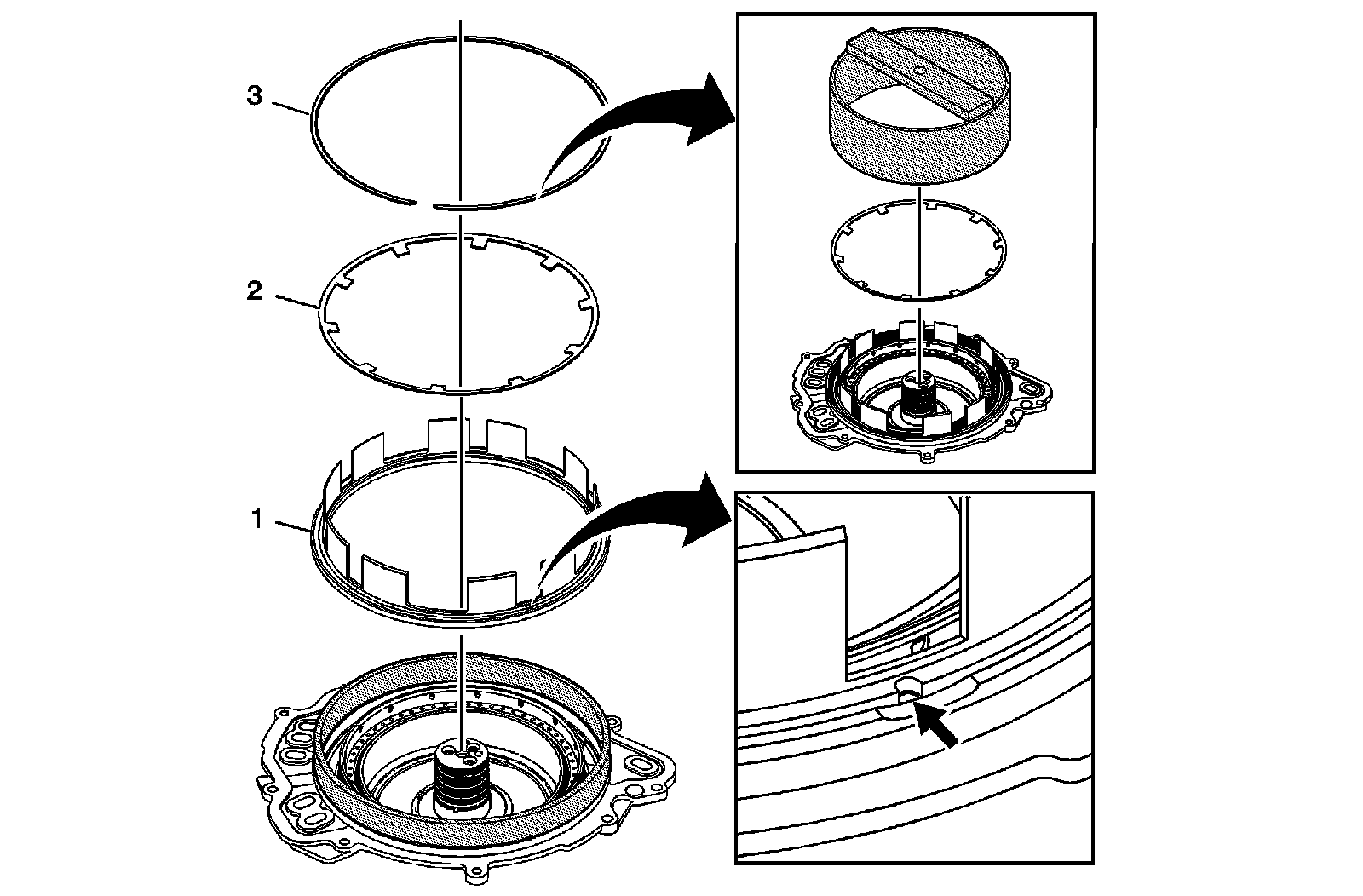

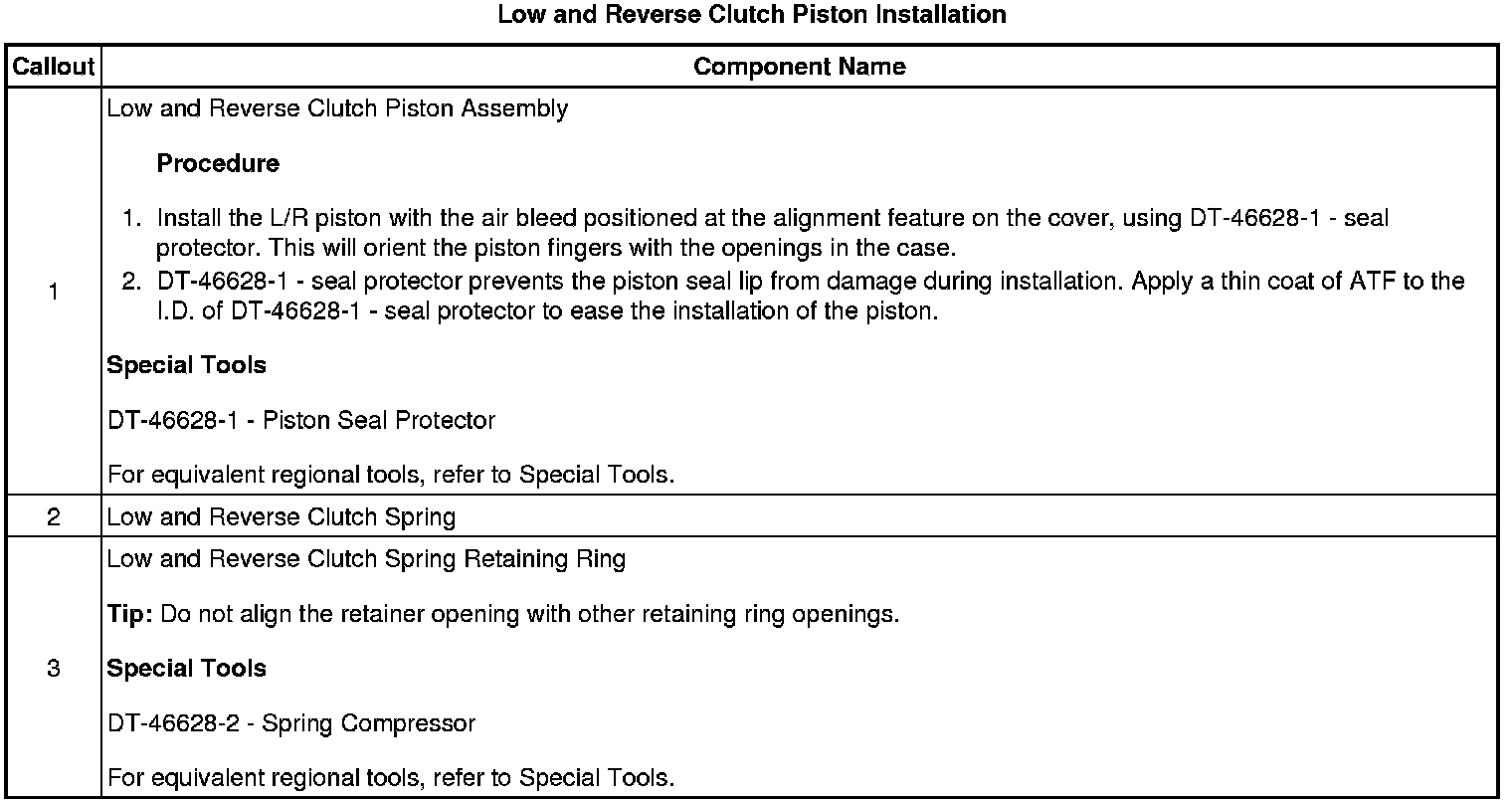

Low and Reverse Clutch Piston Installation

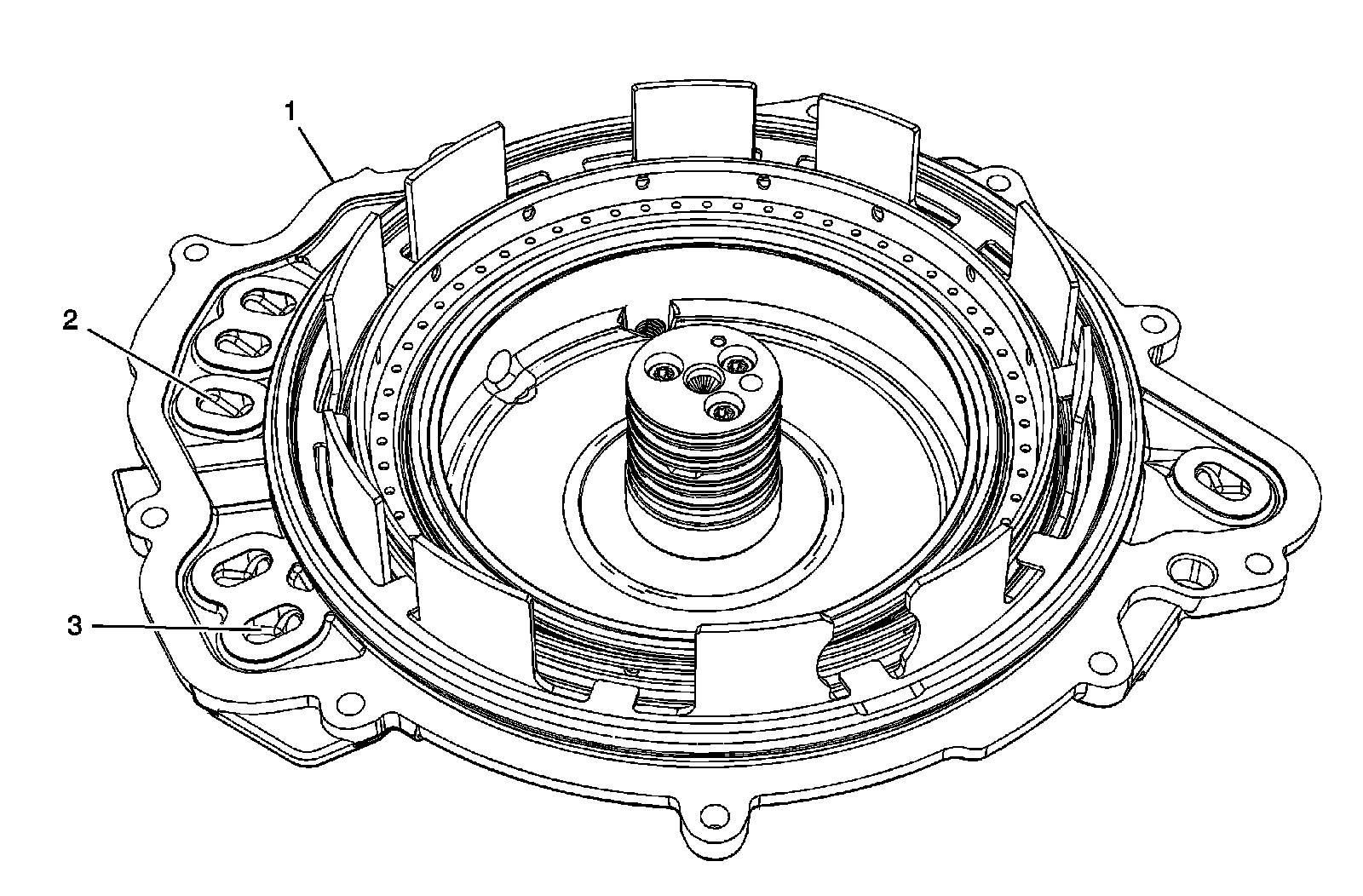

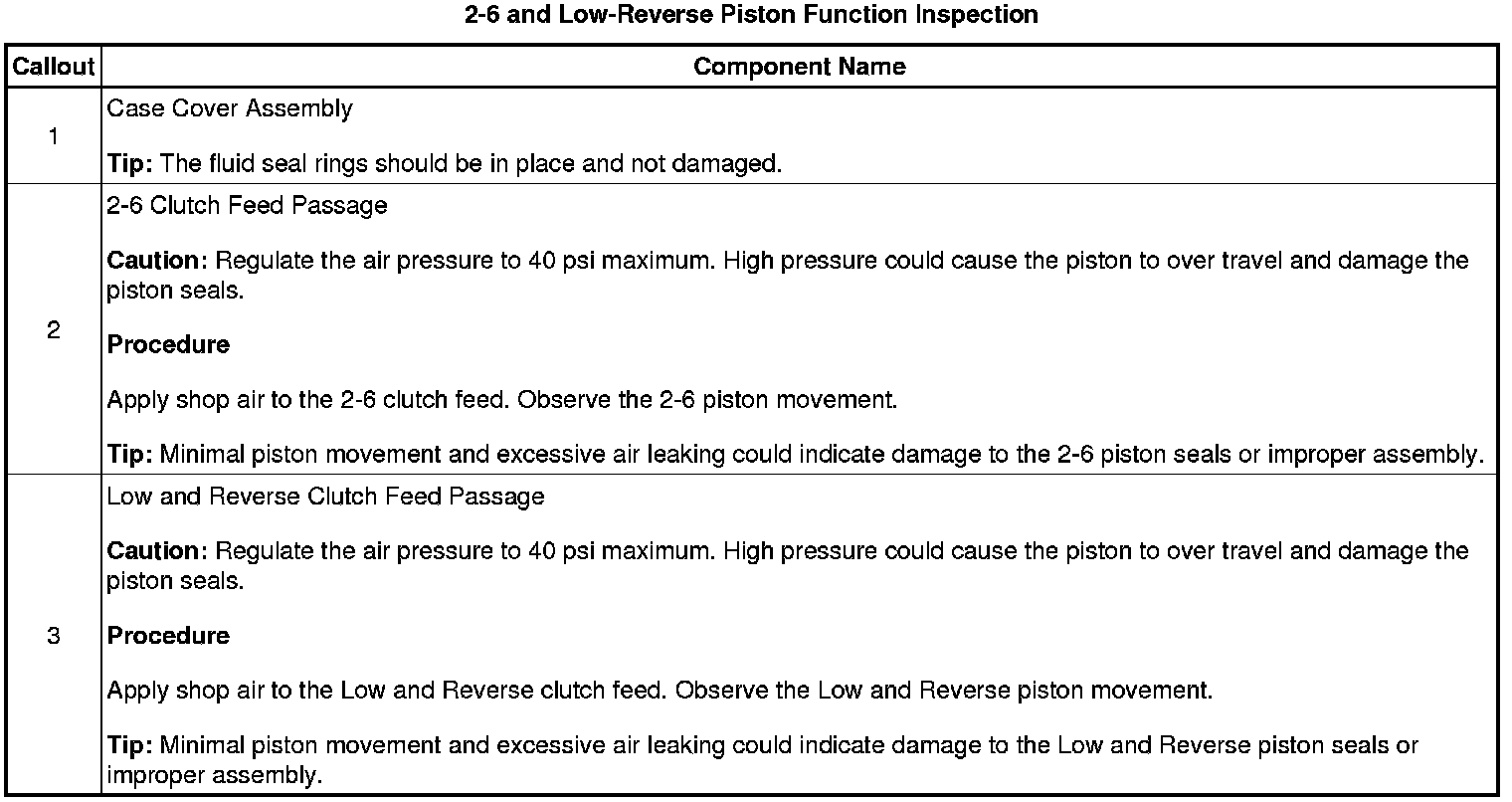

2-6 and Low-Reverse Piston Function Inspection

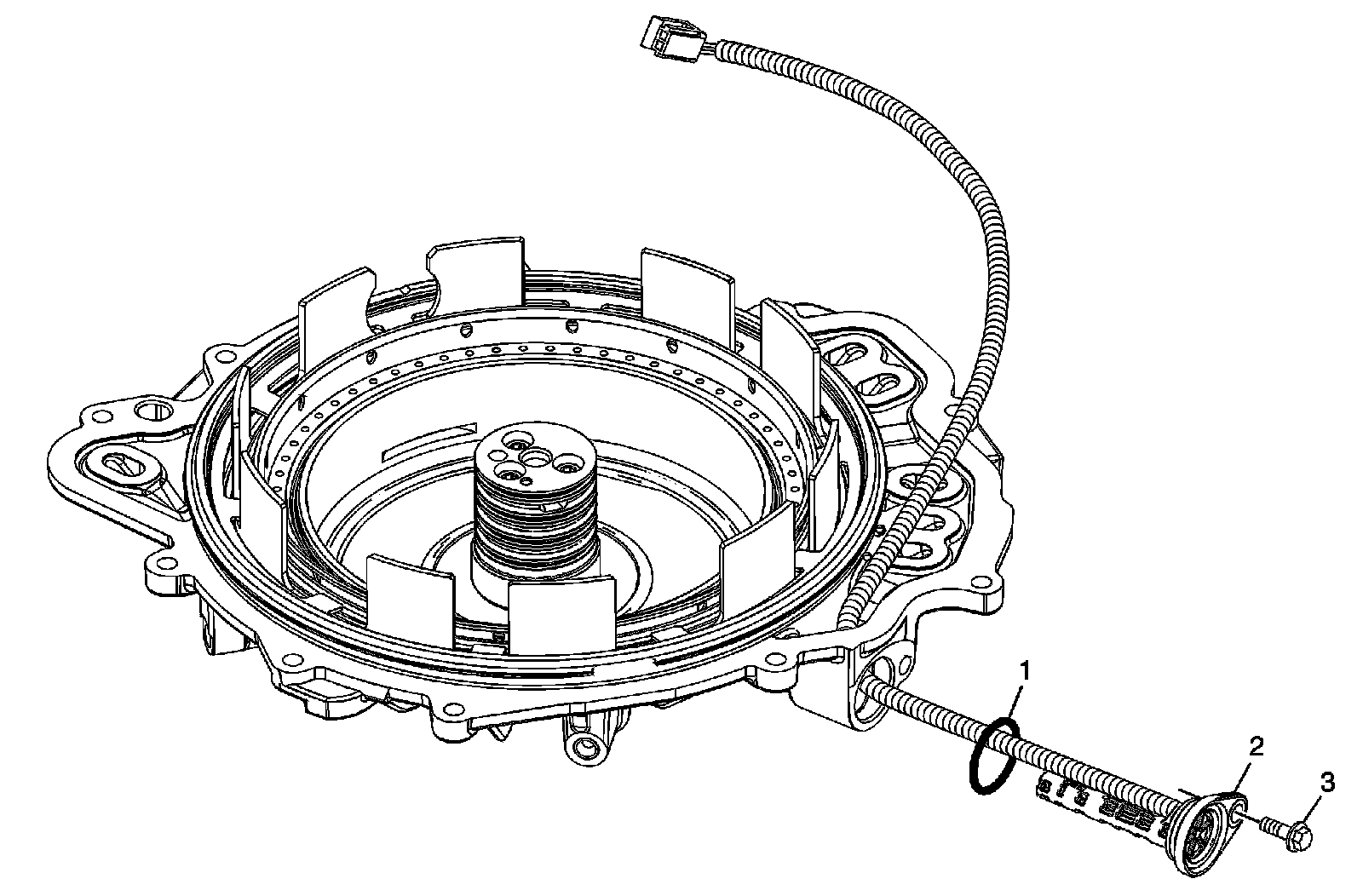

Input Speed Sensor Installation
