Oxygen Sensors




Powertrain Component Views

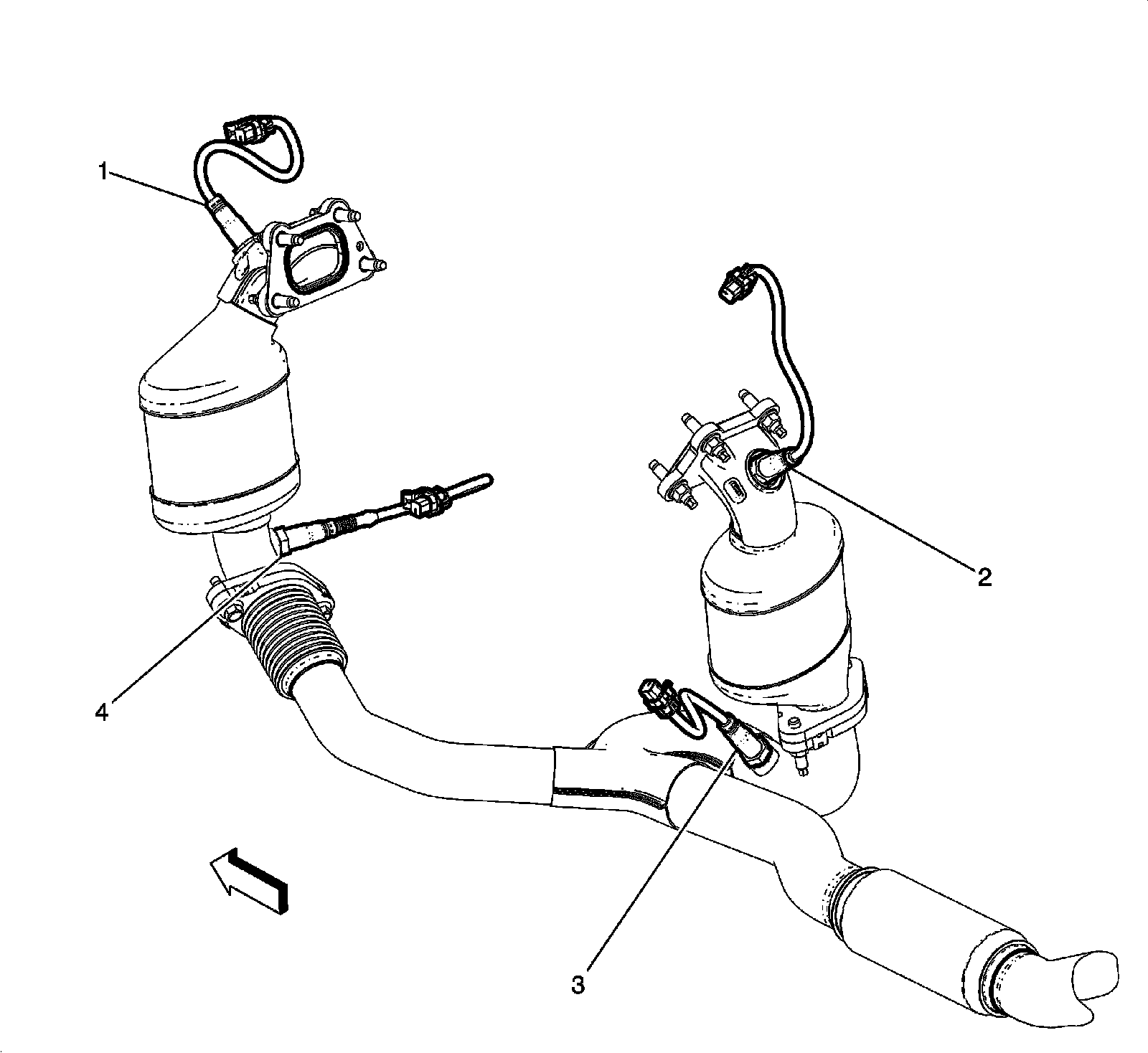

Oxygen Sensors





1 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1

2 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1

3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2

4 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
