Interior Lights Schematics

Interior Lights Schematics

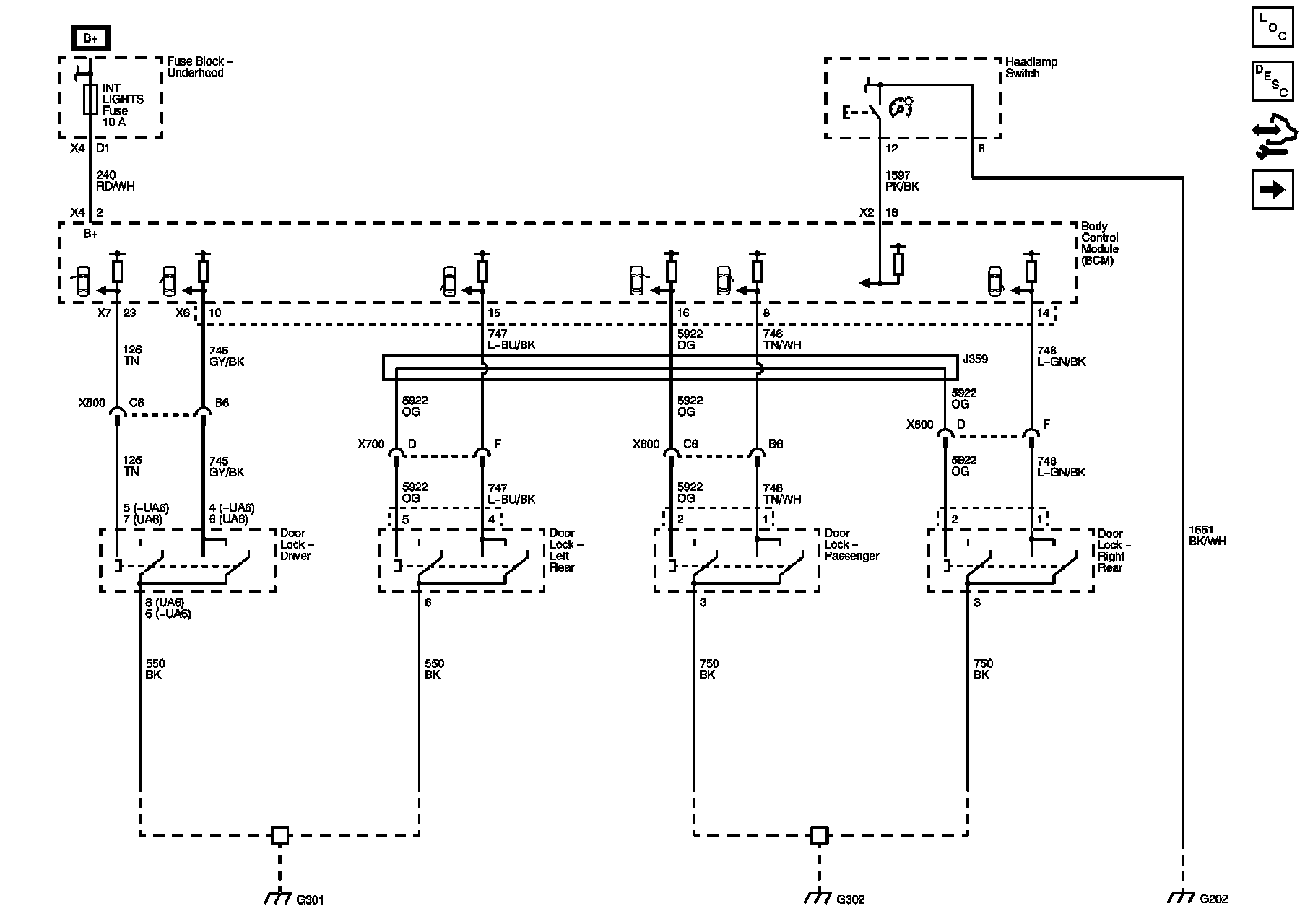

Switches

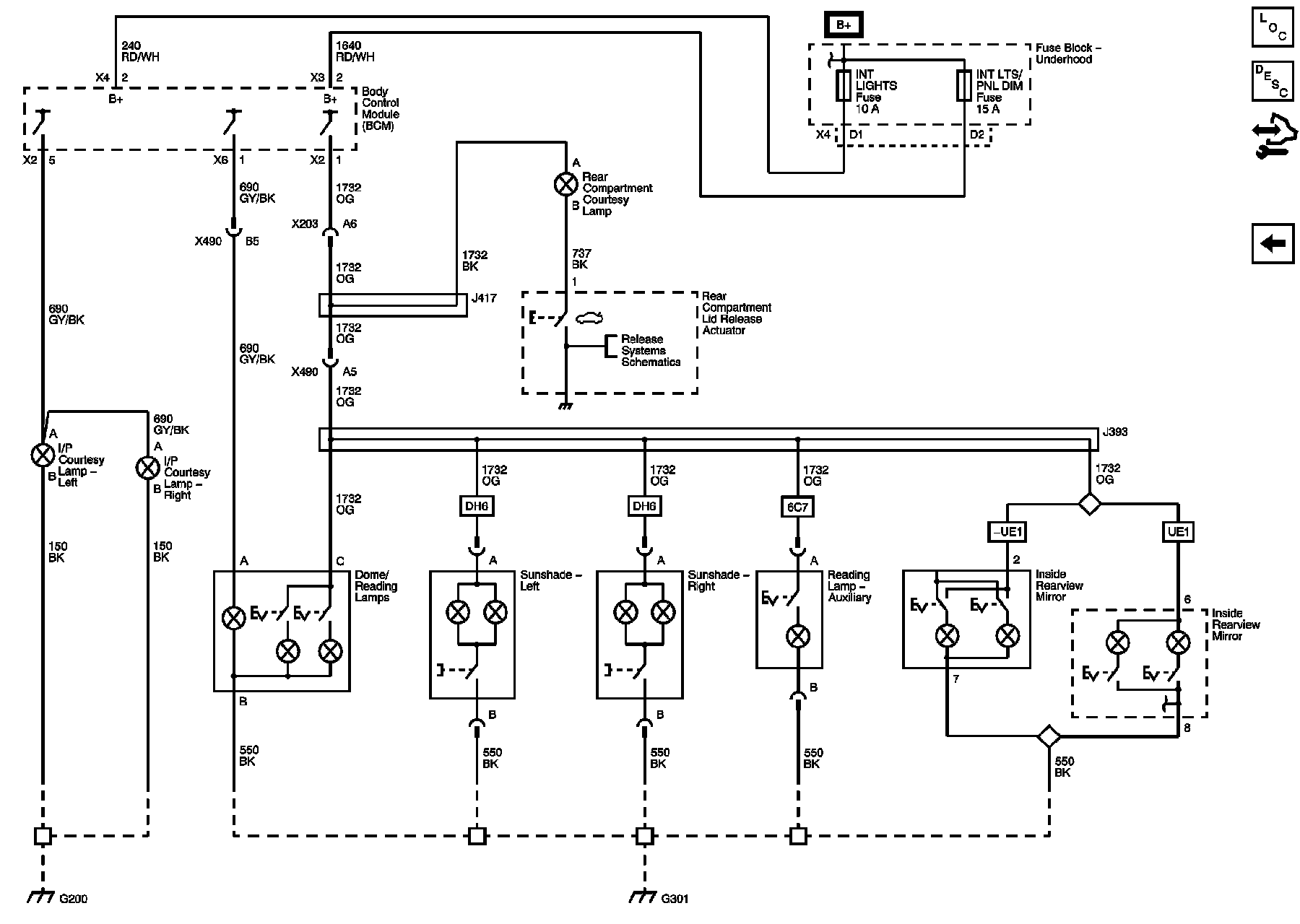

Passenger and Rear Compartment Lamps
