Water Pump Removal

Water Pump Removal

Special Tools

EN 46104 - Water Pump Pulley Holding Tool

For equivalent regional tools, refer to Special Tools Special Tools.

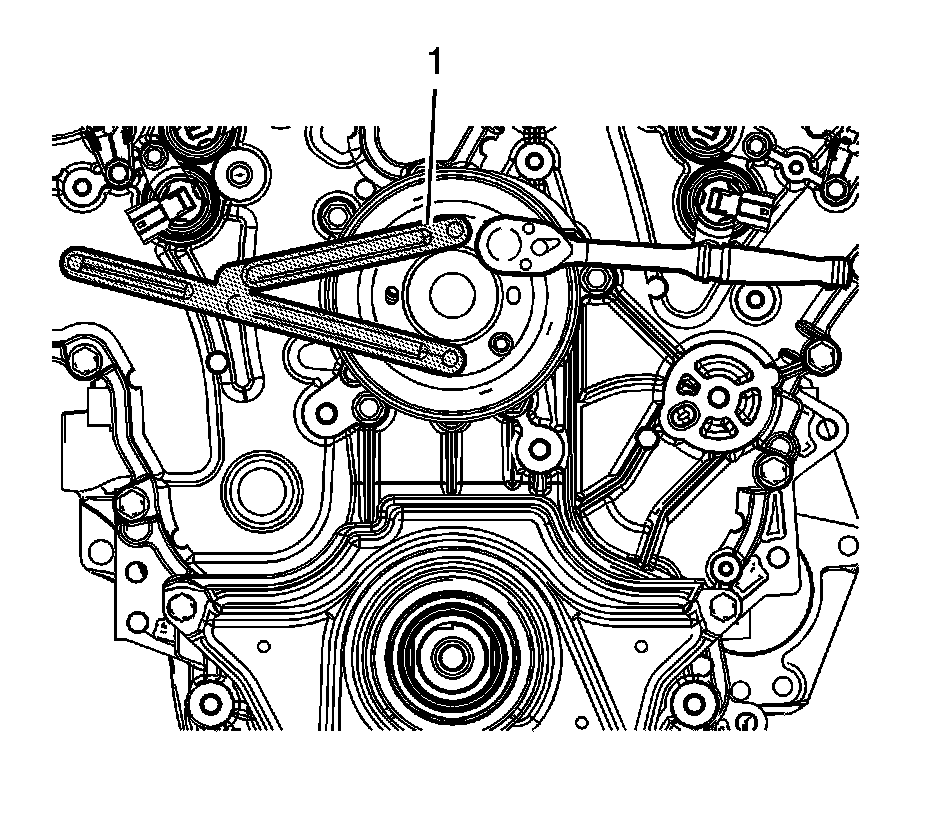

1. Install the EN 46104 - tool (1) onto the water pump pulley.

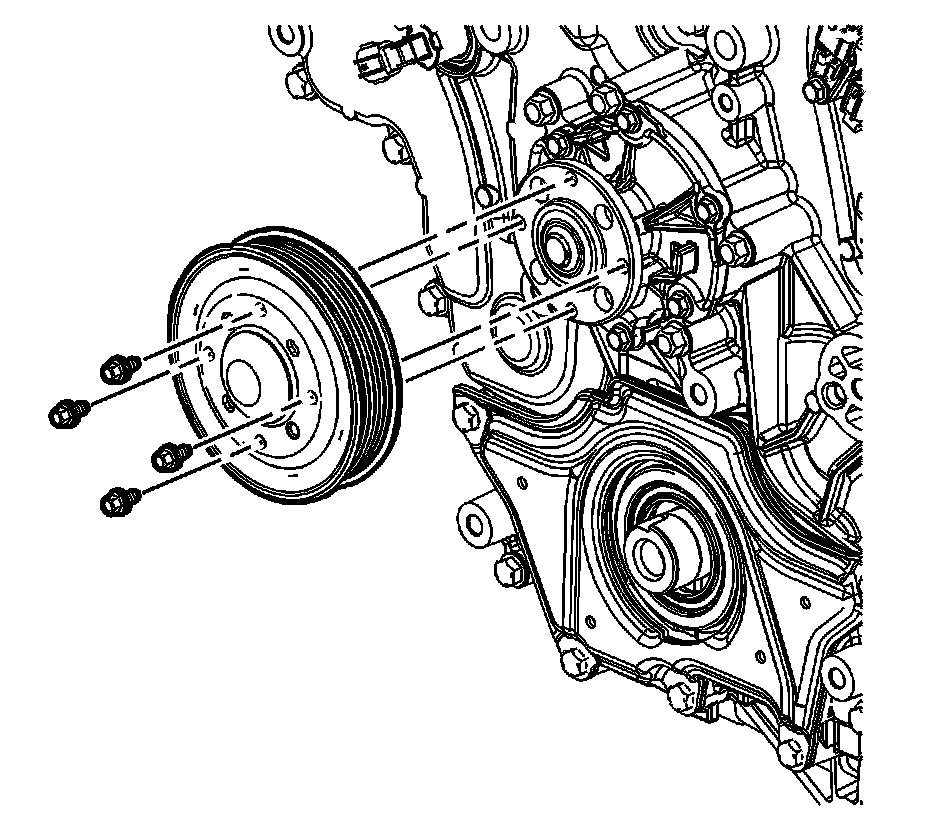

2. Remove the water pump pulley bolts.

3. Remove the water pump pulley.

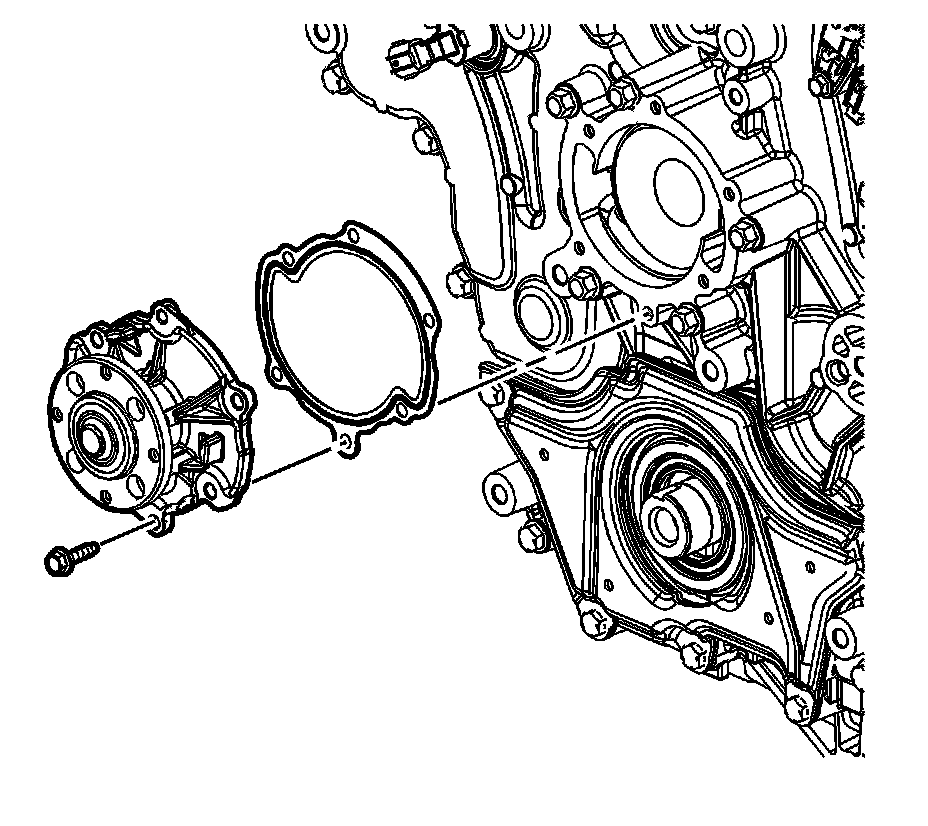

4. Remove the water pump bolts.

5. Remove the water pump from the front cover.

6. Remove the water pump gasket.
