Secondary Air Injection Check Valve Removal - Left Side

Secondary Air Injection Check Valve Removal - Left Side

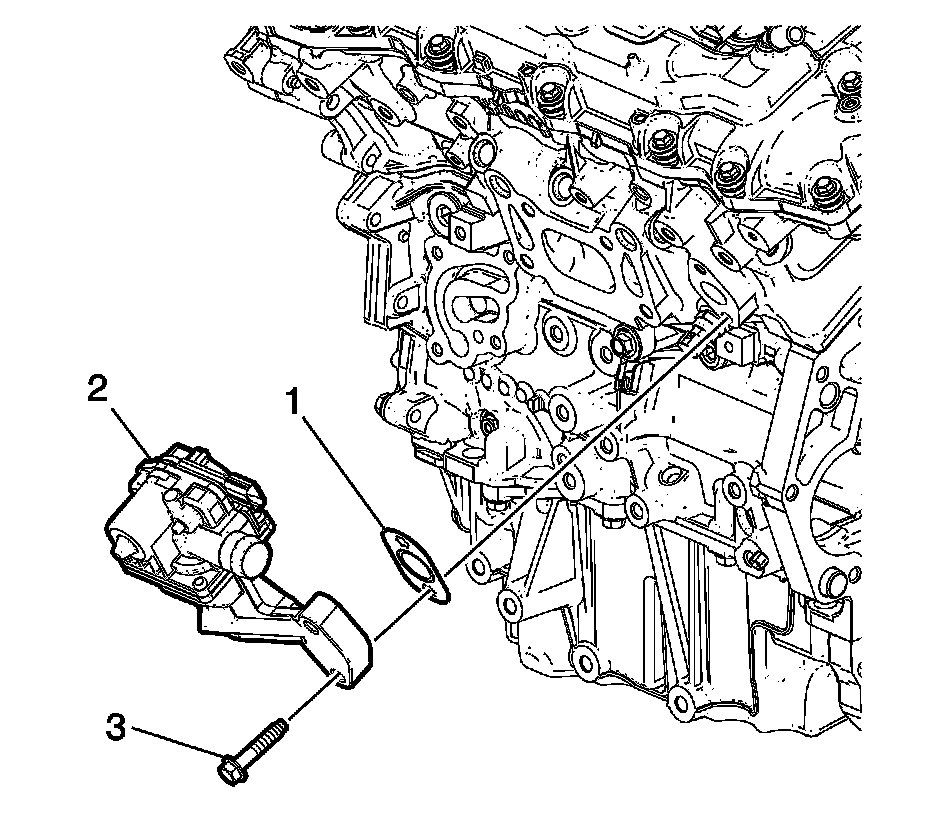

1. Remove the secondary air injection (SAI) check valve bolts (3).

2. Remove the SAI check valve (2).

3. Remove and discard the SAI check valve gasket (1).
