Secondary Air Injection Check Valve Installation - Right Side

Secondary Air Injection Check Valve Installation - Right Side

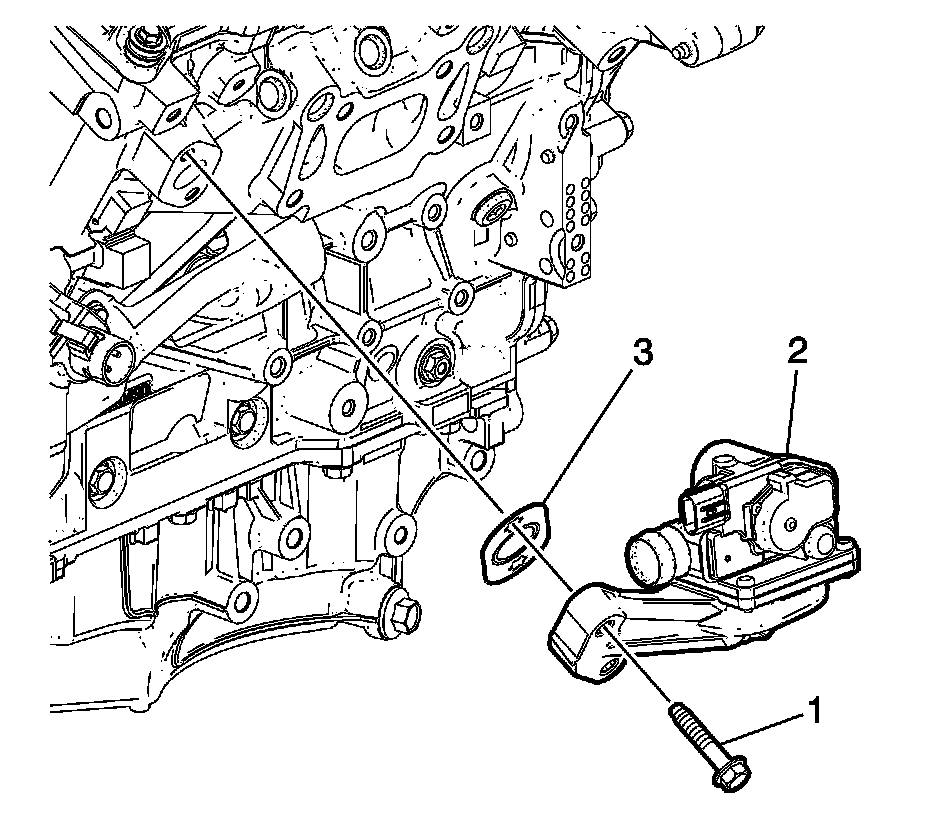

1. Install the NEW secondary air injection (SAI) check valve gasket (3).

2. Install the SAI check valve (2).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the SAI check valve bolts (1) and tighten to 25 Nm (18 lb ft).
