Oil Pan Installation

Oil Pan Installation





1. Place a 3 mm (0.118 in) bead of RTV sealant on the block pan rail and the crankshaft rear oil seal housing (1). Refer to Adhesives, Fluids, Lubricants, and Sealers Adhesives, Fluids, Lubricants, and Sealers for recommended sealant.

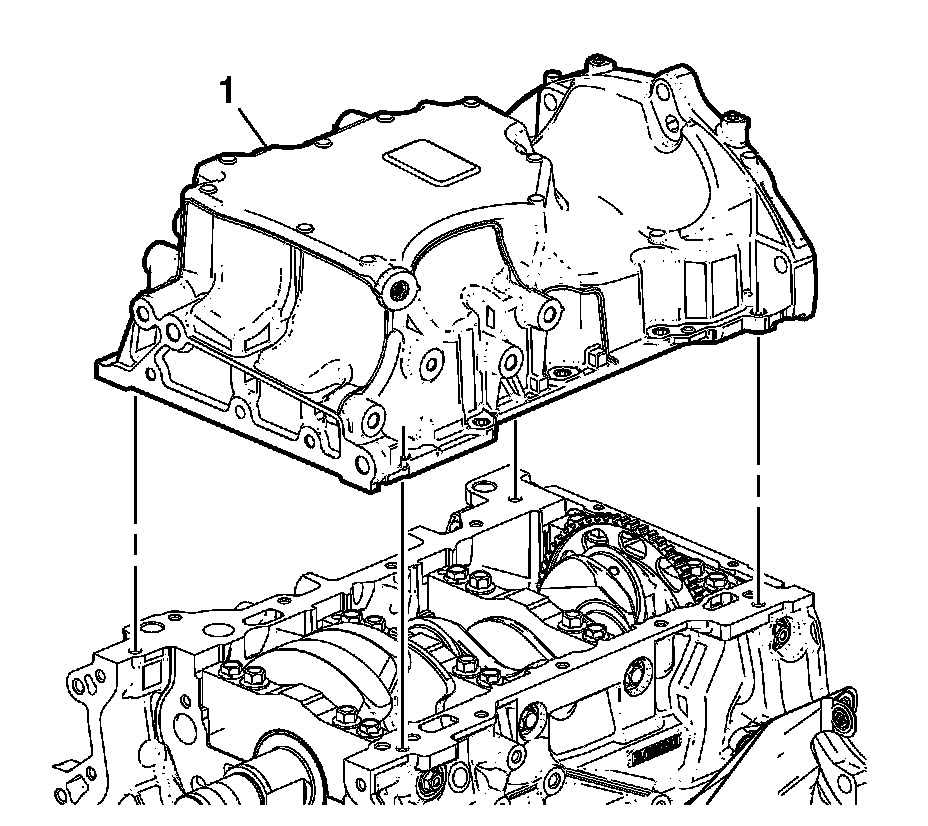

2. Position the oil pan (1) onto the block.

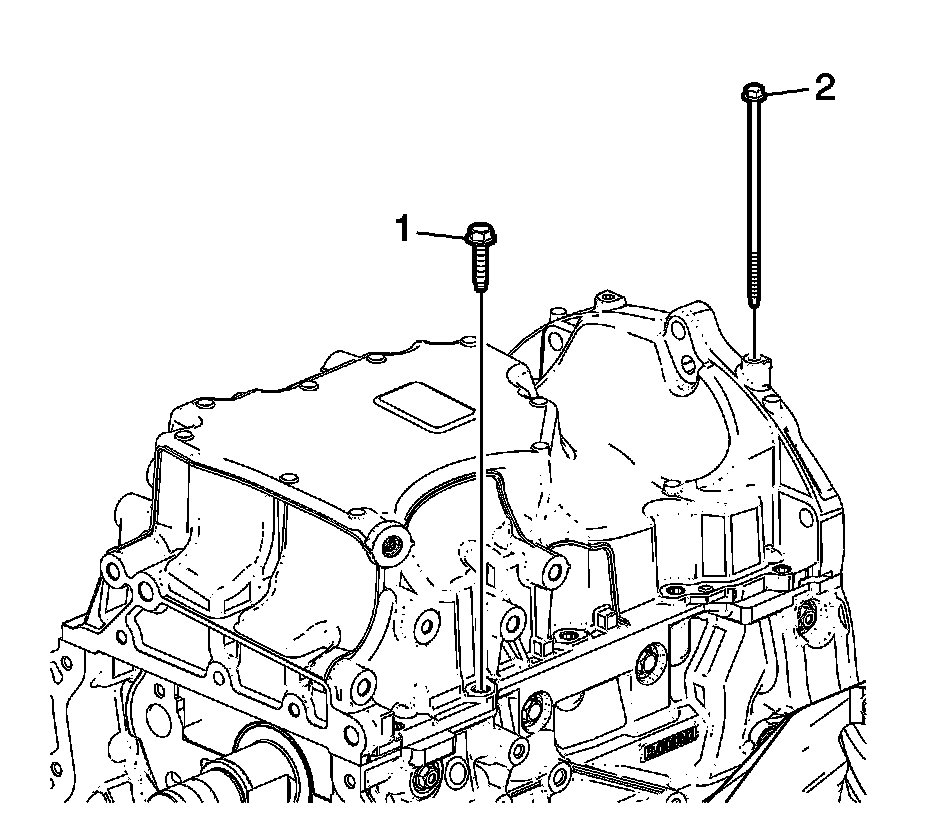

3. Loosely install the oil pan bolts (1) and (2).

Oil Pan Tightening Sequence:

Caution:
Refer to Fastener Caution Fastener Caution.

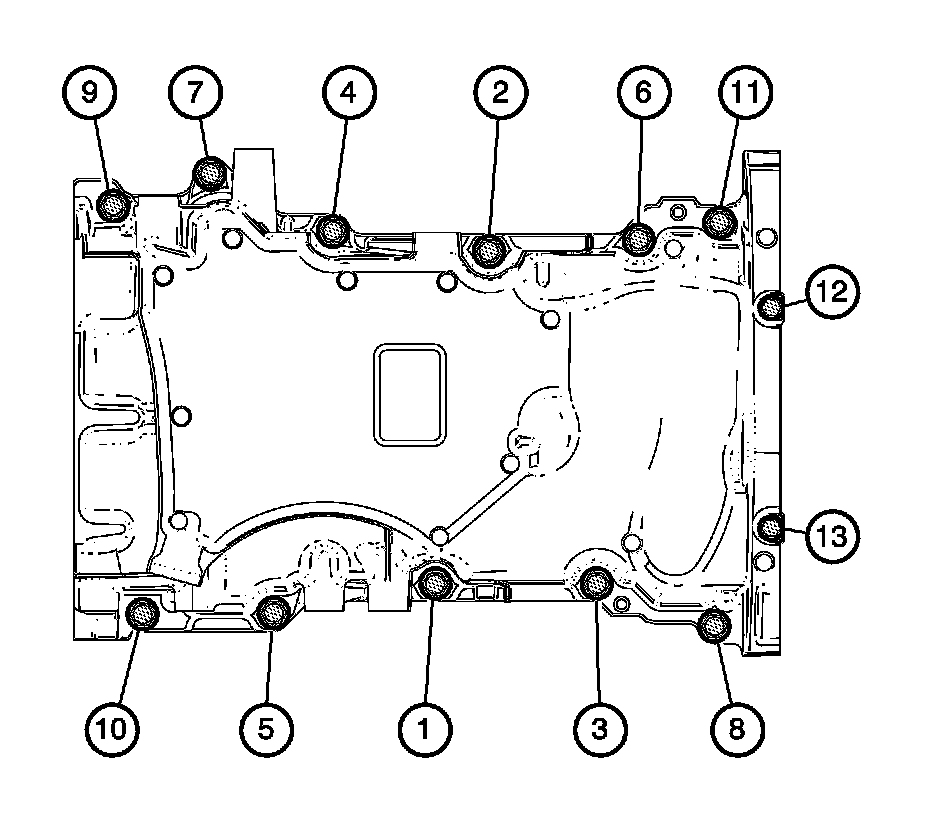

4. Tighten the oil pan bolts in sequence shown.

1. Tighten the 8 mm bolts (1-11) to 25 Nm (18 lb ft).

2. Tighten the 6 mm bolts (12, 13) to 10 Nm (89 lb in).
