Oil Level Indicator and Tube Removal (LF1, LFW or LFX)

Oil Level Indicator and Tube Removal (LF1, LFW or LFX)

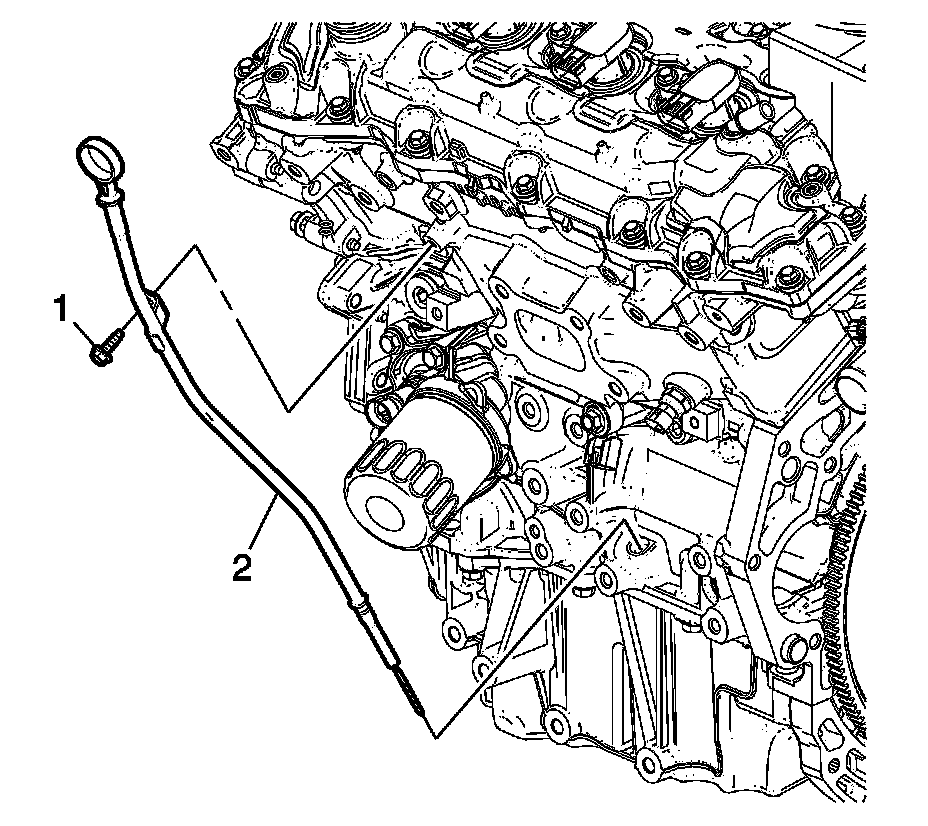

1. Remove the oil level indicator tube bracket bolt (1).

2. Remove the oil level indicator and tube (2) by sliding the tube out from the lower crankcase hole.





3. Remove and discard the O-ring from the oil level indicator tube if damaged.
