Intake Manifold Removal

Intake Manifold Removal

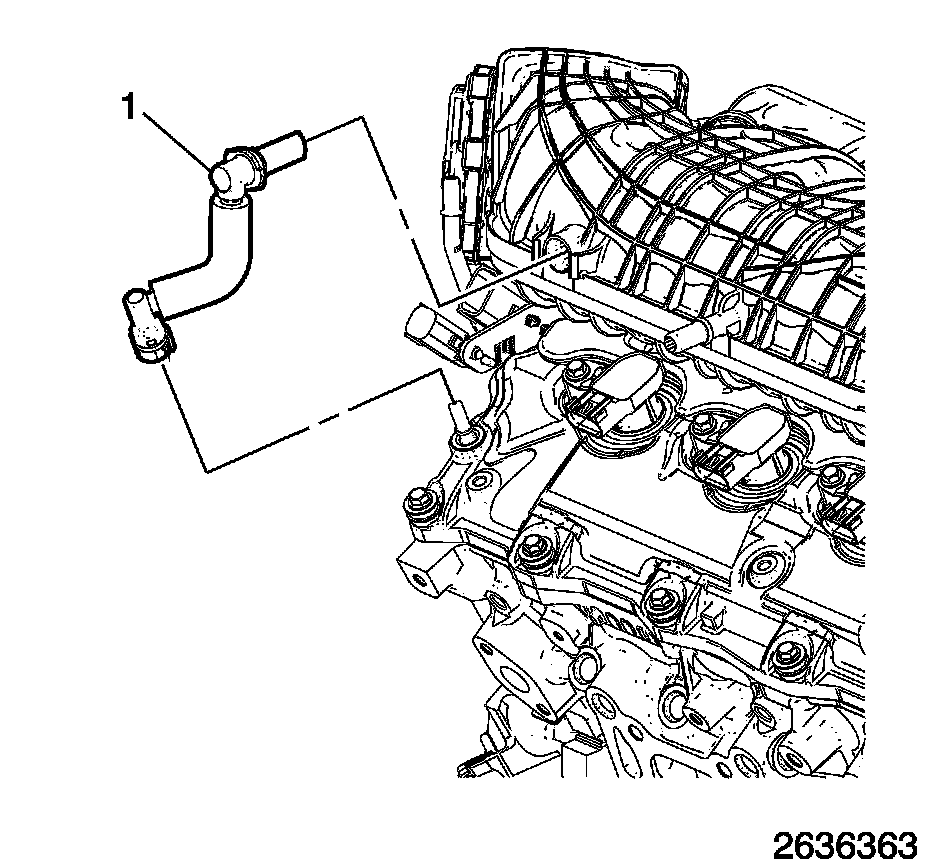

1. Disconnect and remove the positive crankcase ventilation (PCV) tube (1) from the intake manifold and right camshaft cover.

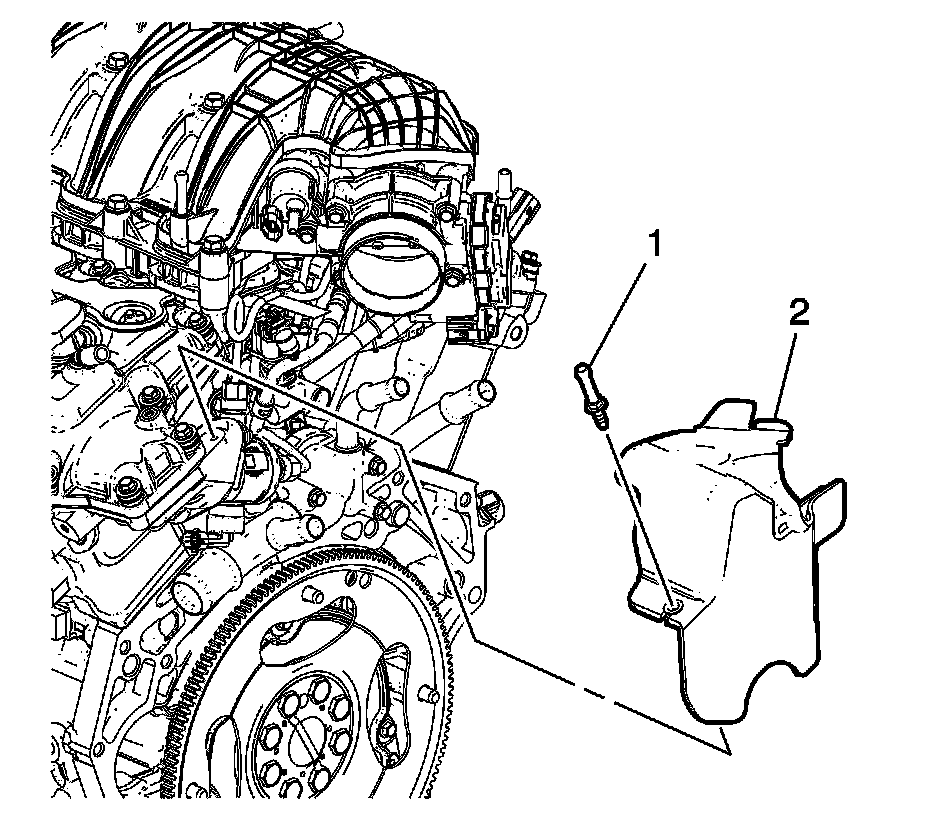

2. Remove the fuel pump cover stud (1).

3. Remove the fuel pump cover (2).

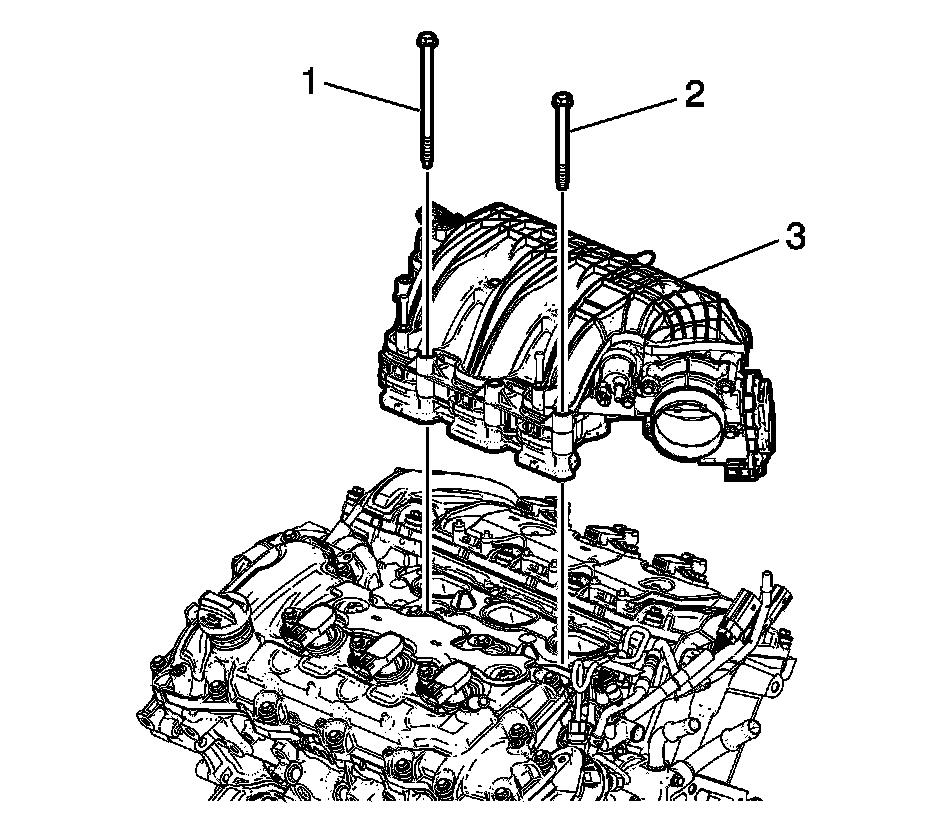

4. Remove the intake manifold bolts (1, 2).

5. Remove the intake manifold assembly (3).

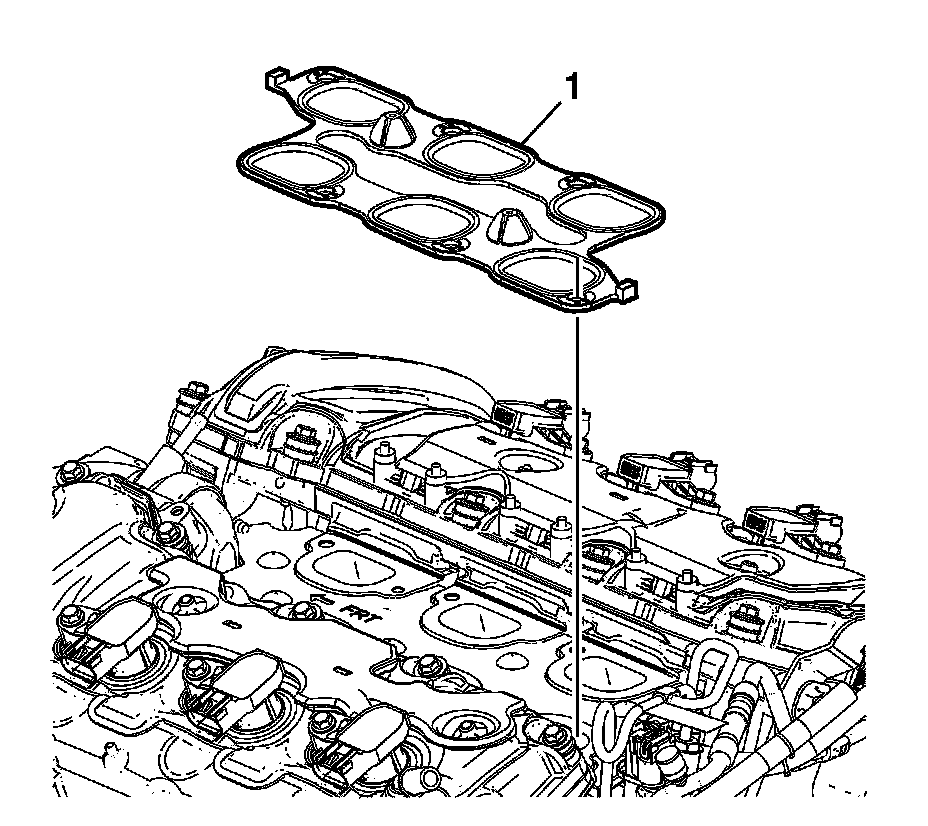

6. Remove and discard the intake manifold gasket (1).
