Engine Coolant Thermostat Housing Removal




Engine Coolant Thermostat Housing Removal

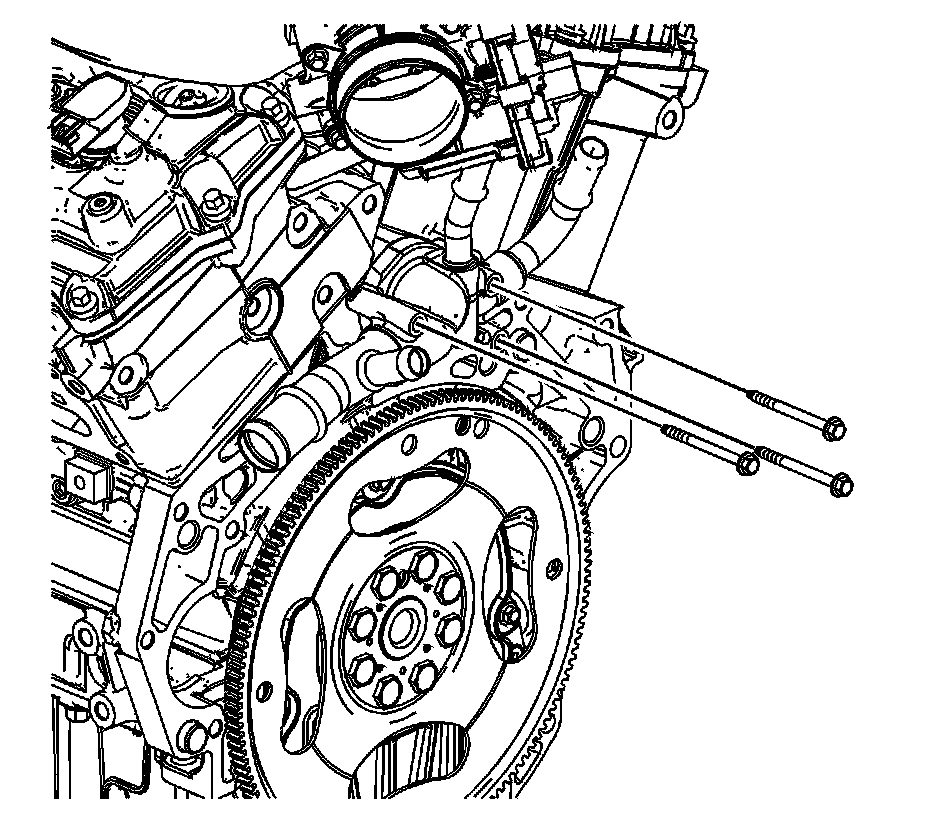

1. Remove the thermostat housing bolts.

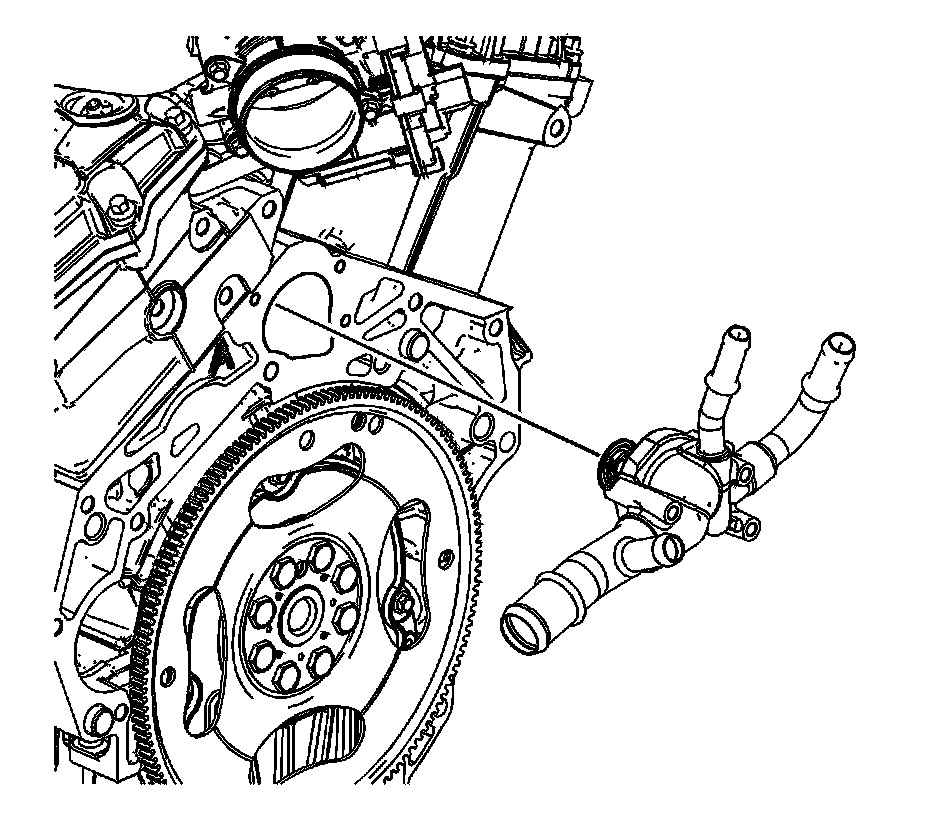

2. Remove the thermostat housing.





3. Remove and discard the thermostat housing gasket.
