Crankshaft Balancer Cleaning and Inspection

Crankshaft Balancer Cleaning and Inspection

Cleaning Procedure

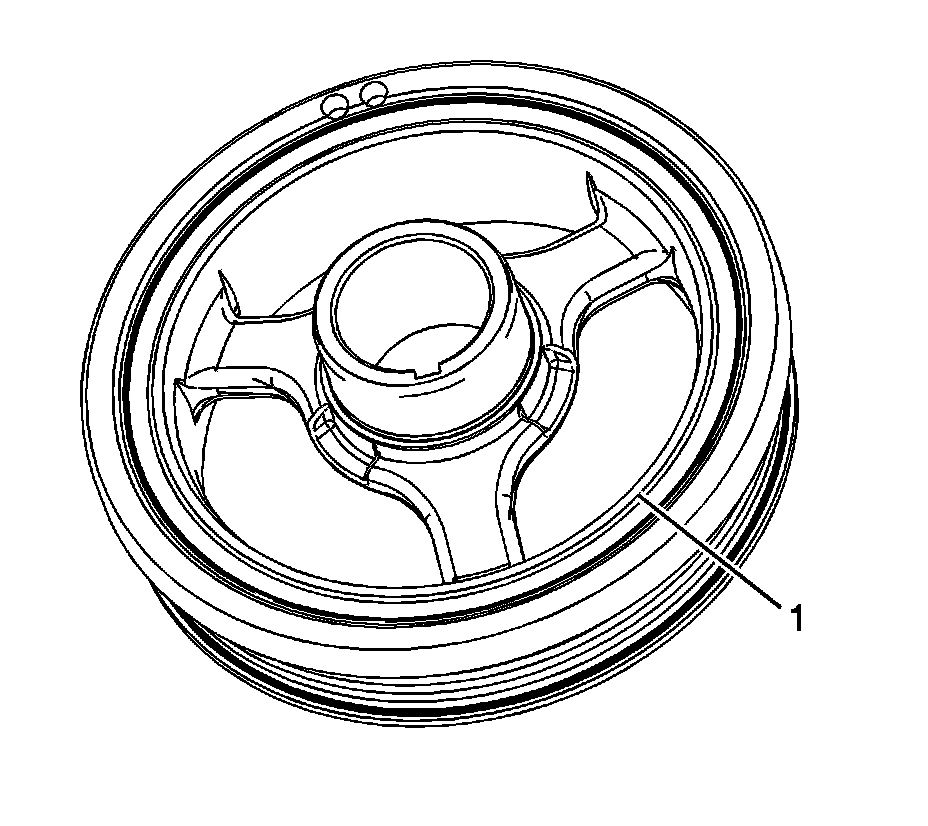

1. Clean the crankshaft balancer in solvent that is compatible with the rubber (1).

Warning:
Refer to Safety Glasses Warning Safety Glasses Warning.


2. Dry the crankshaft balancer with compressed air.

Inspection Procedure

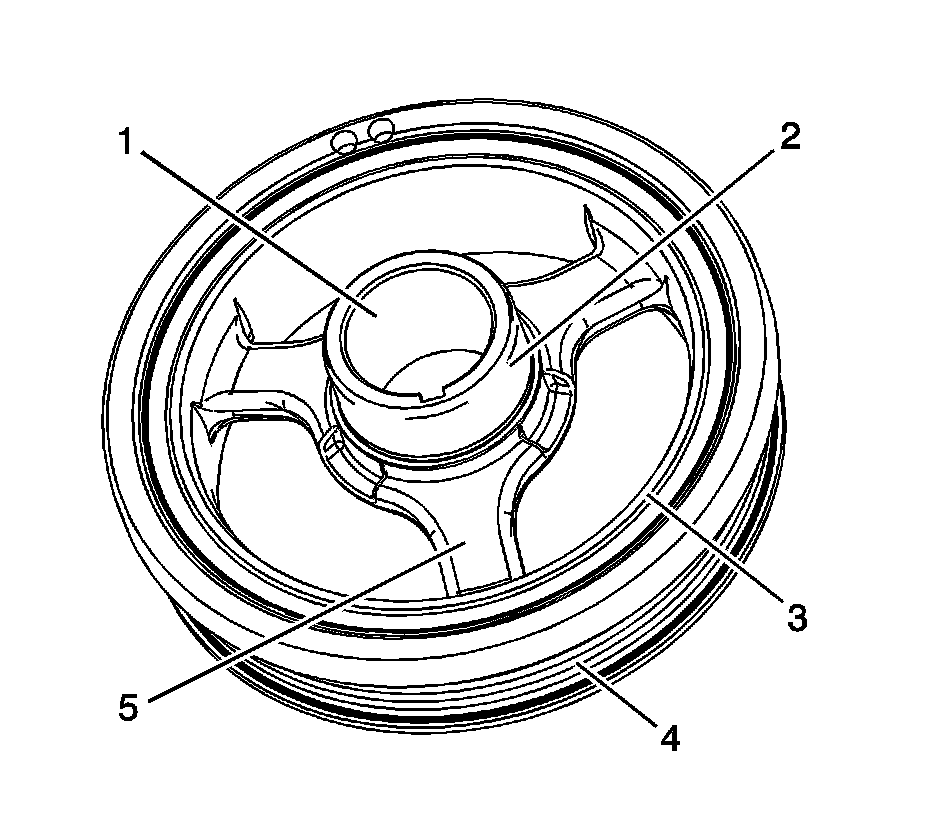

1. Inspect the crankshaft balancer for the following:

* Worn or damaged hub-to-crankshaft surface (1)

* Worn, grooved or damaged hub seal surface (2)

A crankshaft balancer hub seal surface with excessive scoring, grooves, rust or other damage must be replaced.

* Worn, chunking or deteriorated rubber between the hub and pulley (3)

* Damaged drive belt ribs (4)

* Damaged webs (5)

2. Repair or replace the crankshaft balancer as necessary.
