Camshaft Position Actuator Removal - Left Side Intake

Camshaft Position Actuator Removal - Left Side Intake





Caution:
Refer to Torque Reaction Against Timing Drive Chain Caution Service Precautions.

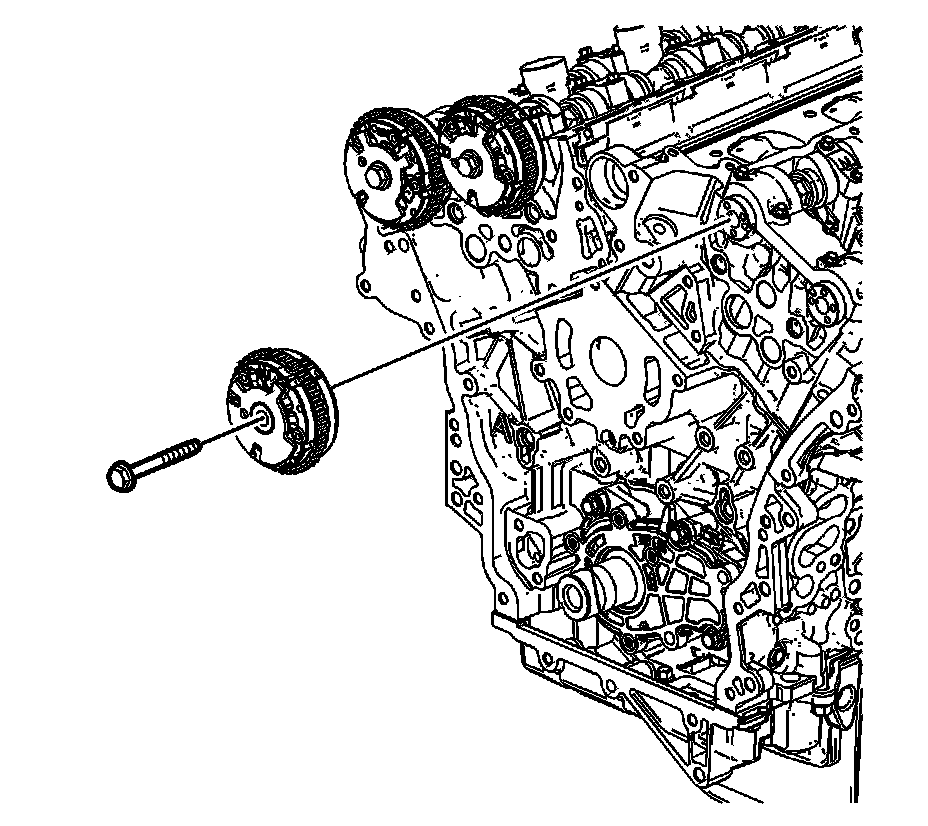

1. Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.

2. Remove the left intake camshaft position actuator bolt (1).

3. Remove the left intake camshaft position actuator (2).

4. Remove the camshaft thrust washer if applicable (3).
