Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal Replacement

Special Tools

EN-29184 - Oil Seal Installer

For equivalent regional tools, refer to Special Tools Special Tools.

Removal Procedure




1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.

2. Remove the crankshaft front oil seal using a suitable flat blade tool.

Installation Procedure





Note: Do not lubricate the crankshaft front oil seal or the crankshaft balancer sealing surfaces.

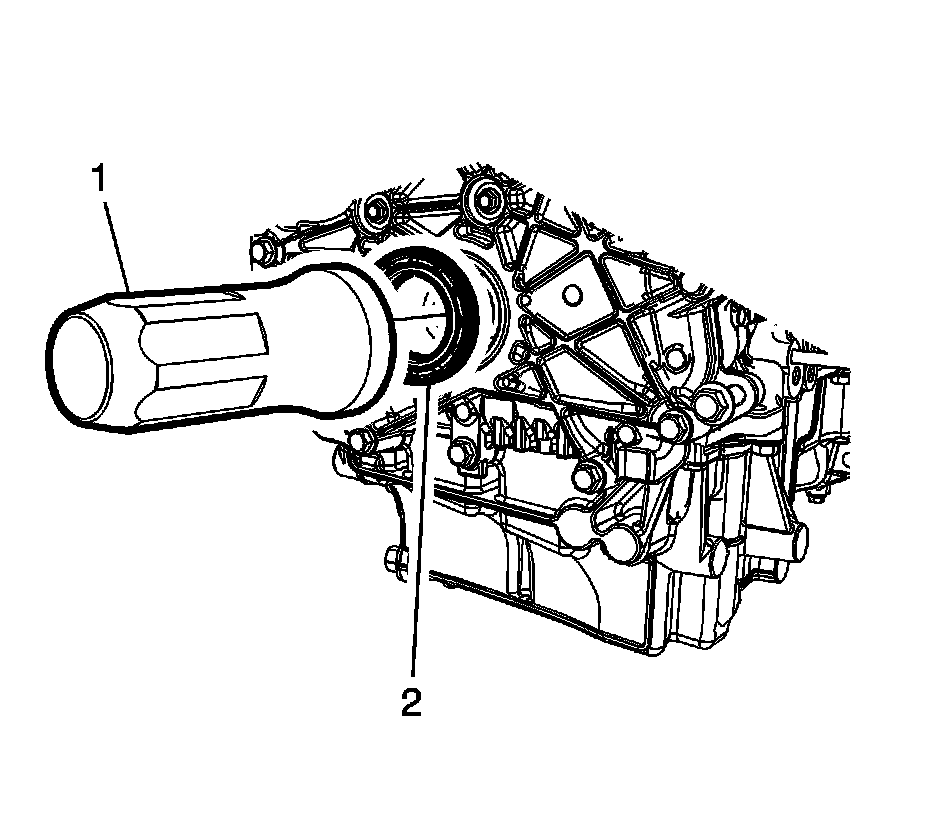

1. Use the EN-29184 - installer (1) or equivalent to install the crankshaft front oil seal (2).

2. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.
