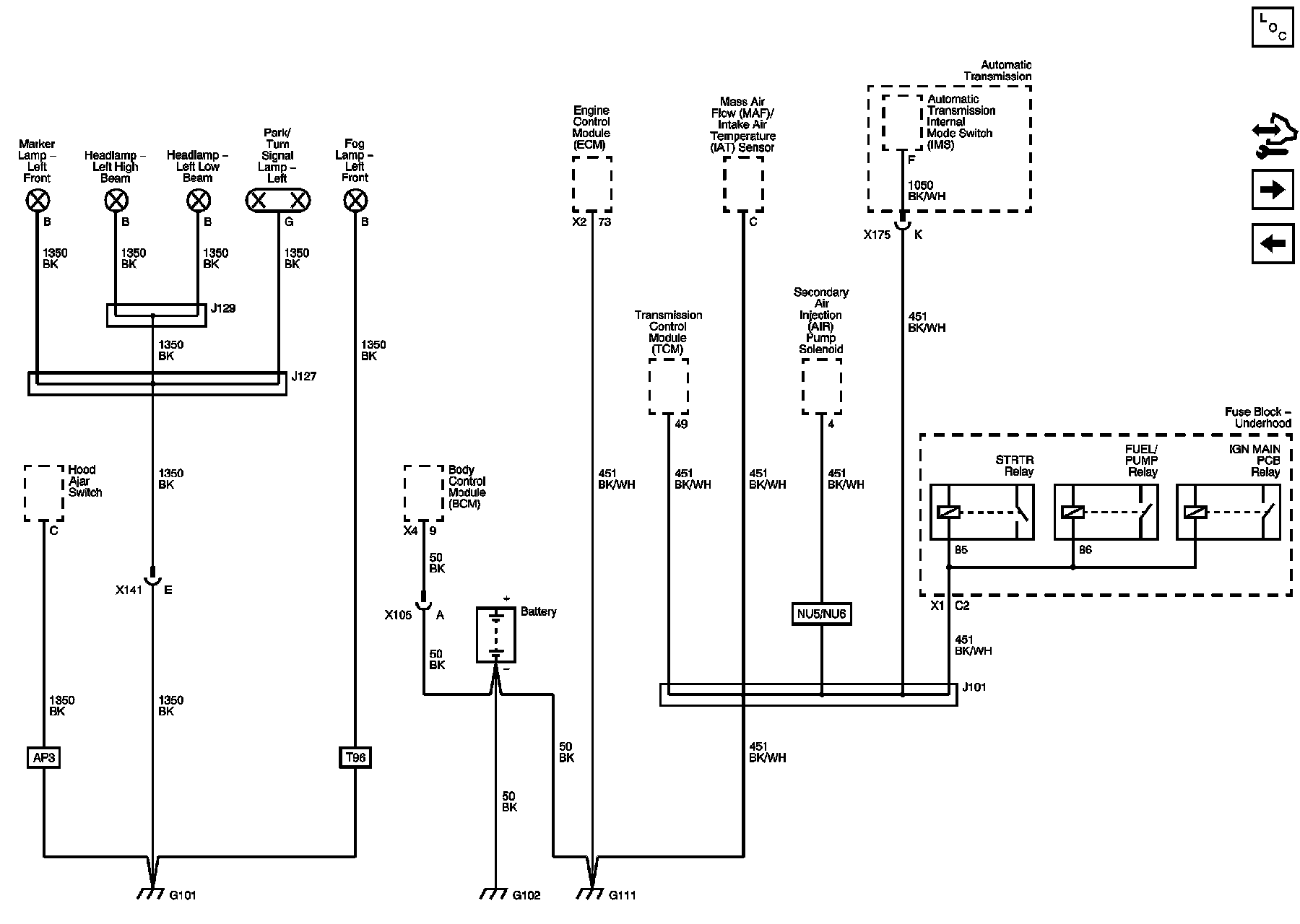

Home >> Chevrolet >> 2013 >> Impala V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G102
