Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

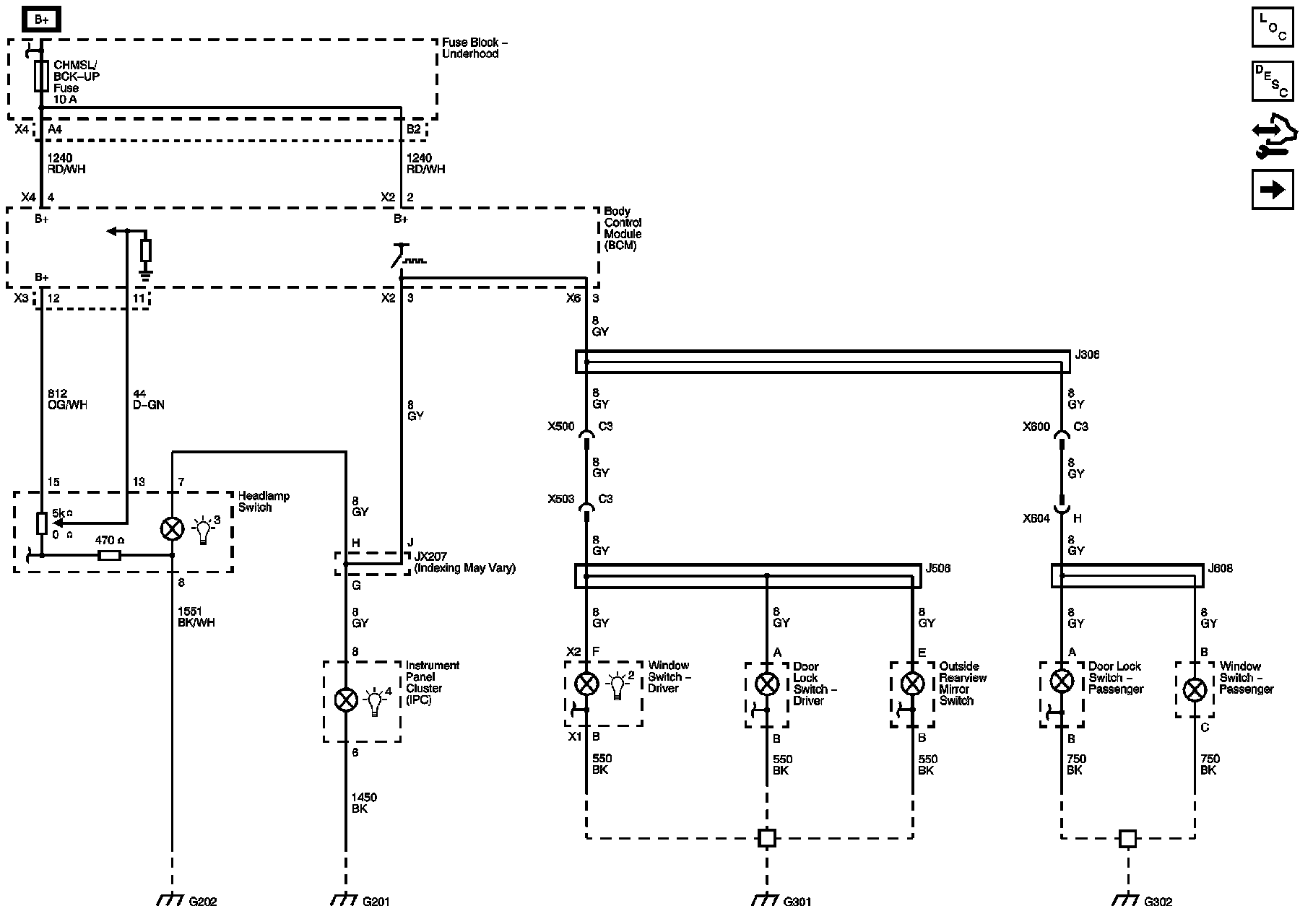

Doors, Headlamp Switch, Instrument Panel Cluster

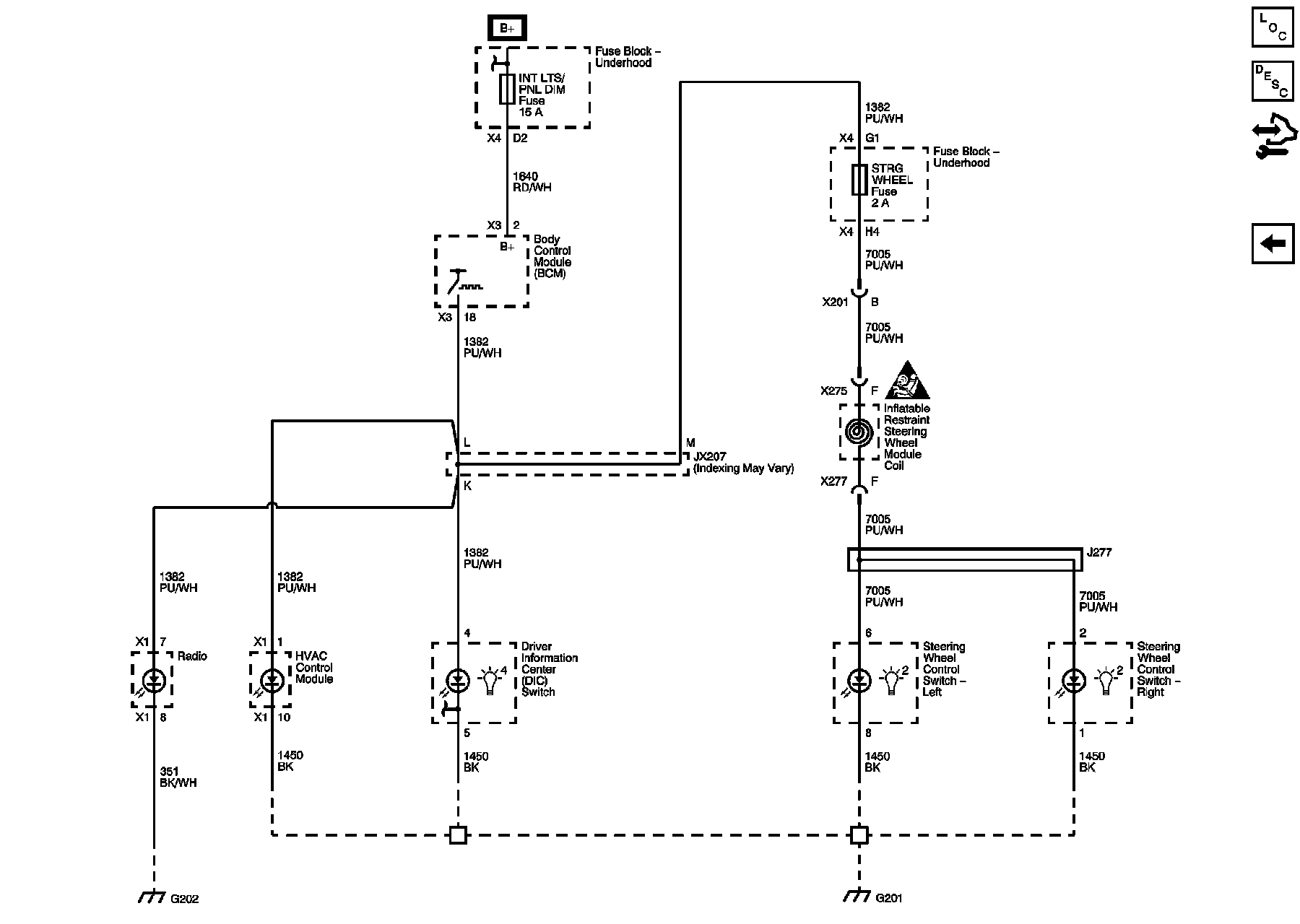

Driver Information Center, HVAC Control Module, Radio, Steering Wheel Controls
