X223

Passenger Compartment/Roof Component Views

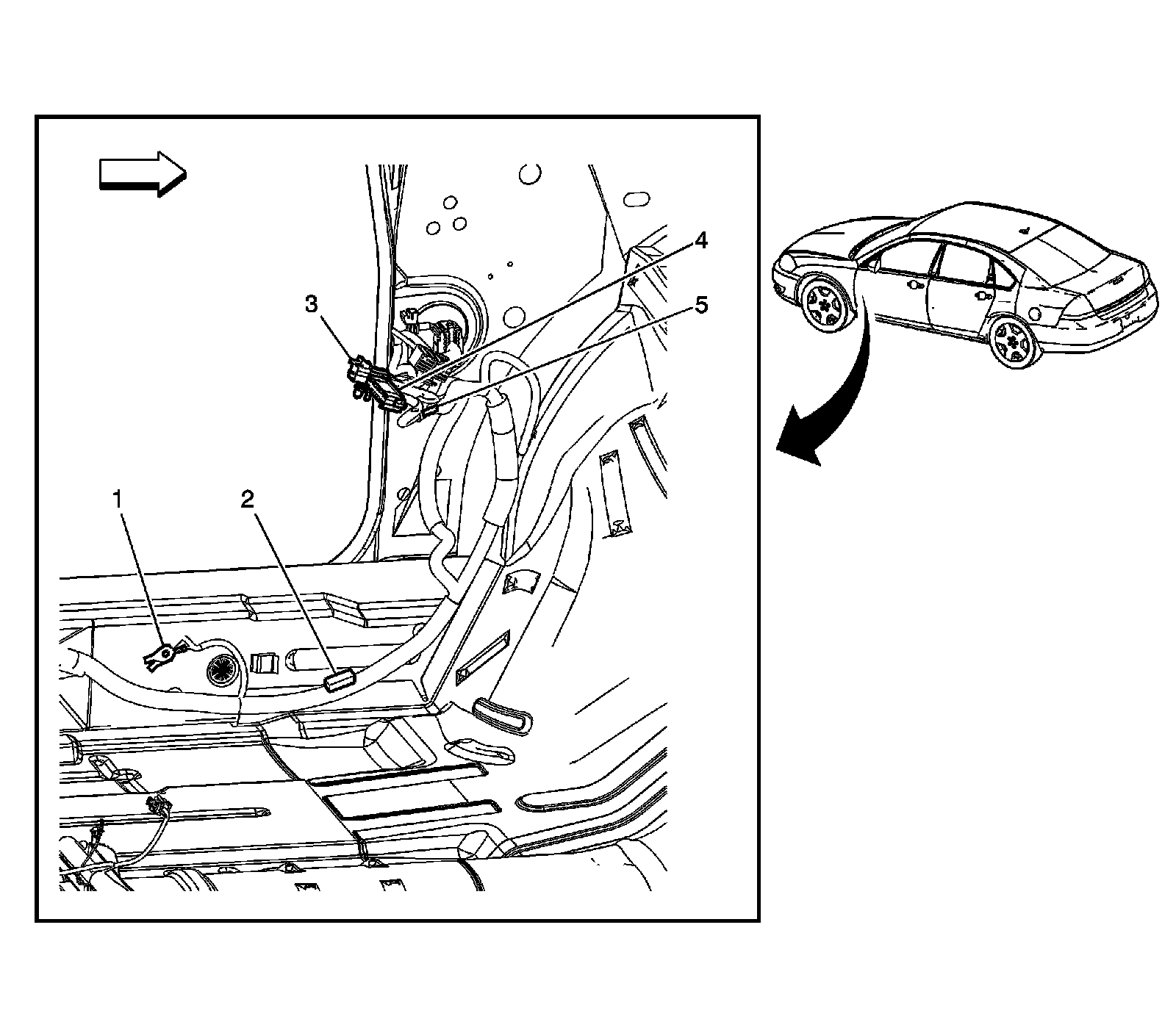

Left Front of the Passenger Compartment Components





1 - G301

2 - X223- Taped to Harness (9C1 or 9C3)

3 - X250

4 - X203

5 - Data Link Resistor- Taped to Harness (without UE1)
