X503




Inline Harness Connector End Views

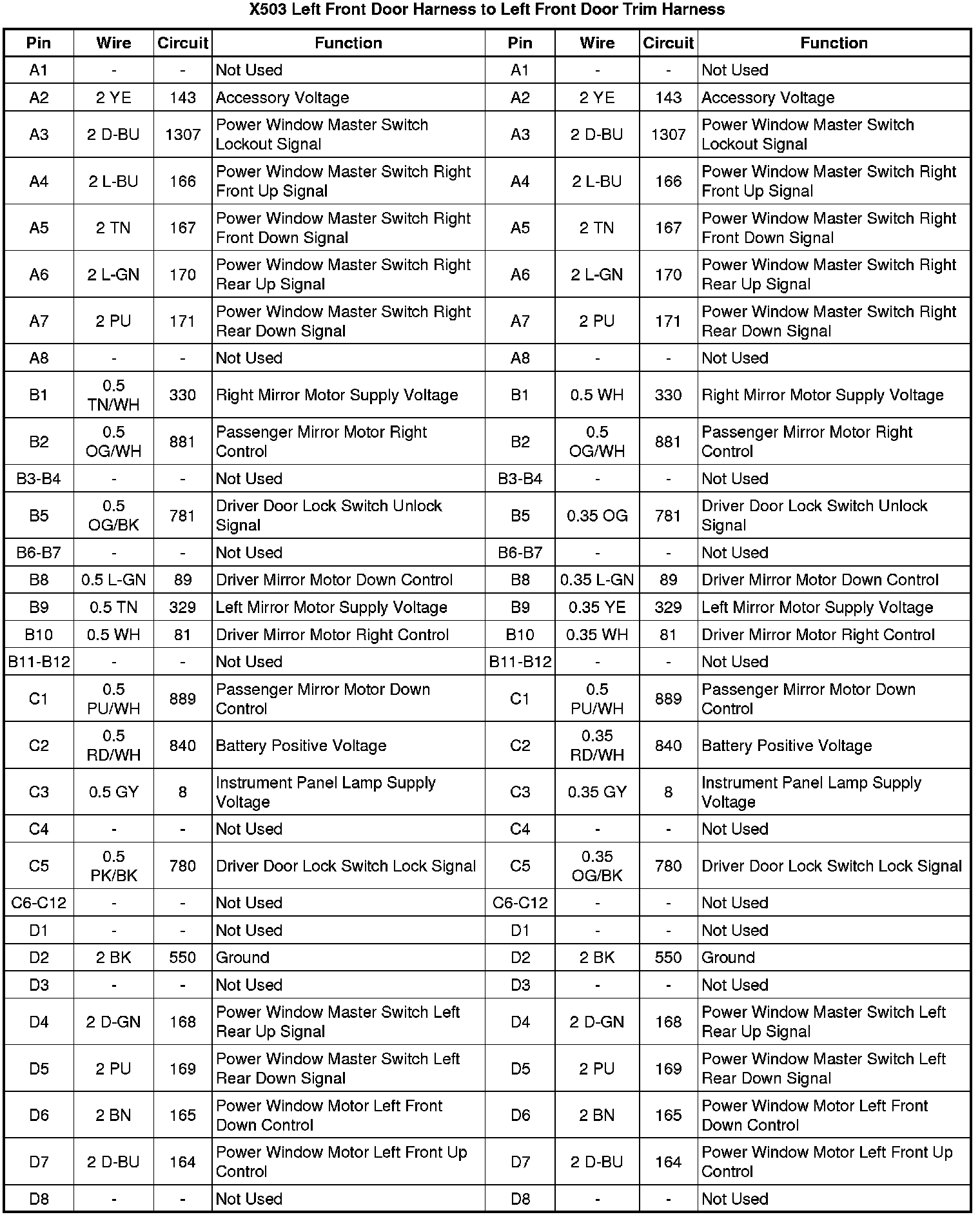

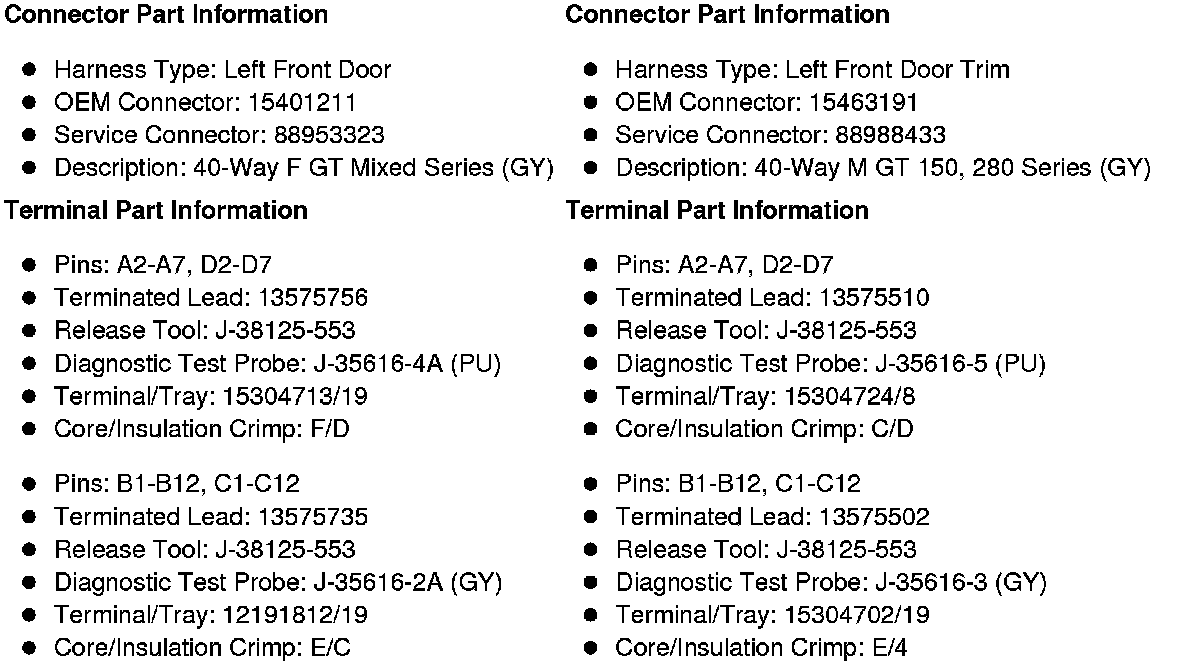

X503 Left Front Door Harness to Left Front Door Trim Harness
