Rear Fender Liner: Service and Repair

Rear Wheelhouse Panel Liner Replacement












2.Remove the rear wheel. Refer to Tire and Wheel Removal and Installation .

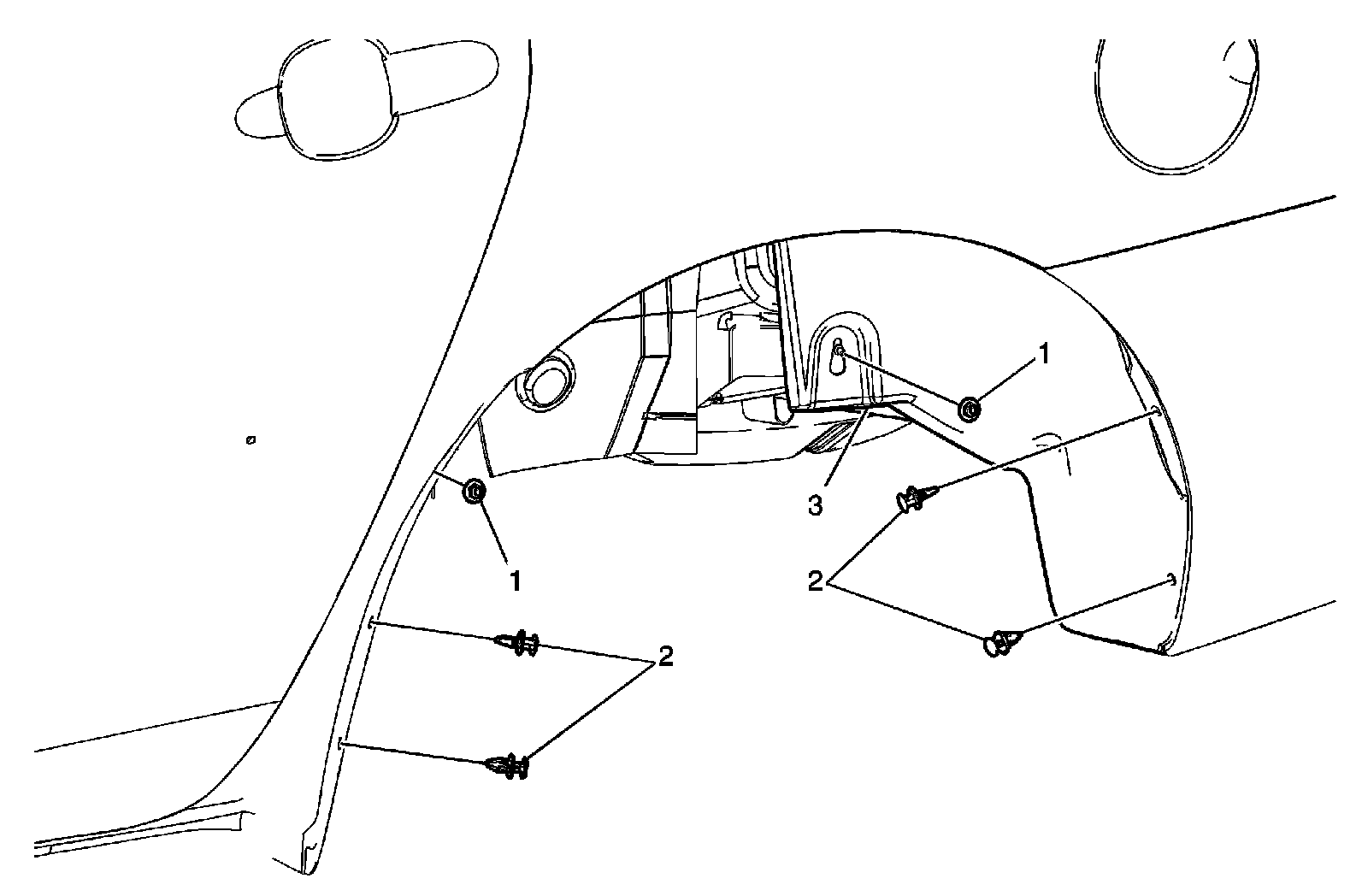

1Rear Wheelhouse Liner Nut (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

2Rear Wheelhouse Liner Retainer (Qty: 4)

3Rear Wheelhouse Liner
