Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement












2.Remove the rear energy absorber. Refer to Rear Energy Absorber Replacement Rear Energy Absorber Replacement .

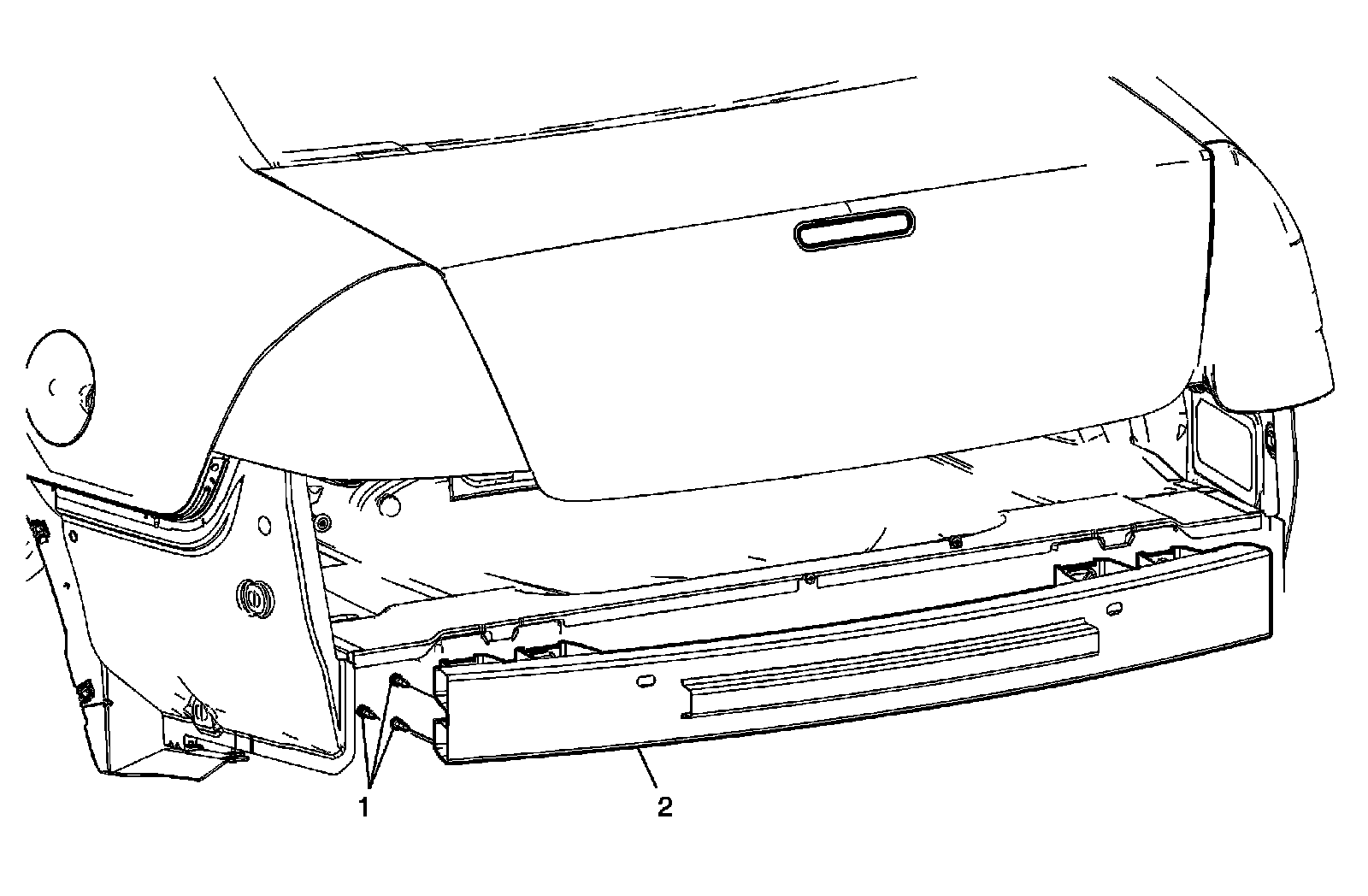

1Rear Impact Bar Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 25 N �m (18 lb ft)

2Rear Impact Bar
