Rear Bumper Cover / Fascia: Service and Repair

Rear Bumper Fascia Replacement












2.Remove the rear trim sill plate. Refer to Rear Compartment Sill Trim Plate Replacement .

3.Remove the license the lamp. Refer to Rear License Plate Lamp Replacement .

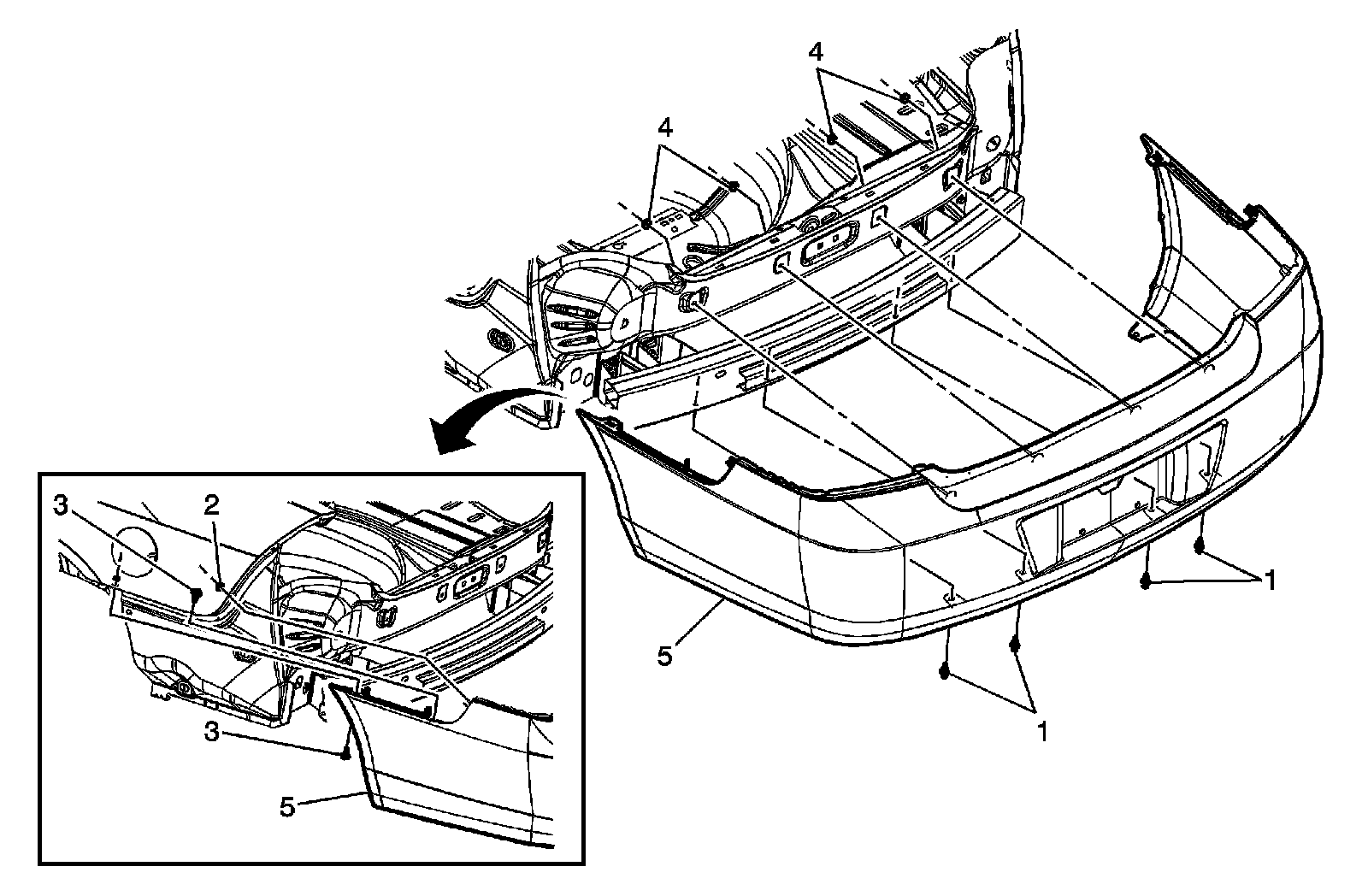

1Rear Fascia Retainer (Qty: 4)

2Rear Fascia Retainer (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

3Rear Fascia Bolt (Qty: 6)Tighten 10 N �m (89 lb in)

4Rear Fascia Top Center Nut (Qty: 4)Tighten 10 N �m (89 lb in)

5Rear Fascia
Tip Disconnect the electrical connector.
