Front Bumper Impact Bar Replacement






Front Bumper Impact Bar Replacement












2.Remove the energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement Front Bumper Fascia Energy Absorber Replacement .

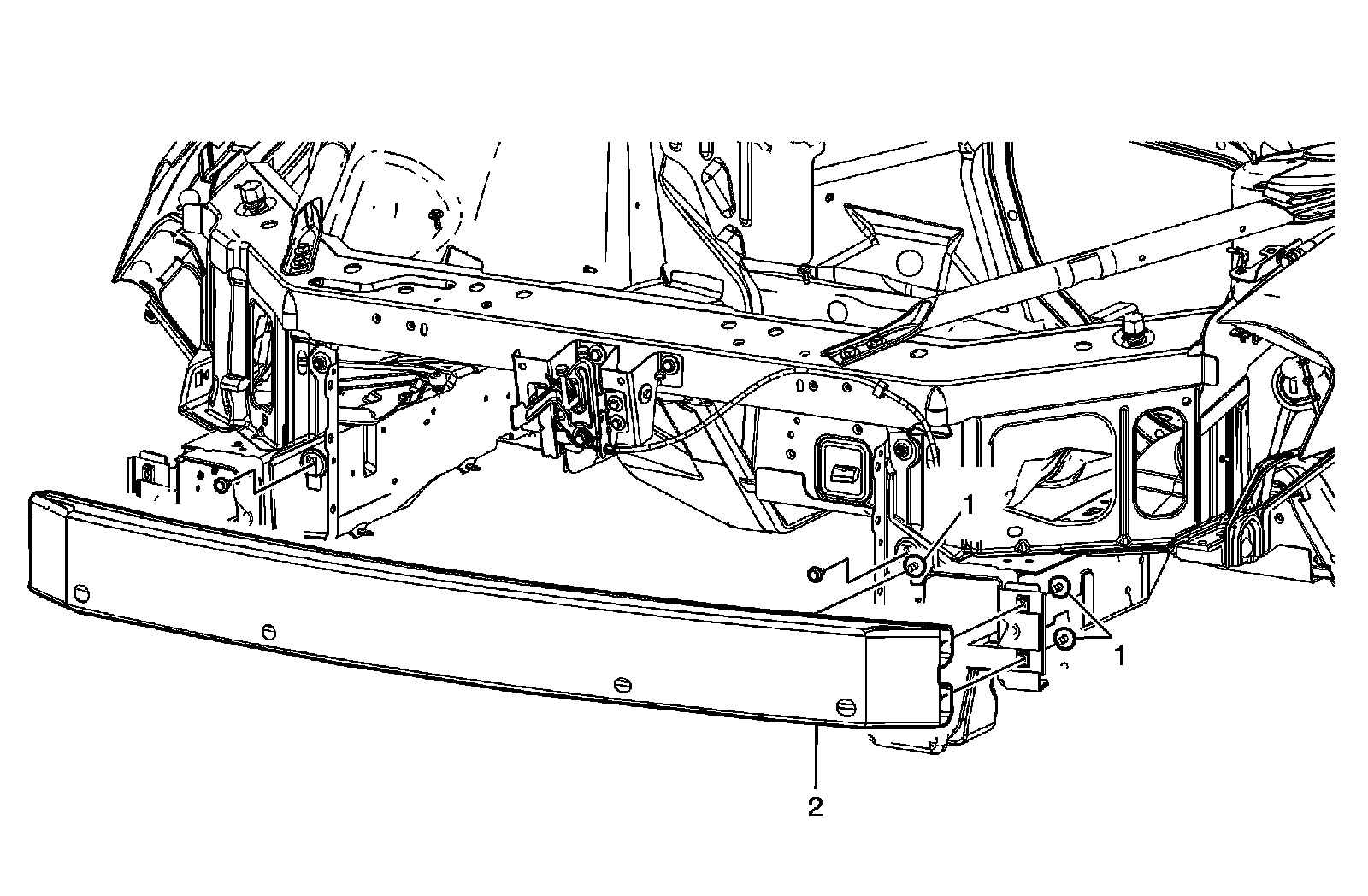

1Front Bumper Impact Bar Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 25 N �m (18 lb ft)

2Front Bumper Impact Bar
