Rear Compartment Lid Lock Cylinder Rod Replacement

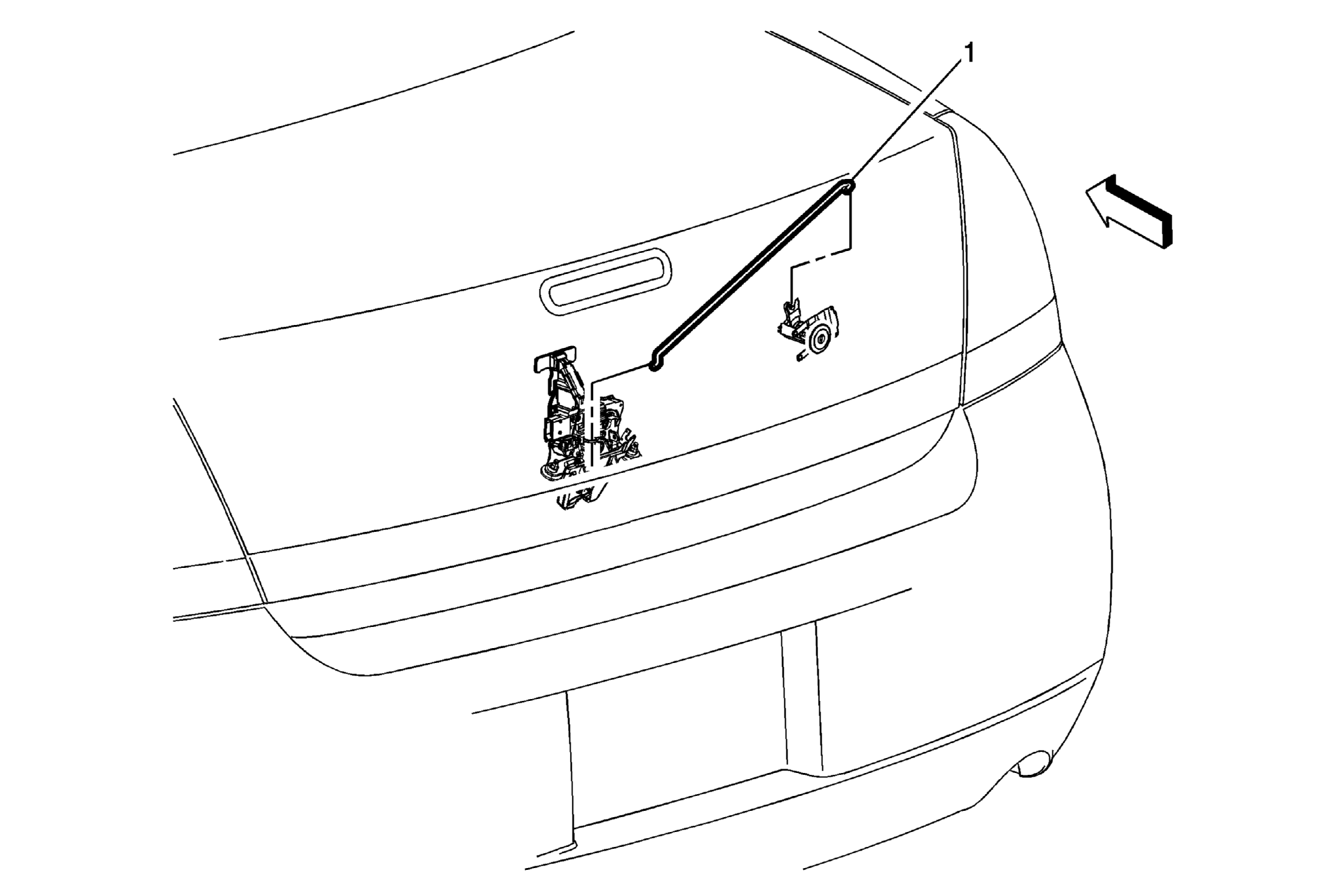

Fig 1: Rear Compartment Lid Lock Cylinder Rod
GM2739718Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Lock Cylinder Rod Replacement

Callout Component Name
1 Rear Compartment Lid Lock Cylinder Rod

Procedure

  1. Disconnect the lock cylinder rod from the rear compartment latch and the lock cylinder.
  2. Inspect the lock cylinder rod attachment points.
  3. Ensure the lock cylinder rod is installed properly.
  4. Inspect the lock cylinder for proper operation by closing and opening the rear compartment.
