Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

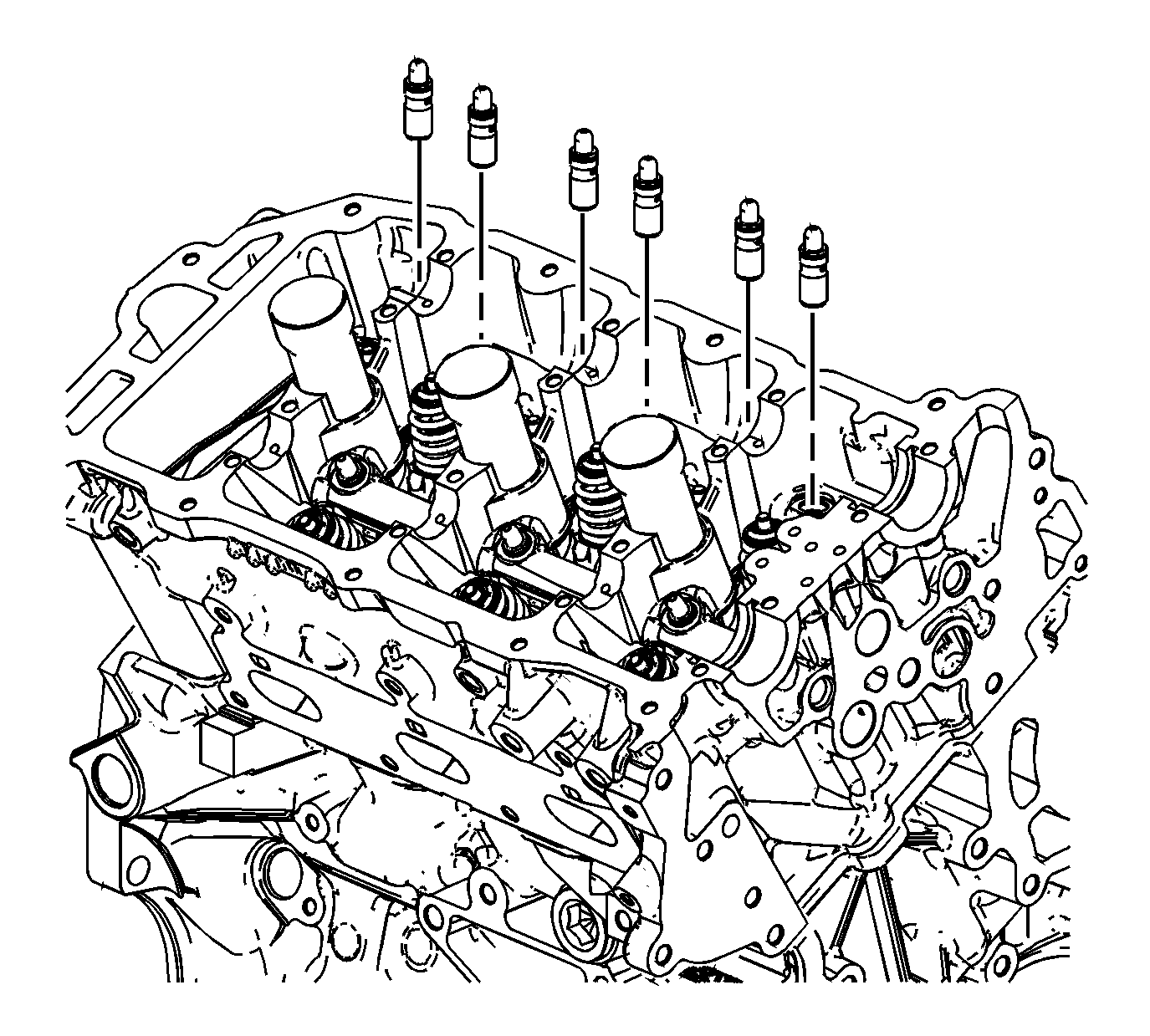

    Fig 1: Identifying Stationary Hydraulic Lash Adjuster (SHLA)
    GM946248Courtesy of GENERAL MOTORS CORP.
  1. Install the lifters.
  2. Install the rocker arms. Refer to Valve Rocker Arm Replacement - Left Side .
  3. Install the camshafts. Refer to Camshaft Replacement - Left Side .
