Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

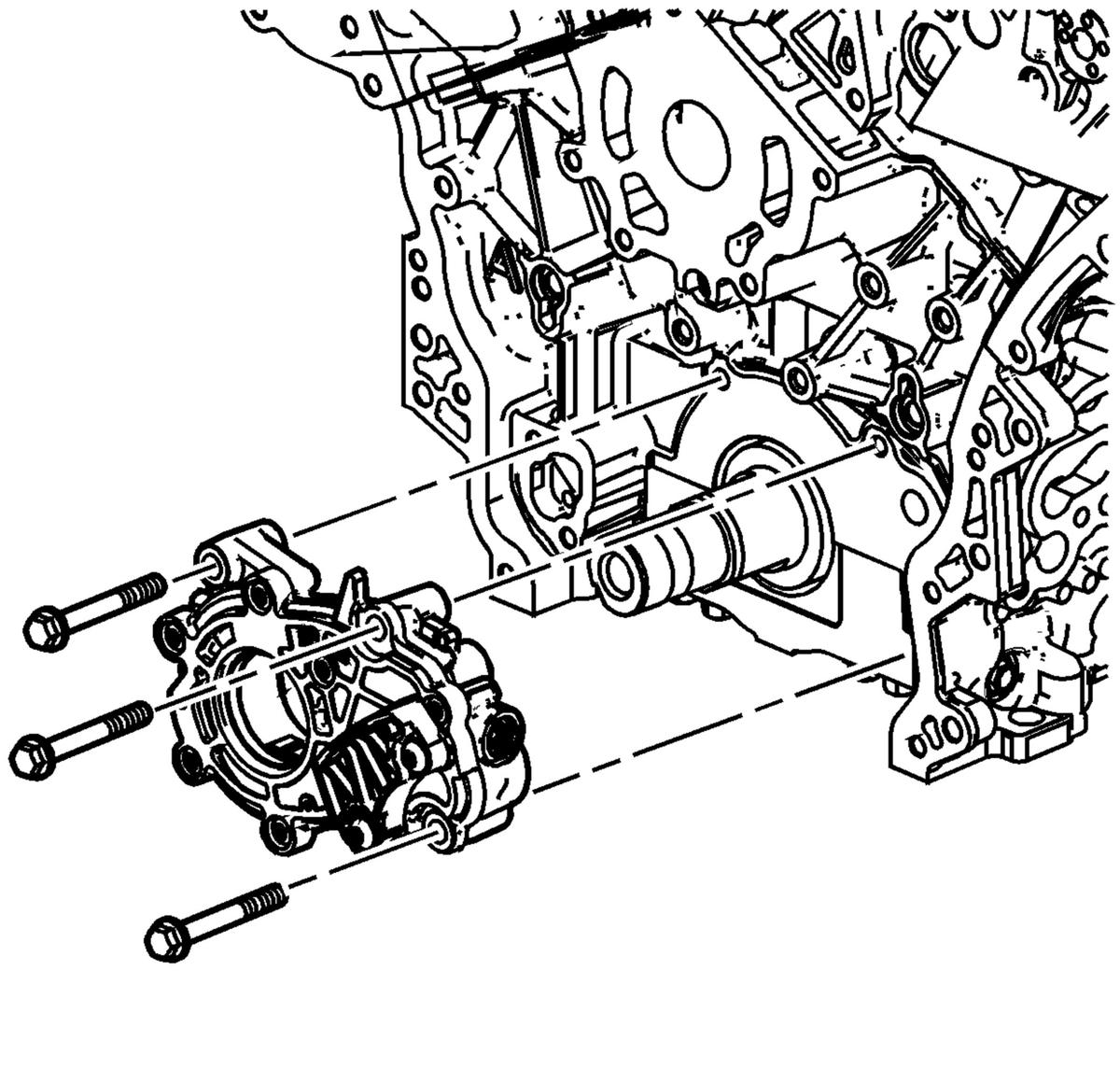

    Fig 1: View Of Oil Pump & Mounting Bolts
    GM902821Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pump and bolts. Refer to Oil Pump Installation
  2. Install the crankshaft sprocket. Refer to Crankshaft Sprocket Installation .
  3. Install the primary timing chain. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .
