Engine Oil Pressure Sensor and/or Switch Replacement (LF1)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

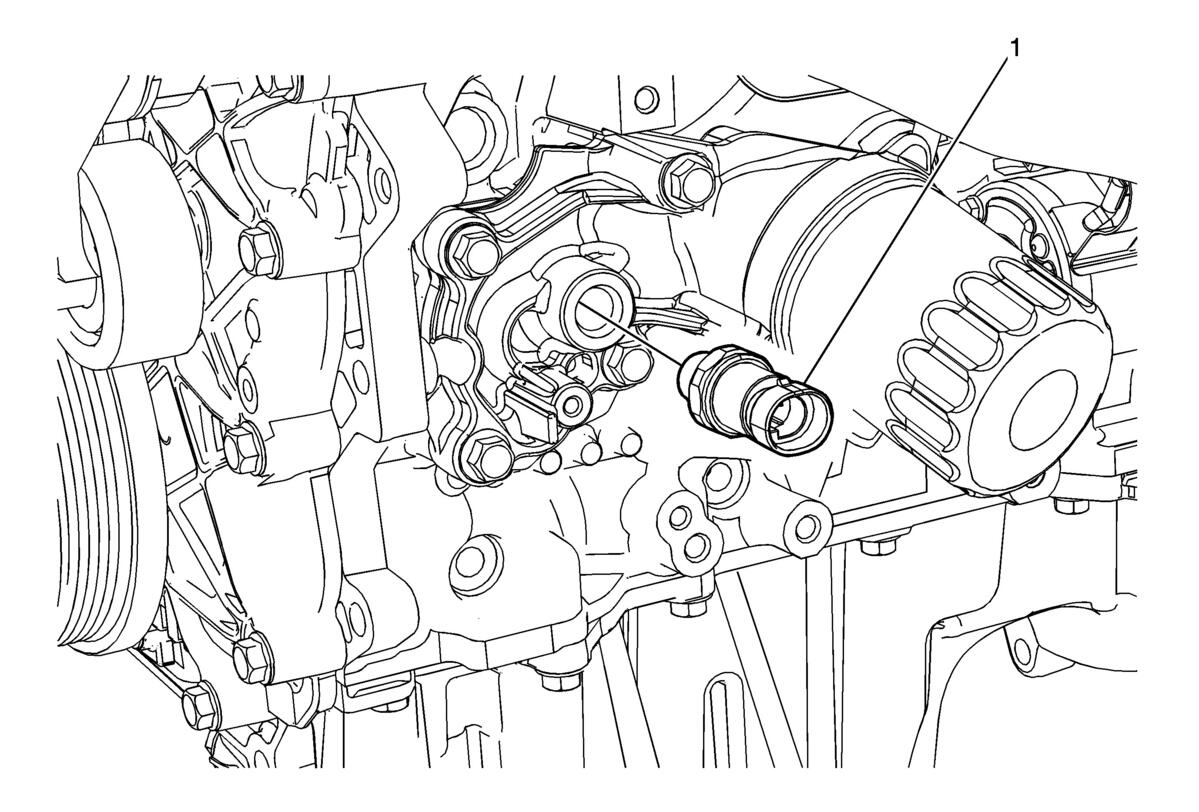

Fig 1: Identifying Engine Oil Pressure Sensor And/Or Switch (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure Sensor and/or Switch CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the oil pressure sensor electrical connector. Transfer components as necessary. Tighten: 20 N.m (15 lb ft) Special Tools: EN-41712: Oil Pressure Switch Socket For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the generator. Refer to Generator Replacement (LF1) or Generator Replacement (LAU) .

Engine Oil Pressure Sensor and/or Switch

CAUTION: Refer to Component Fastener Tightening Caution .

Procedure

Disconnect the oil pressure sensor electrical connector.
Transfer components as necessary.

Tighten: 20 N.m (15 lb ft)

Special Tools:
EN-41712: Oil Pressure Switch Socket
For equivalent regional tools, refer to Special Tools .
