Secondary Air Injection Pump Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

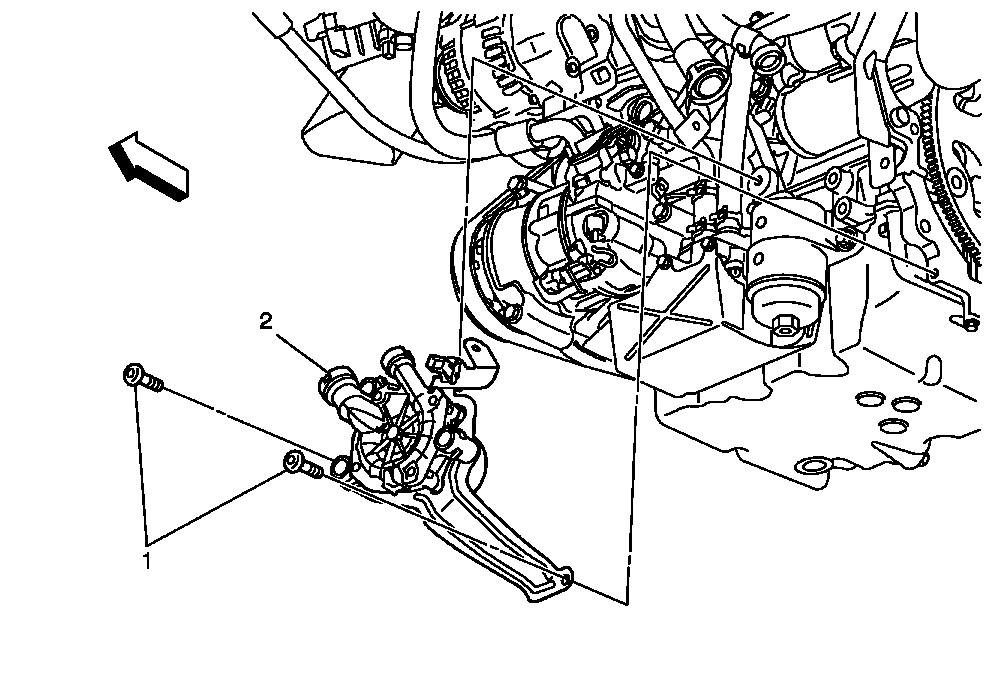

Fig 1: Identifying Secondary Air Injection Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Secondary Air Injection Pump Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Disconnect both quick connectors. Disconnect the electrical connector. Tighten: 17 N.m (13 lb ft)
2	Secondary Air Injection Pump

Callout

Component Name

Preliminary Procedures

Turn the ignition OFF.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Secondary Air Injection Pump Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure

Disconnect both quick connectors.
Disconnect the electrical connector.

Tighten: 17 N.m (13 lb ft)

Secondary Air Injection Pump
