Charge Air Cooler Inlet Duct Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

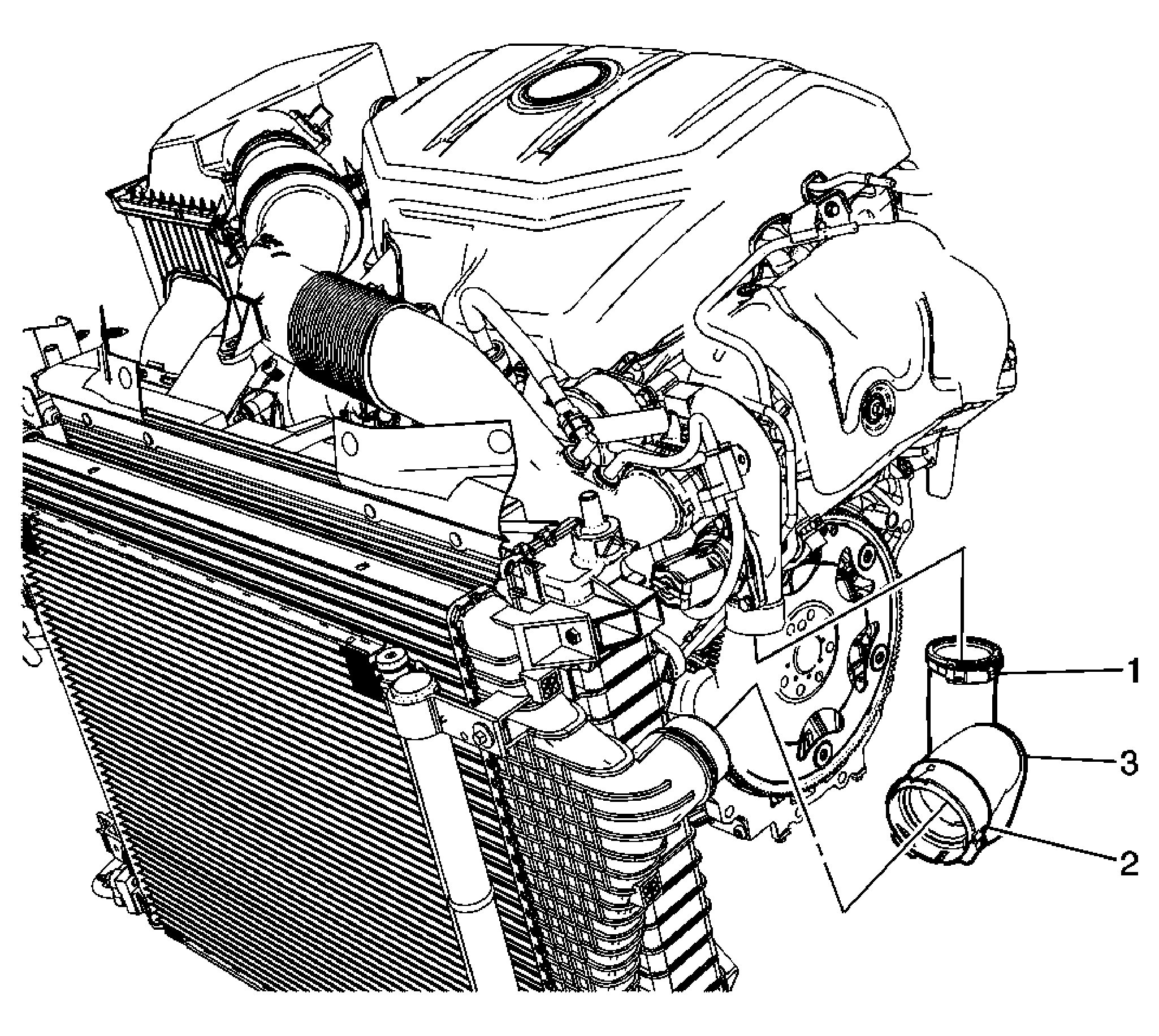

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Charge Air Cooler Inlet Duct Clamp
CAUTION:
Refer to Fastener Caution
Tighten: 4 N.m (35 lb in) |
| 2 | Charge Air Cooler Inlet Duct Spring Clamp |
| 3 | Charge Air Cooler Inlet Duct |
